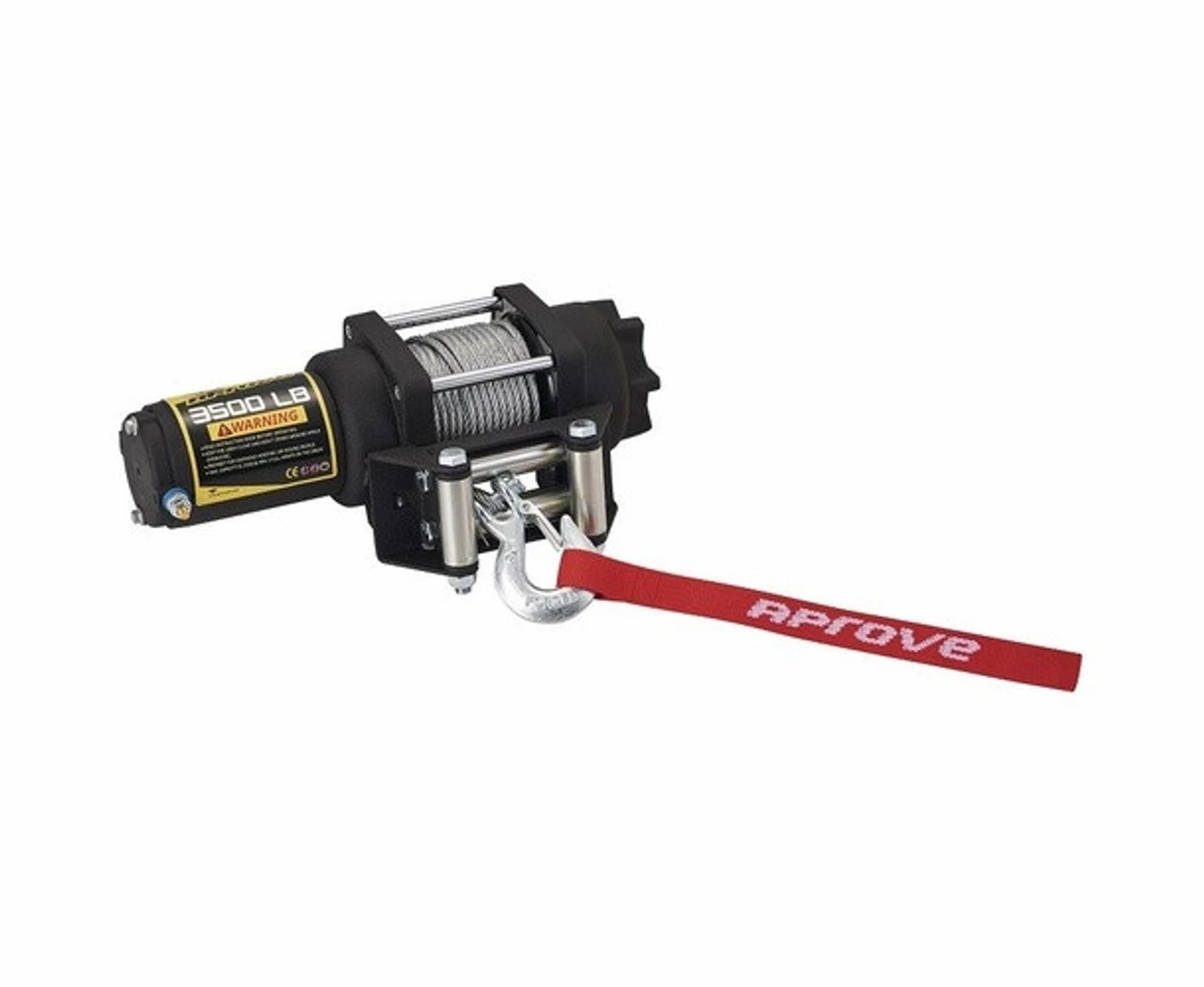

Polaris Ranger 3500 Lb. Winch By Aprove

Winch Features:

• Rated line pull: 3500lbs. (1589kgs) single-line
• Motor: 12V DC, 1.1hp (825w) permanent magnet

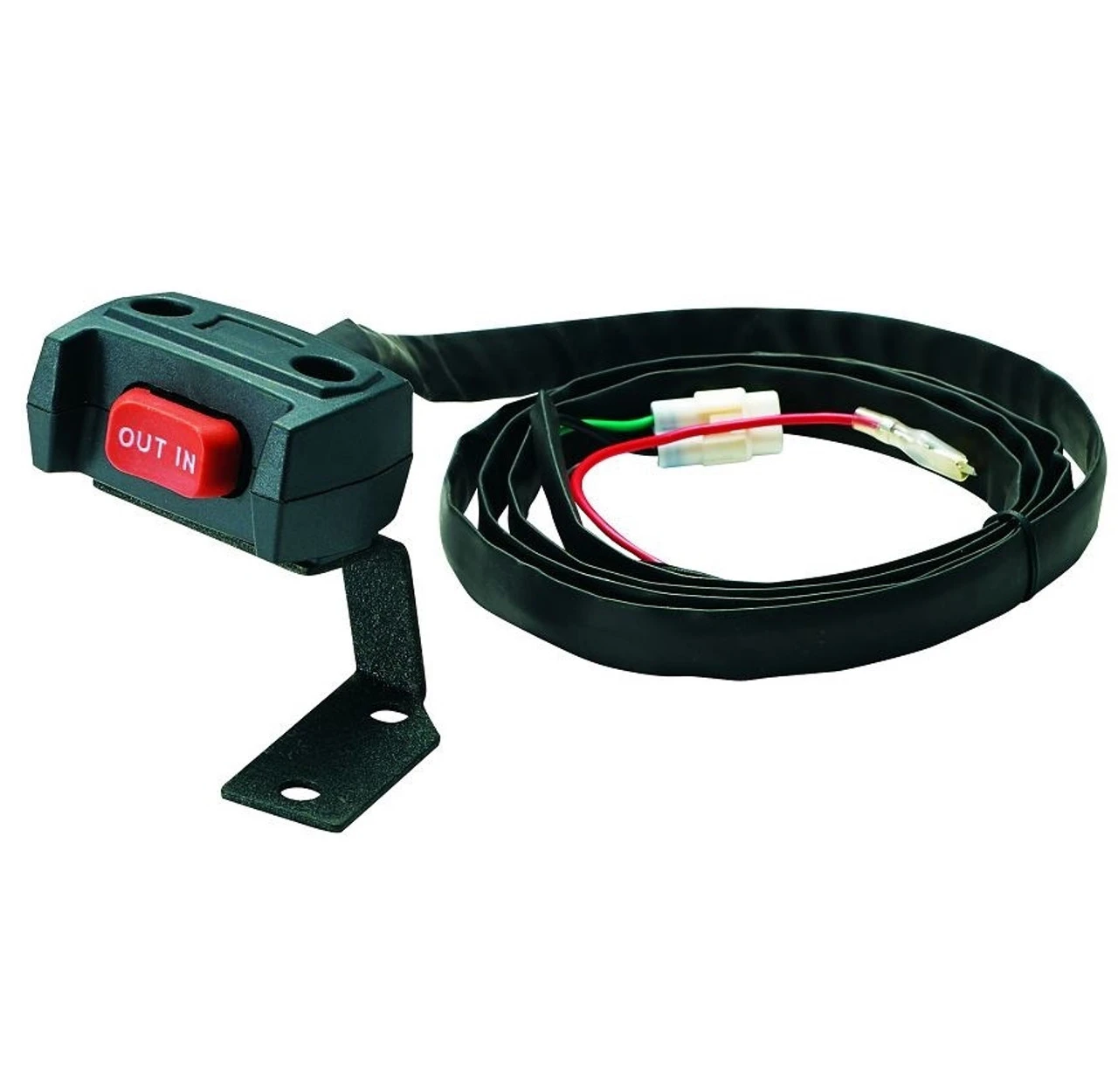

• Control: handlebar switch
• Gear train: 3-stage planetary
• Gear ratio: 136:1
• Clutch (free-spooling): cam actuated
• Brake: dynamic. mechanical brake is available
• Drum diameter / length: 2.0″ / 2.9″

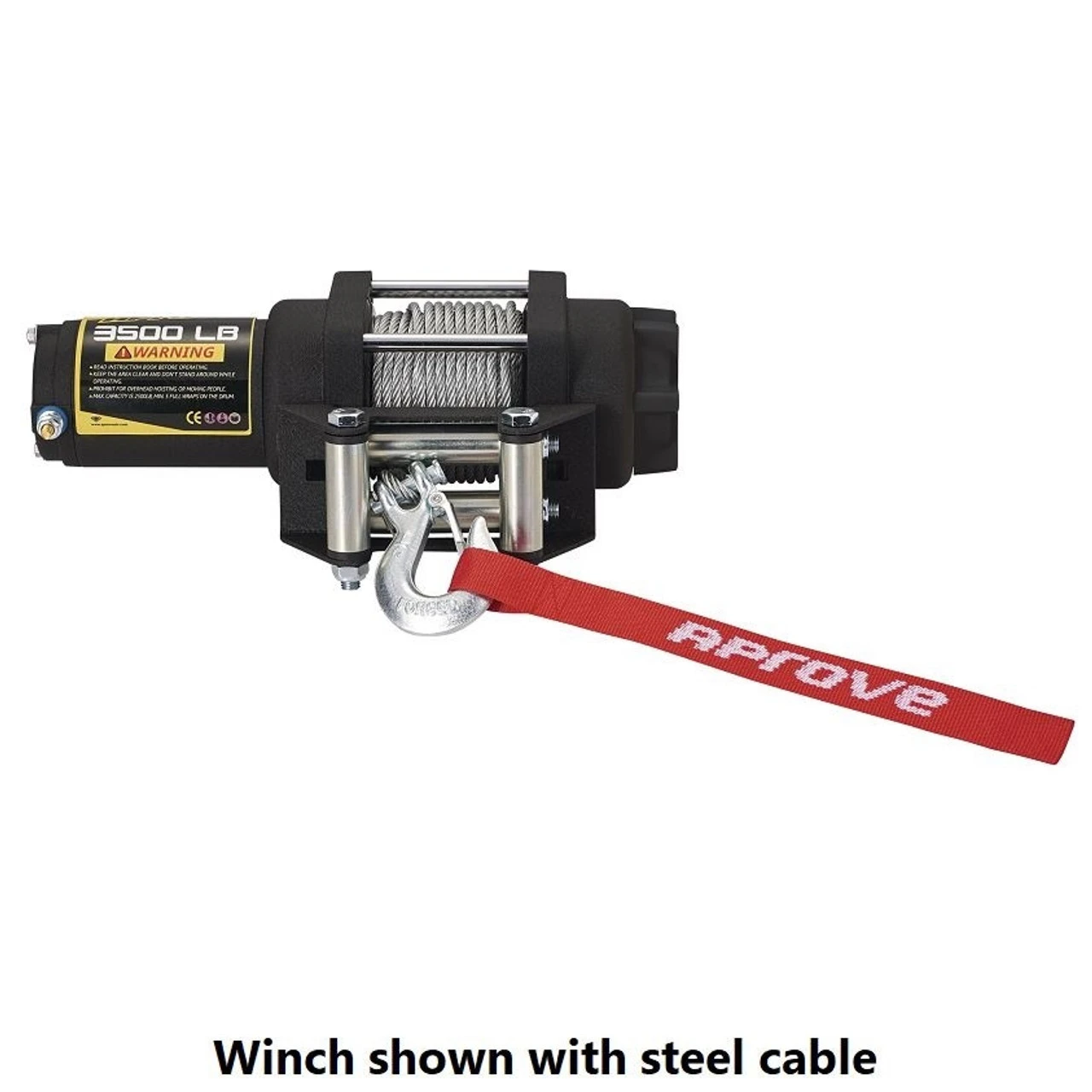

• Steel Cable: 4.8mm x 15.24M

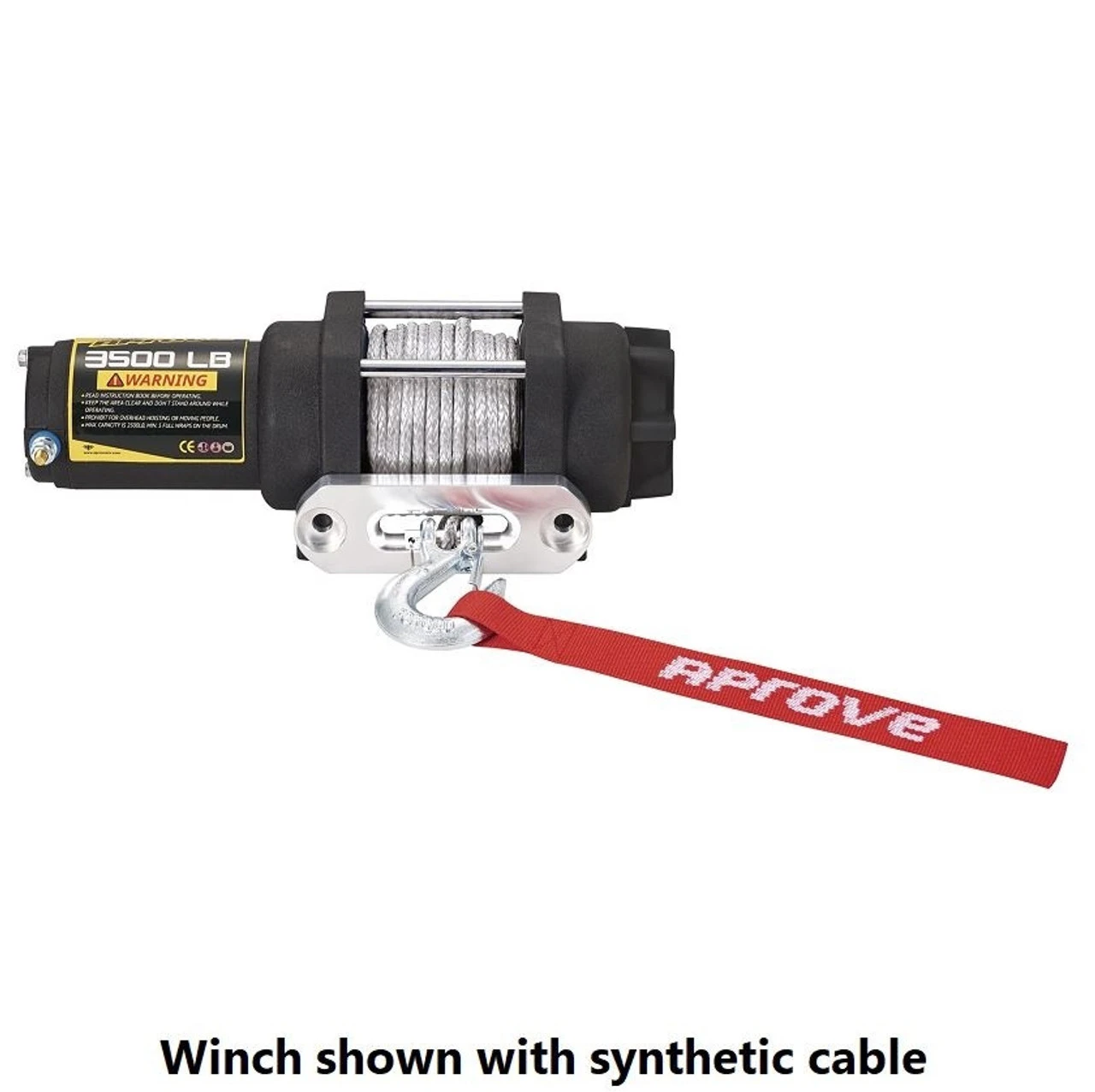

• Synthetic Cable: 4.8mm x 15.24M
• Fair lead: 4-way roller fair lead (for steel cable)
• Fair lead: aluminum Hawse fair lead (for synthetic cable)
• Recommended battery: 12 amp / hour minimum for winching
• Battery leads: 6 gauge
• Finish: black
• Low noise level < 80 dB
• IP67 waterproof for winch body
• Bolt pattern: 3.00″ x 4.875″ (4 hole)

Optional Fairlead Mount Features:

• Compatible with standard spool roller and aluminum hawse fairleads
• Designed for 4-bolt patterns of: 3″ x 4.875″
• Mounts to flat surfaces

Note: Does not include winch mount.

Featured Blog Post: Check out our blog post to learn how to install your Polaris Ranger winch!
