Polaris Ranger 4500 Lbs UTV Winch With Steel Cable Wide By KFI Products

Winch Details:

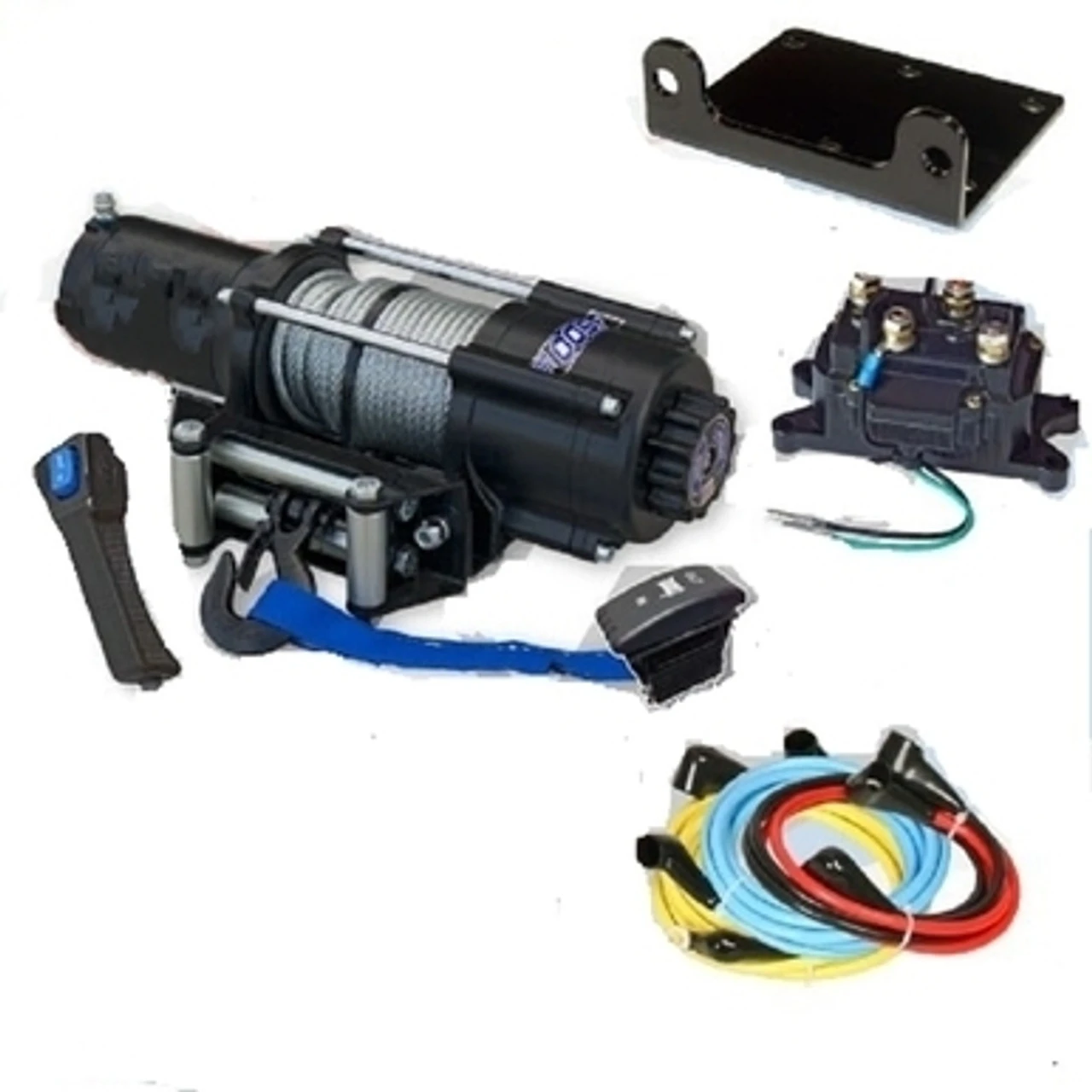

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 4500lb UTV Series winch features quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a wide 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a “KFI 1-Year Limited Warranty”. The KFI U4500w winch comes with everything you need other than a UTV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific UTV winch mount.

Winch Includes:

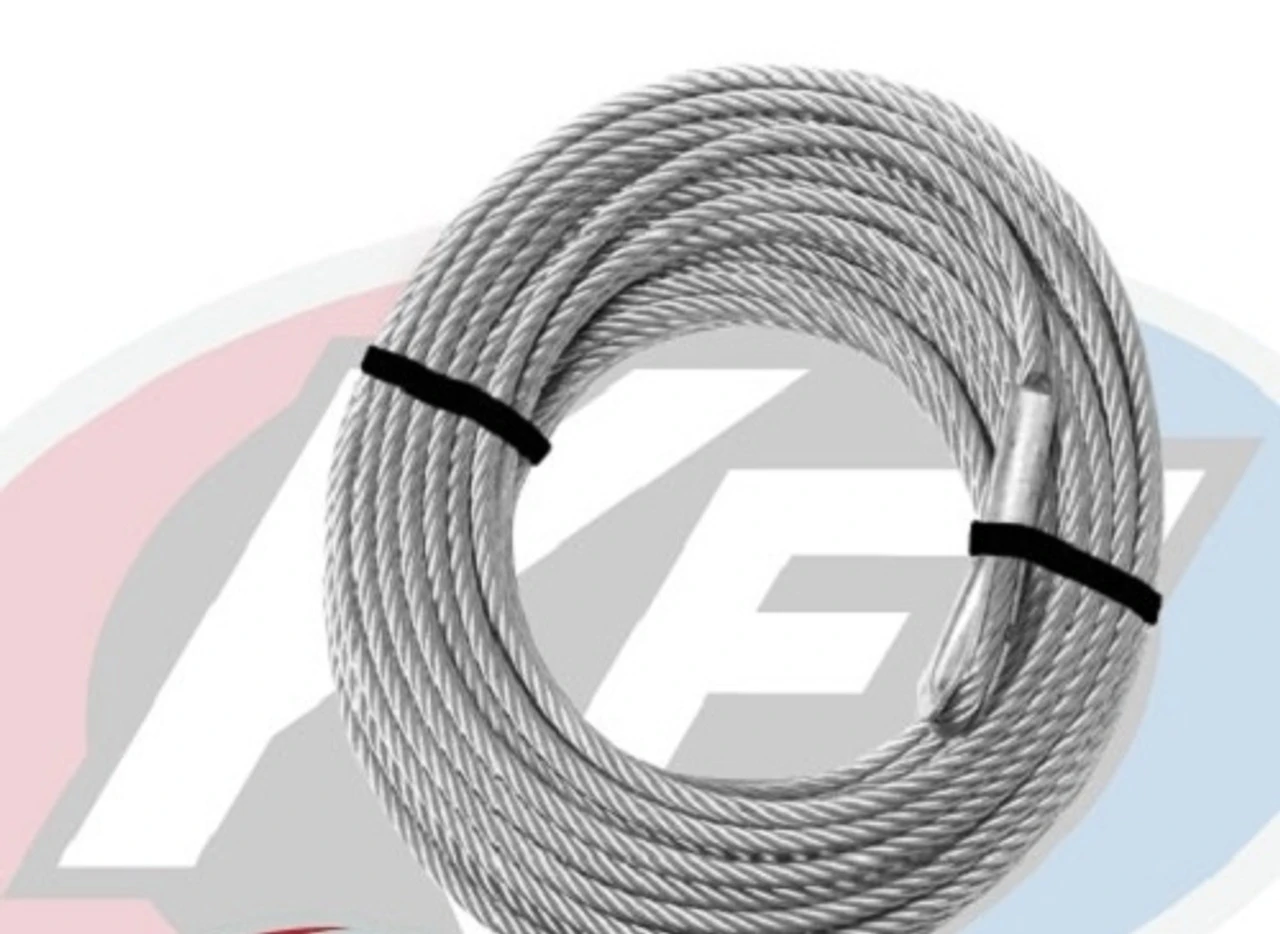

52′ Steel Cable #UTV-CBL-4KW

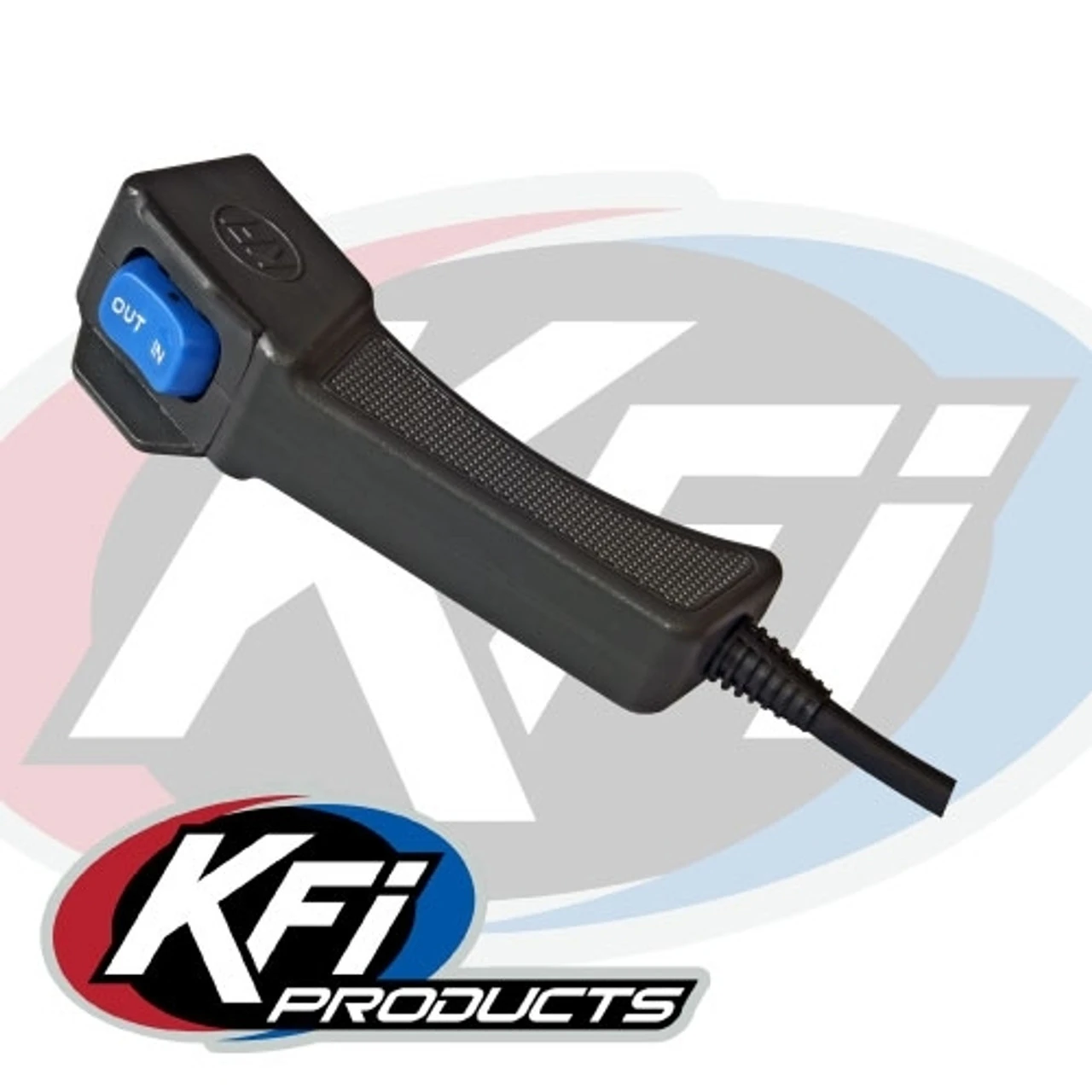

Also included is a Handheld 14′ Corded Remote (UTV-HR) for those situations when you need to control your winch from a distance or dismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring a system so that you can store your remote when not in use.

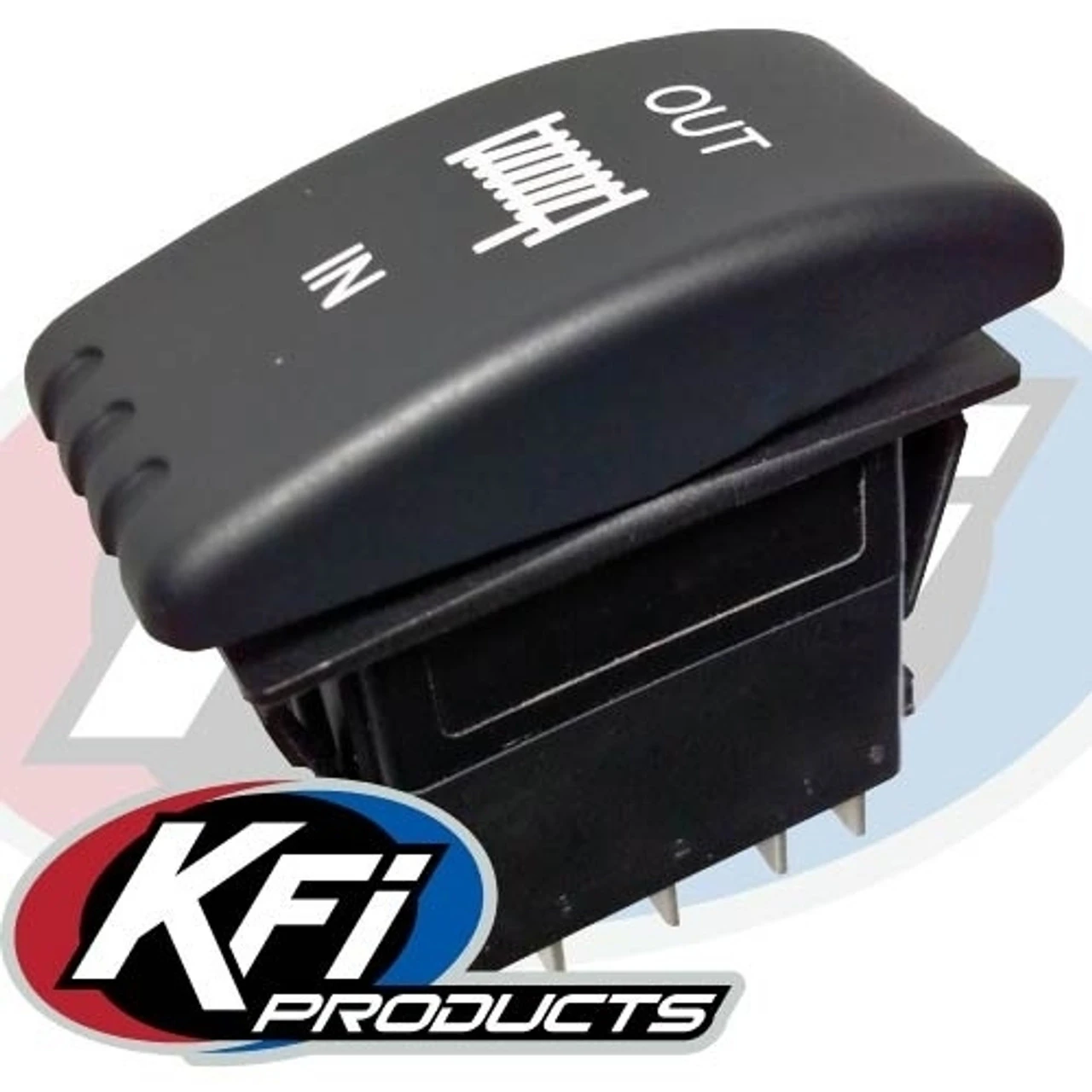

Take control of your winch with the included UTV Dash Rocker Switch (UTV-DRS-K). It comes with the switch and the wiring harness with the plug for easy install. The dash rocker also comes with a blue led light inside to light up your dash at night. This rocker switch allows you to control your winch with just the touch of your finger, never having to fully let go of your steering wheel.

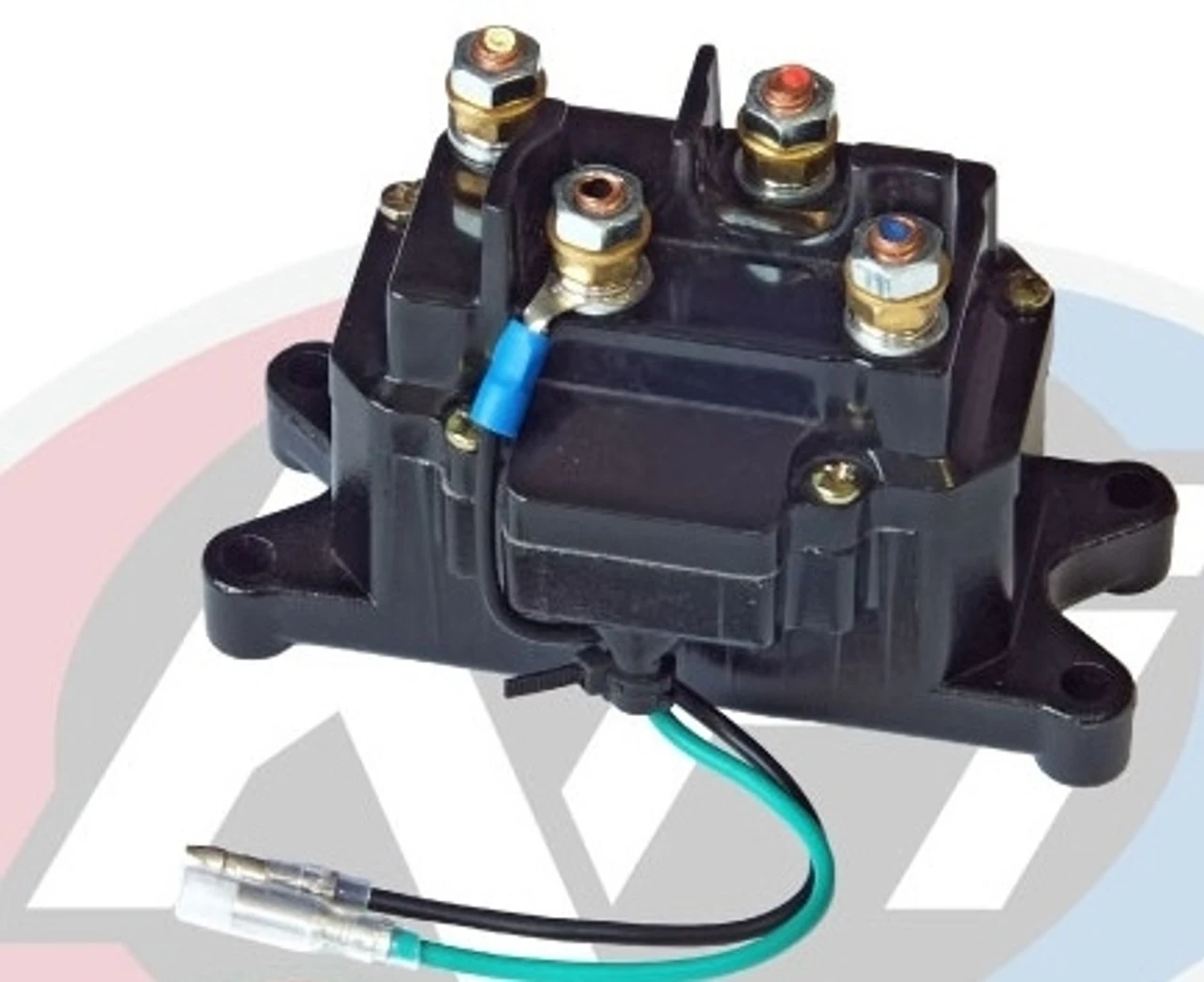

The all New Heavy Duty Electric Contactor (UTV-CONT) protects your UTV’s electrical system and switches the power distribution of your winch that is controlled by your switches.

4500 lbs UTV Winch with Steel Cable Wide U45w-R2 Specifications:

• Model: U45w-R2 UTV Series (WIDE)
• Rated Line Pull: 4500 lbs.
• Motor: 12V DC, 1.7 hp Permanent Magnet
• Gear Ratio: 166:1
• Gear/Transmission: All-metal Planetary Gear Drive
• Brake: Dynamic and Mechanical
• Clutch (free spooling): All Metal Cam Activated Freespool
• Drum Size: 2″ (D) x 4.92″ (L)
• Cable: 15/64″ (D) x 52′ (L)
• Fairlead: Multi-directional Roller
• Control: Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch
• Winch Dimensions: 16.3″ L x 4.55″ D x 5″ H
• Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV)
• Mounting Bolt Pattern: 3.00″ x 6.60″ (4-Hole)
• Recommended Battery: 12 Amp/hour minimum
• Warranty: Limited 1 Year
• Winch Weight: 39 lbs. (complete kit)

Featured Blog Post: Check out our blog post to learn how to install your Polaris Ranger winch!
