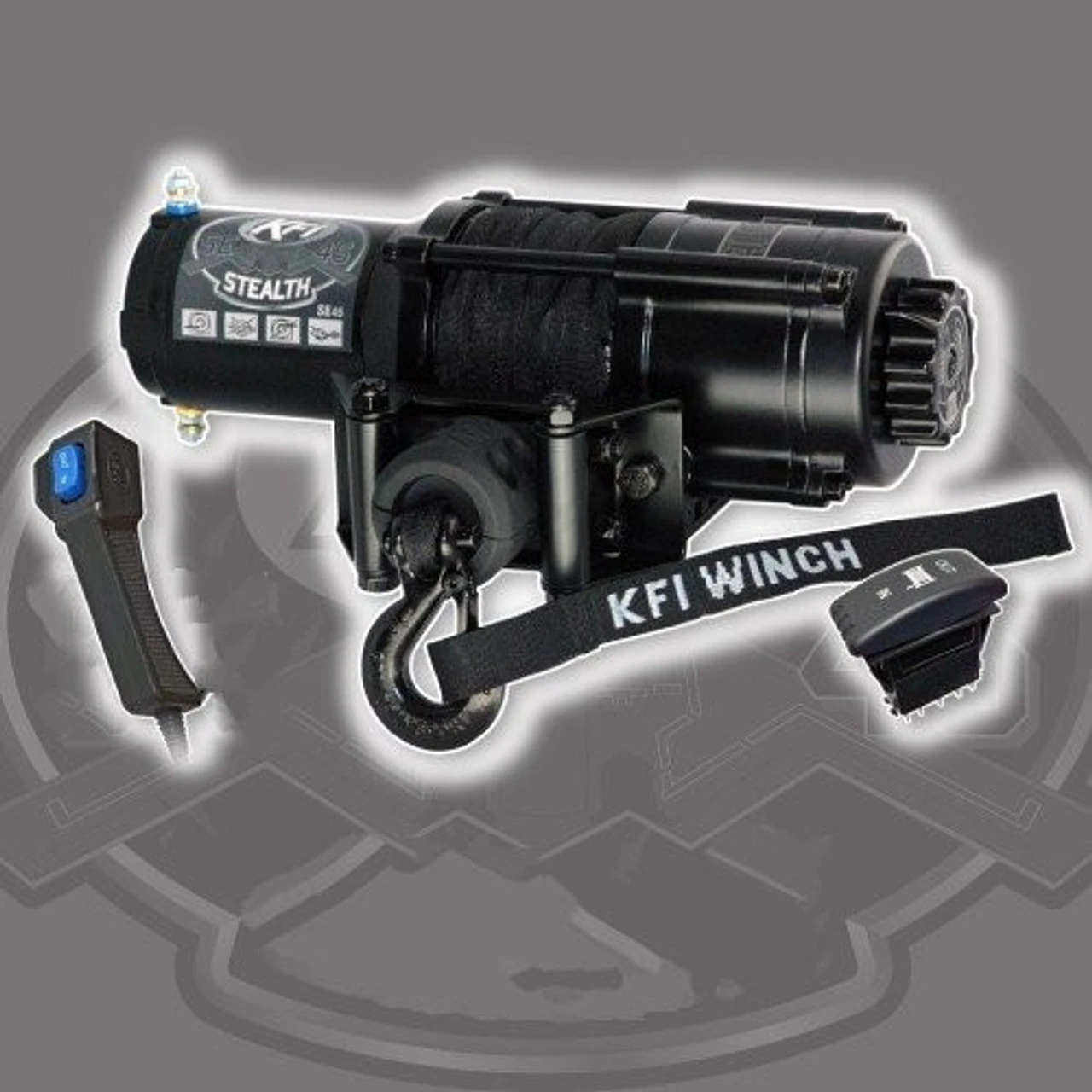

Polaris Ranger 4500lb Stealth Winch By KFI Products

Unleash the beast with KFI Products’ New Stealth Winch. This 4500lb aftermarket winch uses a 38’ synthetic rope, which is lightweight, safe and provides a low coefficient of friction. They say a winch is only as good as its gears, and that’s why KFI uses an all-metal planetary gear drive to crank away at a ratio of 166:1. With its easy to use Dash Rocker Switch, mechanical braking system, and heavy-duty, all-metal, turn clutch, the New Stealth Winch can maximize its 1.7hp motor to exert maximum pulling force.

Maximize your ATV’s off-road recovery and all-around utility with the New Stealth Winch by KFI Products. This advanced winch uses its 1.7hp motor and planetary gear drive to pull with the highest degree of strength and reliability, with forces generated in excess of 4500 pounds. This aftermarket winch comes with everything you need for installation, along with dash mounted and corded remote switches to control the device from both inside and outside the vehicle.

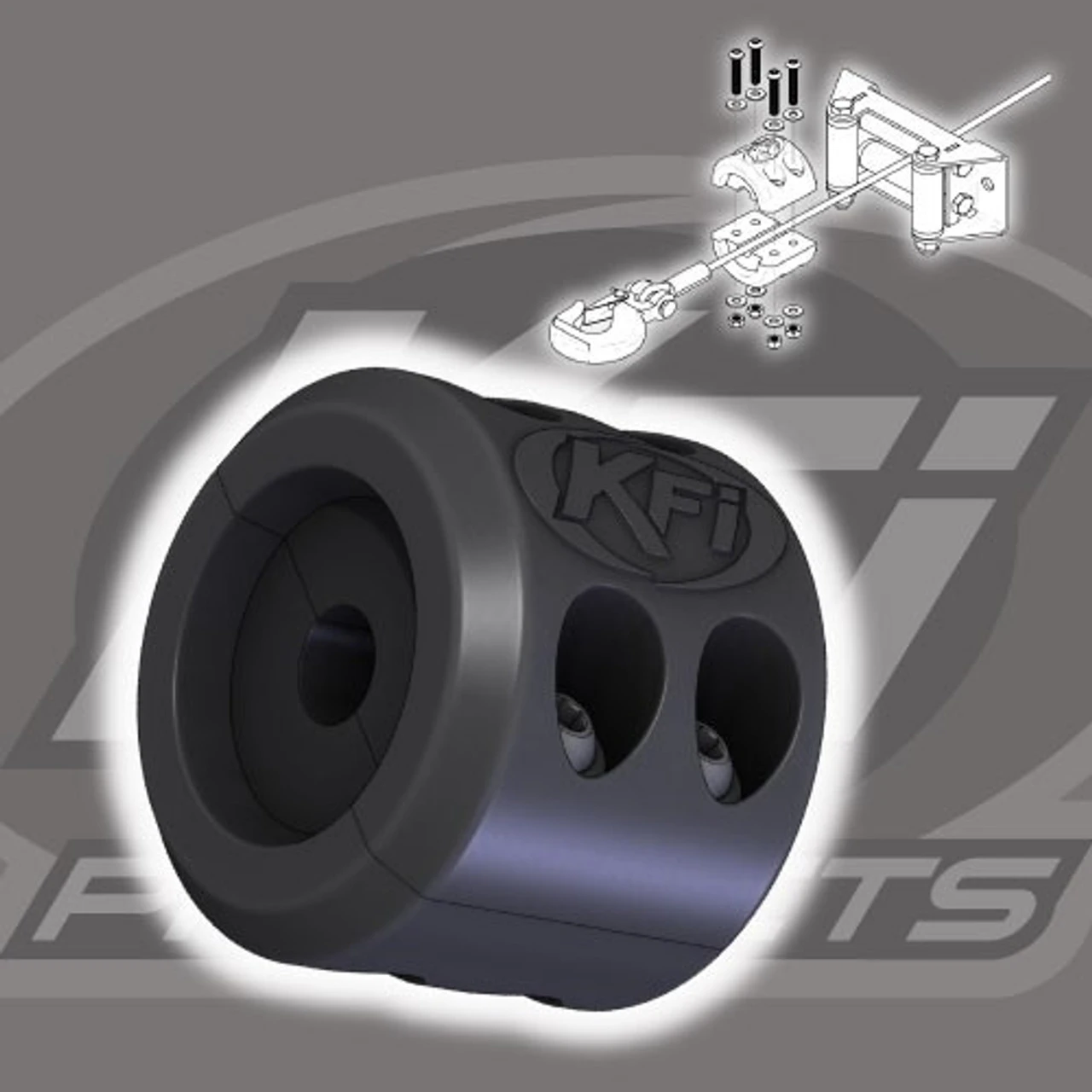

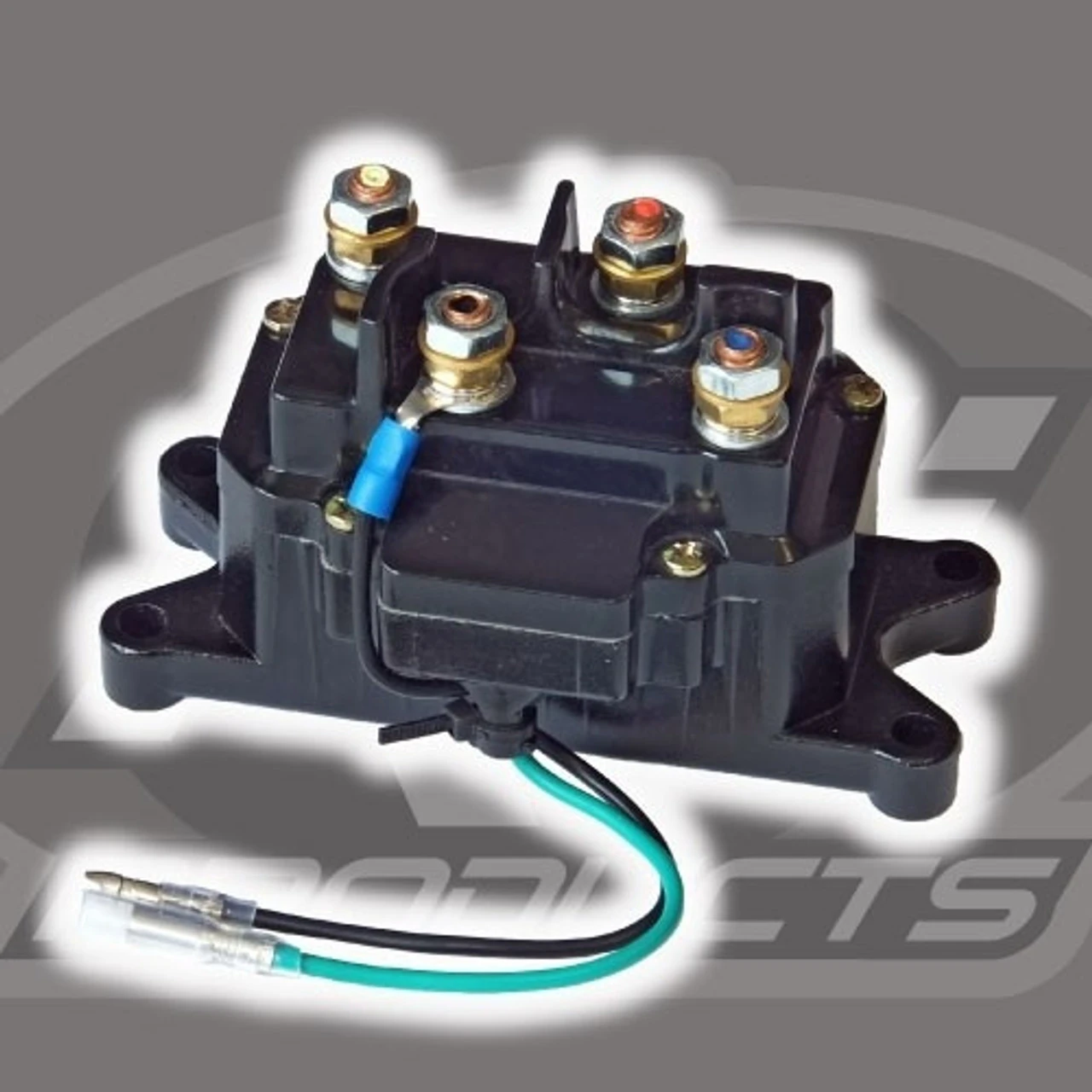

The 38’ synthetic cable with a 5’ protective sheath and end loop is both strong and light. By incorporating a cable hook stopper, the designers were able to diminish rattling and reduce the risk of injury should the line snap. Additional safety measures include the heavy-duty electric contractor — which protects your ATV’s electrical system — and the dynamic mechanical brake system — which locks the line in place during operation. The free spooling clutch within the winch makes drawing out slack simple and effortless, while the 4-hole fairlead mount plate does the same for installation. Whatever your needs may be, if you demand pulling strength as well as precision, you’ve come to the right place.

Winch Features:

• Model: SE45 UTV Series
• Rated Line Pull: 4500 lbs.
• Motor: 12V DC, 1.7 hp Permanent Magnet
• Gear Ratio: 166:1
• Gear/Transmission: All-metal Planetary Gear Drive
• Brake: Dynamic and Mechanical
• Clutch (free spooling): All Metal Cam Activated Freespool
• Drum Size: 2.0″ (D) x 3.19″ (L)

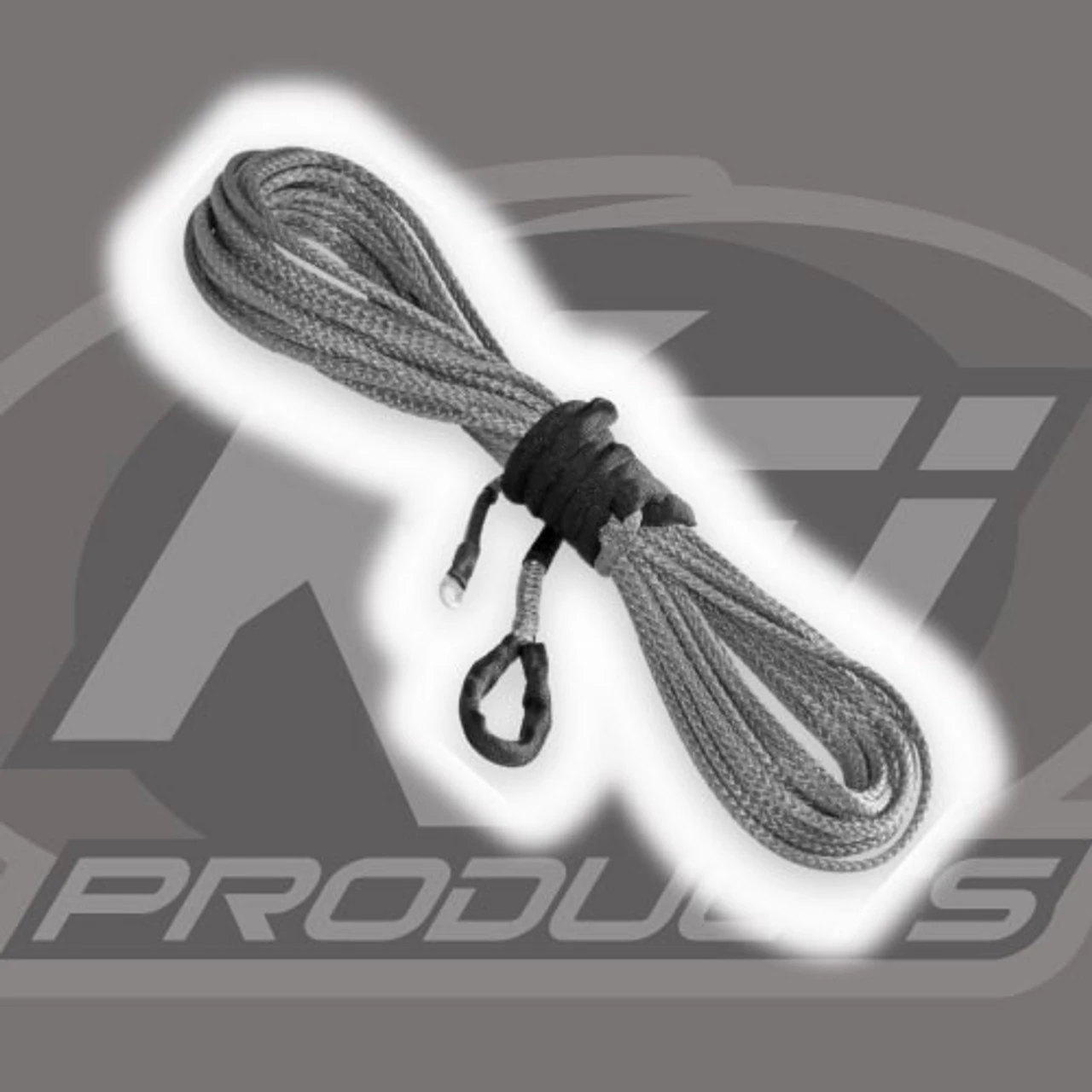

• Synthetic Cable: 15/64″ (D) x 38′ (L) Smoke color
• Fairlead: Multi-directional Roller

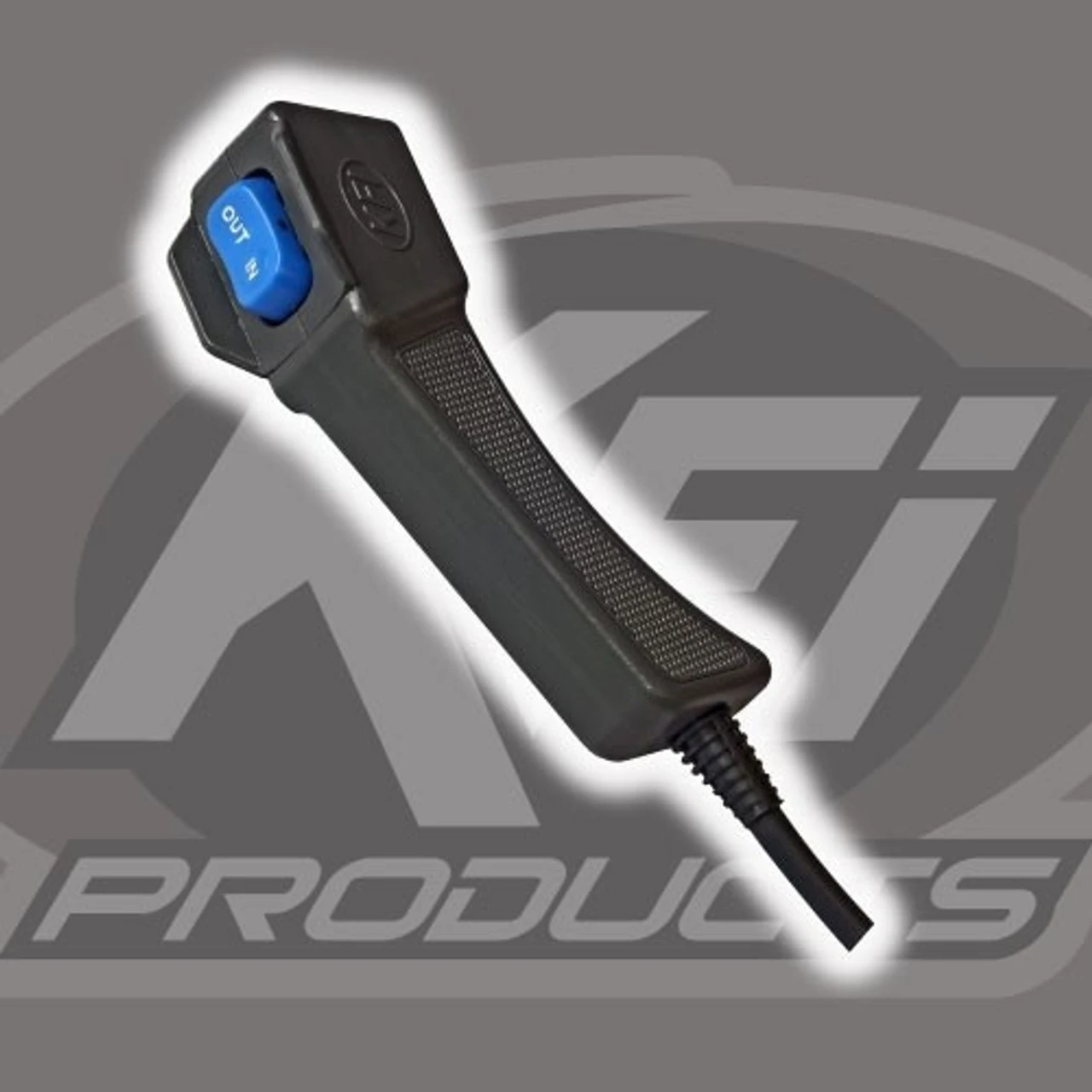

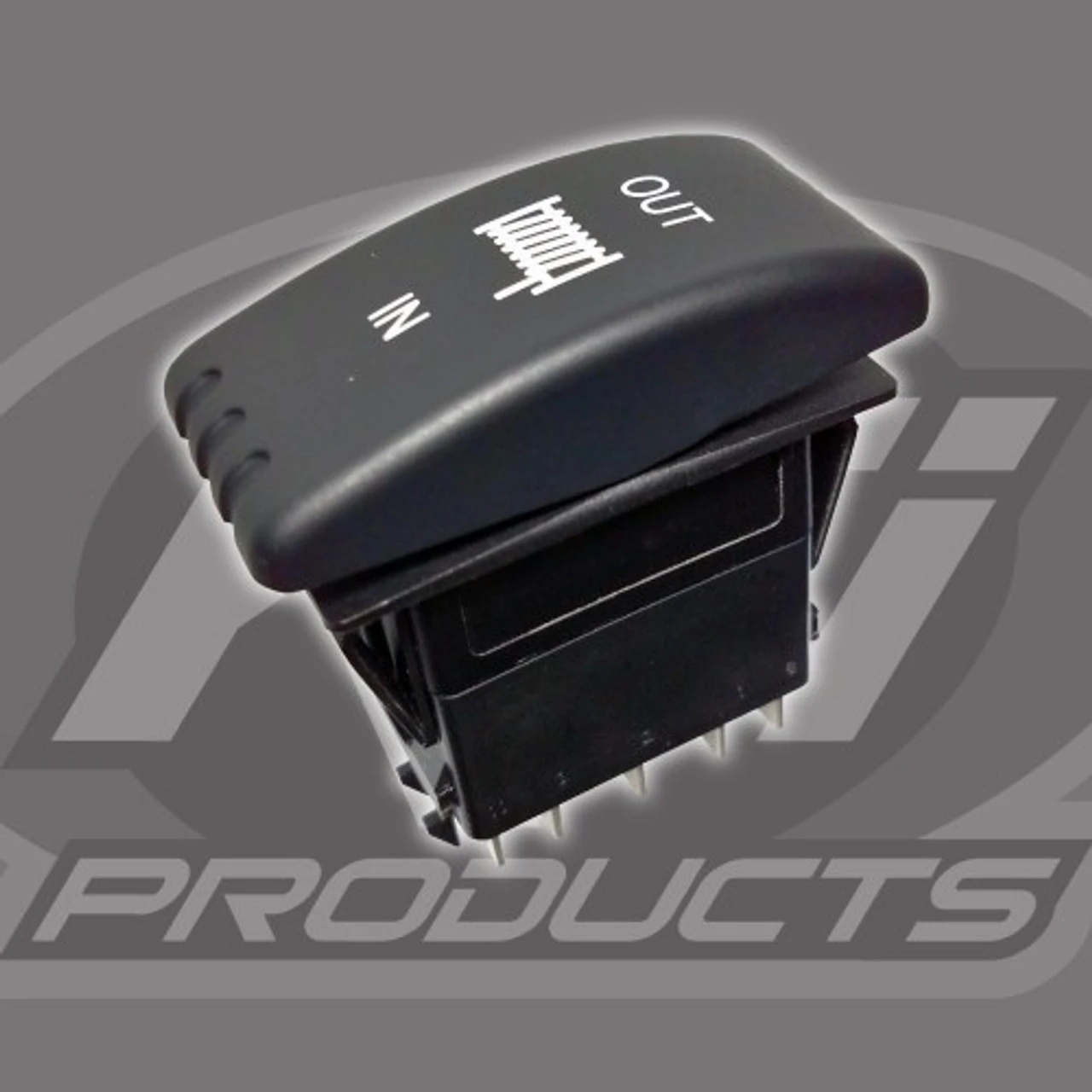

• Control: Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch
• Winch Dimensions: 14.6″ L x 4.55″ D x 4.82″ H
• Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
• Mounting Bolt Pattern: 3.00″ x 4.875″ (4-Hole)
• Recommended Battery : 12 Amp/hour minimum
• Warranty: Limited 1 Year
• Winch Weight: 33.65 lbs. (complete kit)
