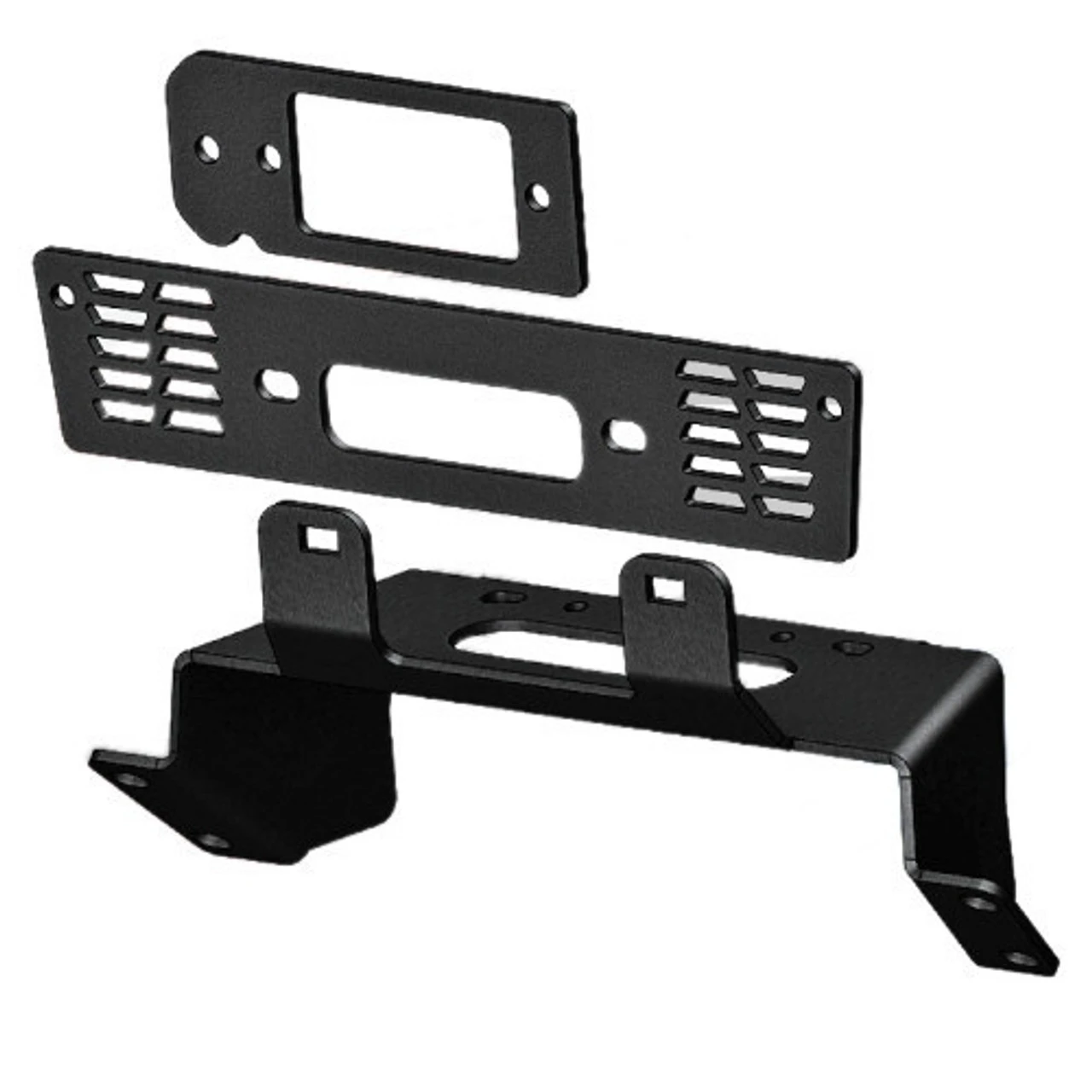

Polaris Ranger 500/570/800 Standard Winch Mount By KFI

Contrary to popular opinion, installing an aftermarket UTV winch onto your Polaris Ranger 500/570/800 does not need to be a hassle. This Standard Winch Mount for the Polaris Ranger by KFI makes it easier than ever before. A winch is one of the best aftermarket accessories you can make for a UTV or side by side like the Polaris Ranger, and this winch mount offers the safe, sturdy anchor point it needs. This winch mount is constructed from high grade steel and is powder coated for maximum strength and durability. You will get all the hardware you need to install this winch mount onto your Polaris Ranger when you order it.

Winch Mount Features:

• Includes the step to step description of how to install it.
• It is constructed of 3/16″ Grade 50 steel, in the USA.
• Easy to install
• Includes complete installation instructions and hardware
• 100% MADE IN USA
• Constructed of 3/16″ Grade 50 steel
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• Mounts winch tucked back behind front bumper
• Satisfaction guaranteed
• Roller fairlead and winch not included

Notes: This winch mount is not compatible with SuperATV Band winches

Compatible Winches:

• KFI:  ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / U45w-R2 / SE45w-R2
• KFI : AS-50 / AS-50w
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
  • May require adding washers to shim up to fit due to size
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs /4000lbs / Provantage 4500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / Terra 45 / LT4000UTV
• MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK : 1500lbs #2955AT
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500, 3500
• BADLAND: 2-Hole Winches
• BADLAND: Standard Winches
• BADLAND: WIDE Winches
• CHAMPION : 2-Hole Winches
• CHAMPION : Standard Winches
• CHAMPION : WIDE Winches
• KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER : KT2000
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
• SMITTYBILT : XRC 2.0
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT : XRC 3.0 / XRC 4.0
• XGEAR:  X3000 / X4000
  • 4-Hole Standard (3.00″ x 4.875″ bolt pattern)
• VENOM:  4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00″ x 6.600″ bolt pattern mount-up
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
  • 4-Hole Standard 3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern
• Traveller: 1078311
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole Standard (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
  • 2-Hole (3.10″ with rollers that are 4.875″ bolt pattern)
• QUADBOSS: RP25 / RP35
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole WIDE (3.00″ x 6.60″ bolt pattern with rollers that are 6.600″ or 6.000″ bolt pattern)

Polaris Ranger Roller Fairlead (Standard) by KFI Products

If you are purchasing the for use with your Crew machine, you will also need to purchase UTV-WEK (Wire extension kit) due to the location of the battery.
