Polaris Ranger 500/570 Complete Snow Plow Kit By KFI Open Trail

Polaris Ranger 500/570 Complete Snow Plow Kit by Open Trail

Clear your big driveway or move gravel, dirt, and more faster and easier than ever by adding this easy-to-install Snow Plow Kit! Open Trail uses only top-grade steel construction and quality-made components for year after year of reliable plowing.

Kit includes:

• (1) Plow Blade (your choice of size)
• (1) UTV Push Tube
• (1) Vehicle Specific Mount (make sure to select your correct vehicle above)

Important Notes:

• Does NOT include winch or winch mount
• Most Ranger Plow Mounts include lower 2″ Receiver Hitch, some Ranger models and All General models do not
• Requires Stock Front Bumper
• 60″ blades do not include 2-ply top rubber flap, must be purchased separately
• Does NOT work with all High Lifter Editions or Waterfowl Editions

All Plow Components Feature:

• Complete installation instructions included
• All mounting hardware included
• Powdercoated for maximum durability
• Unlike all other Plow competitors, our components are metal bead blasted before they are powder coated for the best possible finish prep.
• 100% Made in the USA

Straight Blade Specifications:

• Available sizes:
  • 60″ ATV / UTV Pro-S Series Plow Blade (Straight) – #105060 – (75 lbs.)
  • 66″ UTV Pro-S Series Plow Blade (Straight) – #105066 – (81 lbs.)
  • 72″ UTV Pro-S Series Plow Blade (Straight) – #105072 – (85 lbs.)
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width
• The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap
• Measures 16” Vertical blade face height with an approximate 21” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3″-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts

Pro-Poly Blade Specifications:

• Available sizes:
• 60″ ATV / UTV Pro-Poly Series Plow Blade – #105860 – (81 lbs.)
• 66″ UTV Pro-Poly Series Plow Blade – #105866 – (82 lbs.)
• 72″ UTV Pro-Poly Series Plow Blade – #105872 – (87 lbs.)
• Includes a 7″ high 2-ply top rubber flap
• Dual Curvature face for supreme snow moving
• Measures 21” Vertical blade face height with an approximate 27” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3″-diameter grade-50 steel skid plates
• Flexible Heavy Duty Black Poly face
• 3/16” Grade 50 Steel Rib and Frame construction
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• Works with KFI ATV & UTV Tubes
• Includes Plow Markers

Pro 2.0 UTV Push Tube (106300):

• Improved Manufacturing
• Easier Install for All Plow Accessories
• Added 2.5″ Of Overall Length
• Works With All KFI Plows
• Front Mount Design with 30″+ of lift height
• Heavy Duty 1-1/2″ 12 Gage Square Steel Tubing
• Heavy Duty 1/4″ Thick 1-1/2″ Diameter Grade 50 Pivot Bushings
• 6″ Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five-degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees

Model Specific Plow Mount:

• Front-Mount System
• Plate constructed from 3/16″ Grade 50 Steel
• All Pin Tabs are constructed from 1/4″ Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding

** Actual Plow Mount may look different than reference photo shown **

OPTIONAL ADD-ONS

4500lbs Winch Kit:

• Standard (#U45-R2) – 38′ Steel Cable #UTV-CBL-4K
• Wide (#U45w-R2) – 52′ Steel Cable #UTV-CBL-4K
• Kit inclusion:
  • Steel Cable
  • Handheld 14′ Corded Remote(ATV-HR)
  • UTV Dash Rocker Switch (UTV-DRS-K)
  • New Heavy Duty Electric Contactor (ATV-CONT)

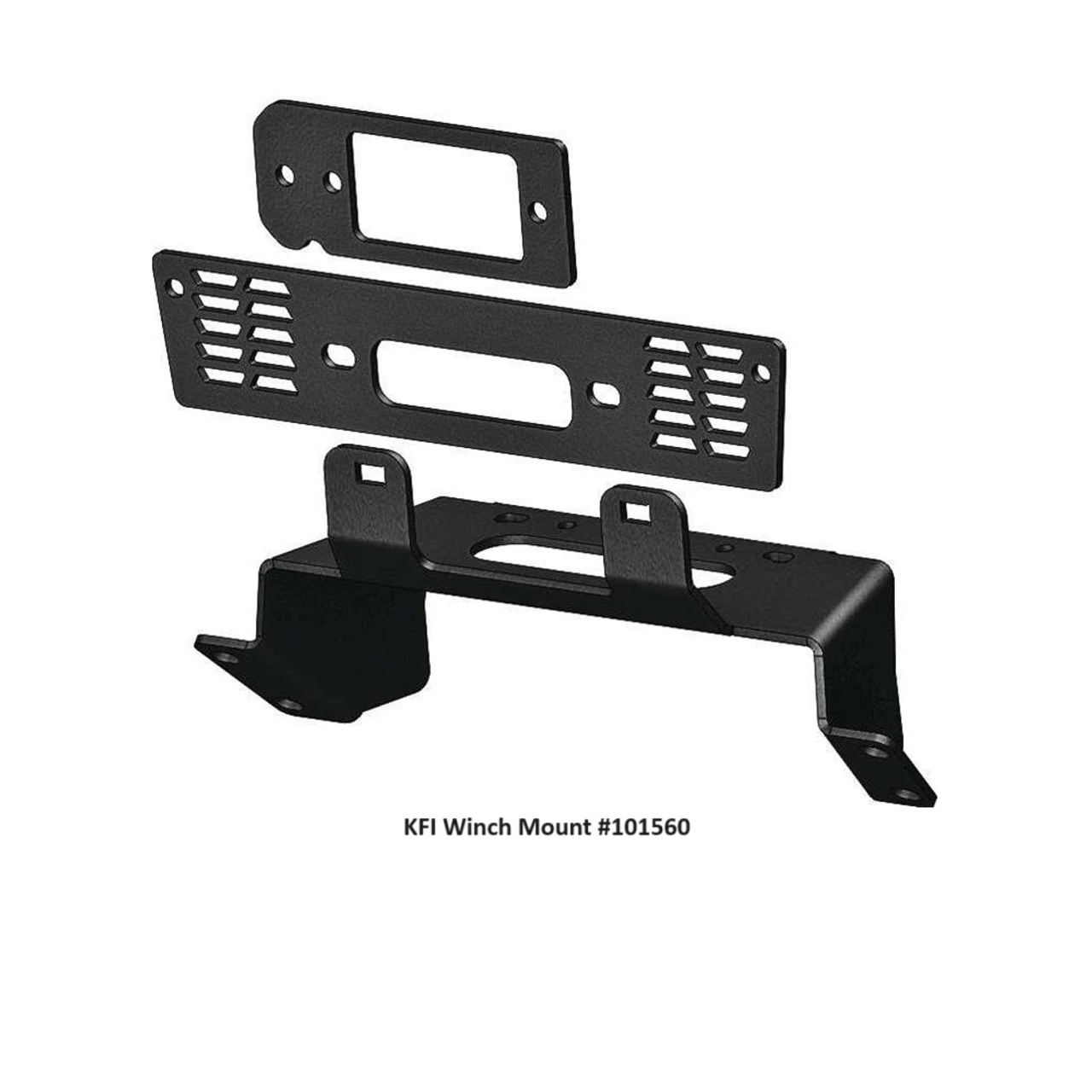

Model Specific Winch Mount:

• Constructed of 3/16″ Grade 50 steel
• Powder coated black for supreme durability
• Very easy to install
• Mounts winch tucked back behind front bumper
• Satisfaction guaranteed
• Roller fairlead and winch are NOT included

** Actual Winch Mount may look different than reference photo shown **

Hydraulic Actuator (Angle) Kit:

• Specifically designed for use with KFI UTV Pro 2.0 Push Tubes #106300 / Open Trail Tubes #10-6300
• Parker Industries Made in the USA Electric (12 volt) over Hydraulic Cylinder
• Complete wiring kit with Carling Technologies Two-Way Dash Rocker Switch
• Powder Coated TOUGH
• Does NOT include the Tube System #106300 (Purchase separately)
• Hydraulic Angle Kit for Machine with Tires  (106305/105940/ACT203)
• Hydraulic Angle Kit for Machine with Tracks  (106335/105940/ACT203) – Requires UTV Track Extension (106330), must be purchased separately


UTV Plow Tube Track Extension (106330):

• Designed to work with KFI UTV Tubes (106300 & 105635) and KFI CC Conversion Push Tubes (106310 & 105905)
• Constructed of Heavy Duty 1/4” Grade 50 Steel
• Extends UTV Blade 10.33”
• Shot Blasted before powder coating; Powder Coated TOUGH – Black
• Replacement for #105565

Plow Markers:

• Increase your blade end visibility for added safety
• Bolts to the side/ends of your blade
• Includes two markers
• Standard Blade Plow Marker Kit (105640) – has a steel 89-degree angled base ; 15.5″ length  0.5 ” diameter
• Pro-Poly Plow Blade Marker Kit (105810) – has a straight base

Snow Flap Kit:

• 11-Gauge Steel Adjustable Snow Flap Edge Strip
• 6.5” 2-3ply Rubber Flap (acts as a snow flap as well as an extension to the plow blade)
• All KFI Blades are Pre-Drilled
• Two-way Adjustable
• 60″ Snow Flap (105144)
• 66″ Snow Flap (105835)
• 72″ Snow Flap (105290)

Side Shield:

• Attaches to the ends of the plow to help reduce snow and dirt overflow
• 3/16” Grade 50 Steel Powder Coated Black
• Pro-S Side Shield – Tapered Wing for Standard Blade (105540) — Adds 2-1/4” Width to size of blade per Shield

• Pro-Poly Tapered Side Shield – Driver Side (106110) — Adds 5.6” Width to size of blade per Shield
• Pro-Poly Tapered Side Shield – Passenger Side (106115) — Adds 5.6” Width to size of blade per Shield

UTV SQ Push Tube Leveling Kit:

• Allows mounting of push tube at the correct height so the blade is level.
• Works with KFI UTV SQ Push Tubes (106300)
• Shot Blasted before powder coating ; Powder Coated TOUGH – Black
• 1″ Negative SQ Push Tube Leveling Kit (106320) – For machines 8.5″-9.5″
• 1″- 2″ UTV SQ Push Tube Leveling Kit (106322) – For machines 11.5″ – 14″
• 4″ Positive UTV SQ Push Tube Leveling Kit (106324) – For machines 14″-16″
• 6″ Positive UTV SQ Push Tube Leveling Kit (106326) – For machines 16″-18″
