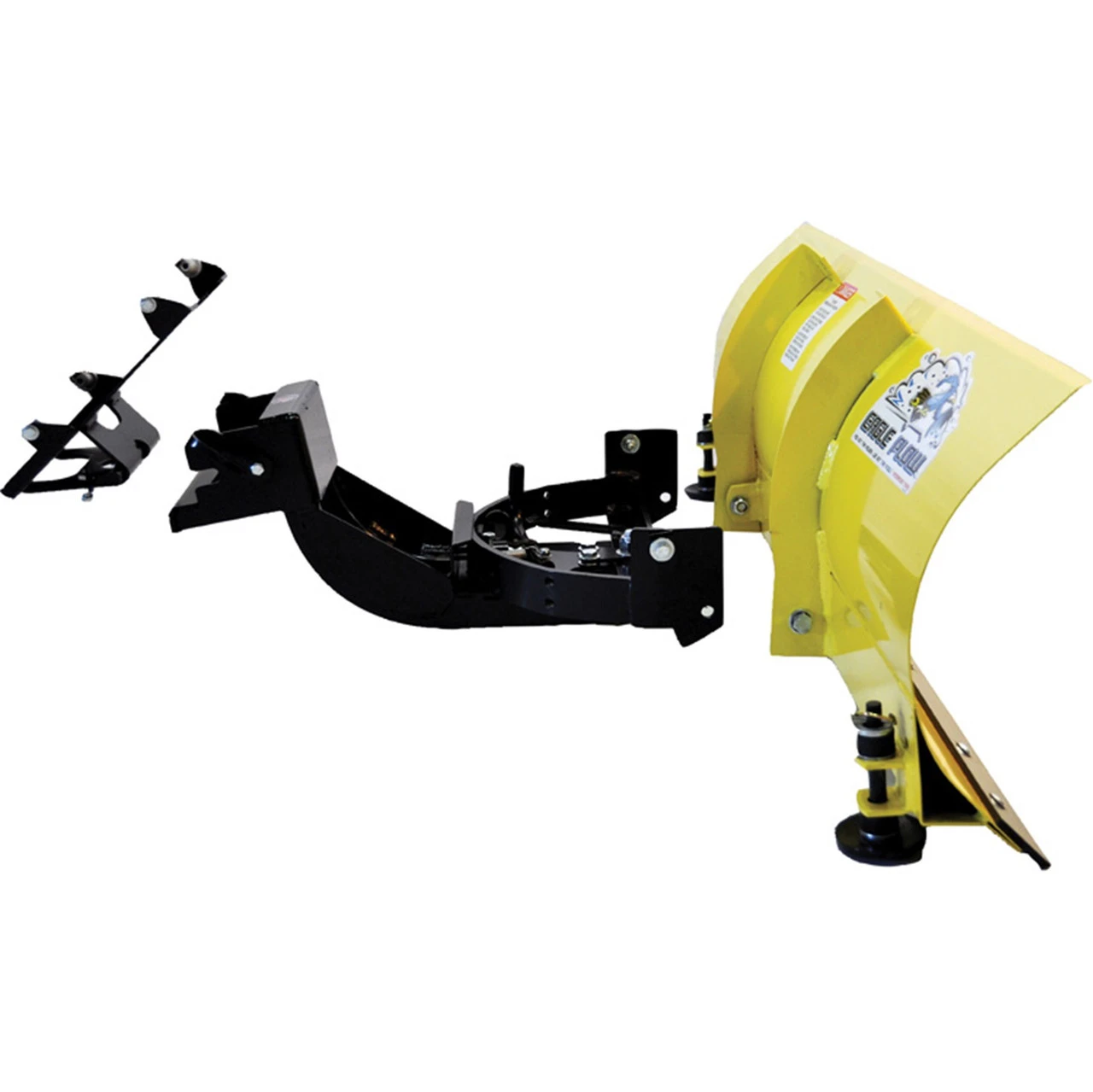

Polaris Ranger 500/570 Complete Snow Plow System By Eagle Plow

Polaris Ranger 500/570 Complete Snow Plow System by Eagle Plow

Eagle Plows date back to the 3-wheeler era, they have withstood the test of time & we continue to innovate the industry’s first plows today. Blades continue to be engineered & manufactured in Minnesota, USA, by the snow experts from US Prime steel for maximum strength & durability. Starting with 11-gauge steel, then precision laser cut, rolled, & welded for just the right performance & durability. All plow systems are coated with a high-gloss, powder-coat finish in black, red or yellow depending on blade style.

The latest designs of push tubes & plows interchange with the classic designs, making upgrading to a new machine economical & effortless. Each blade easily engages & disengages from the plow system in between uses or for storage.

Kit Includes:

• Blade
• Push tube
• Model specific plow mount

Blade Features:

• Blade mounts to the push tube swivel with 1/2” bolts
• Adjustable, bolt-on blade stops offer 4 blade pitch positions
• Comes with trip springs & eye bolts for added blade plowing protection

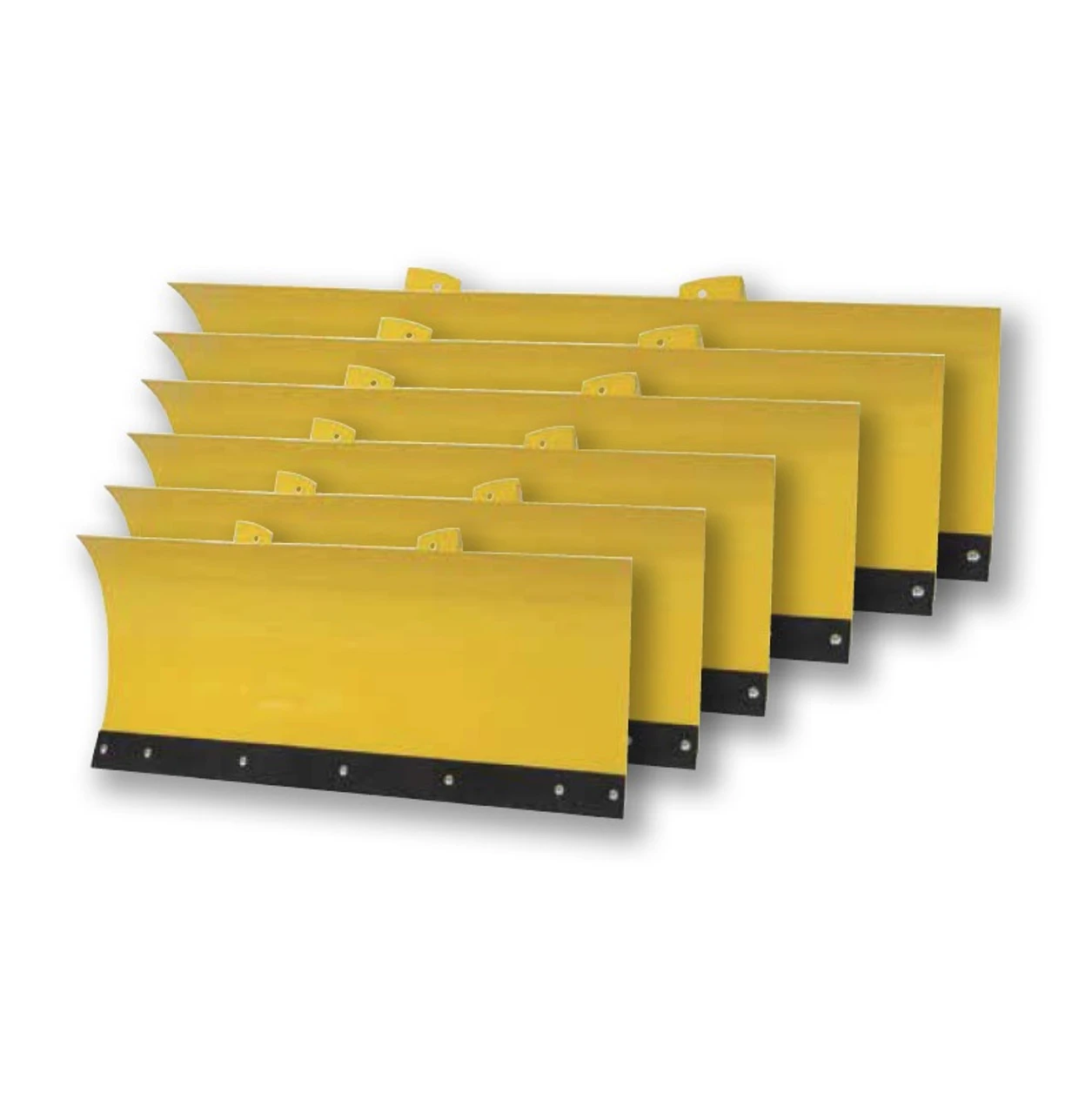

Standard Straight Blades

• Rugged design allows for easy snow rolling
• Tough, heavy duty wear bar is reversible & replaceable
• Manually adjusts to 5 blade positions or is compatible with the hydraulic EagleMotion Pac
• 66”, 72” & 80” blades come with rubber flap & plow markers
• Use the adjustable skid shoes with spacers to protect the blade & surface

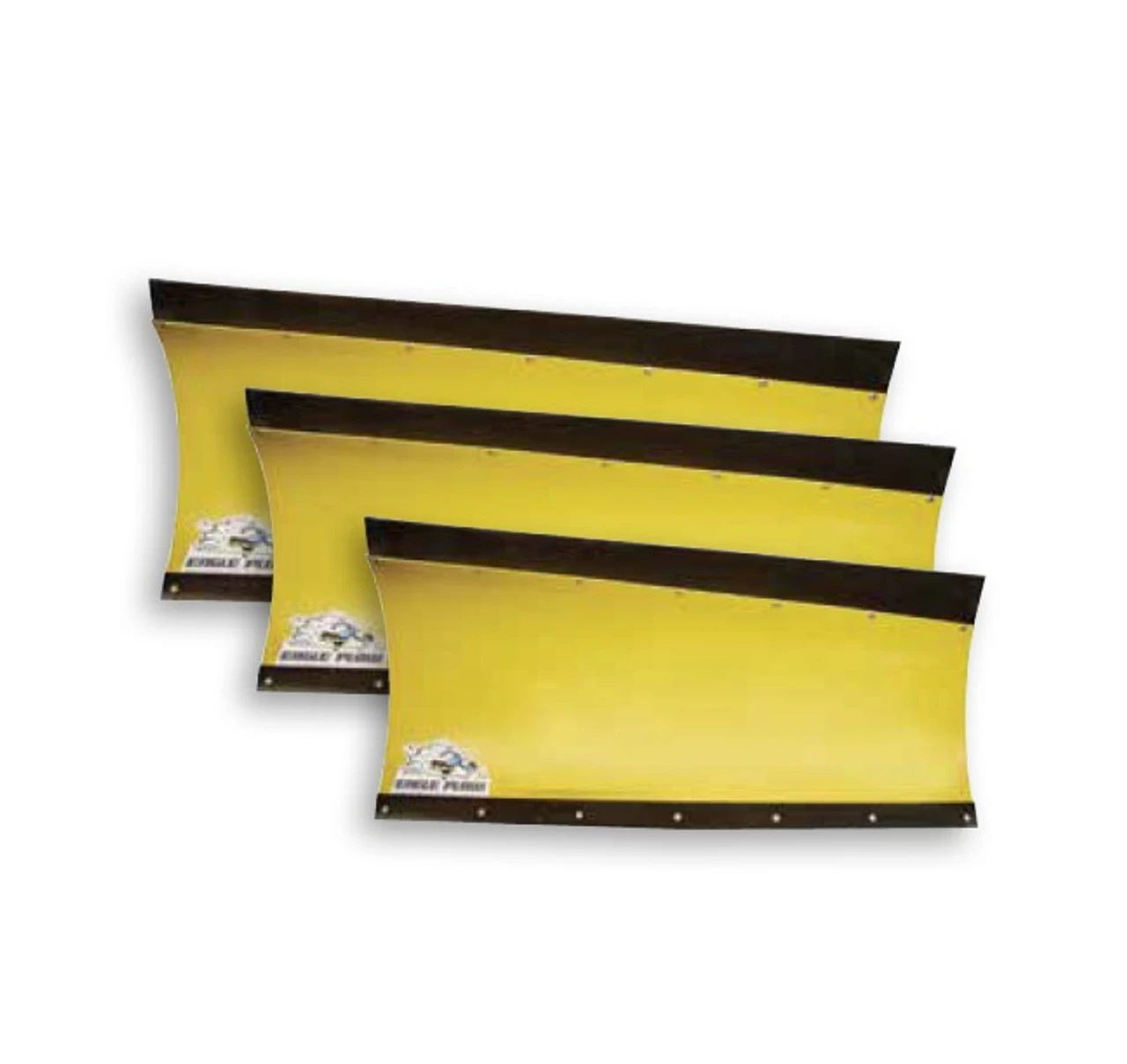

Slanted Country Blades

• Slanted design is best used for high-capacity plowing
• Tough, heavy duty wear bar is reversible & replaceable
• Manually adjusts to 5 blade positions or is compatible with the hydraulic Eagle Motion Pac
• All Country Blades come with a rubber flap & plow marker
• Adjustable skid shoes with spacers allow for smooth surface contact

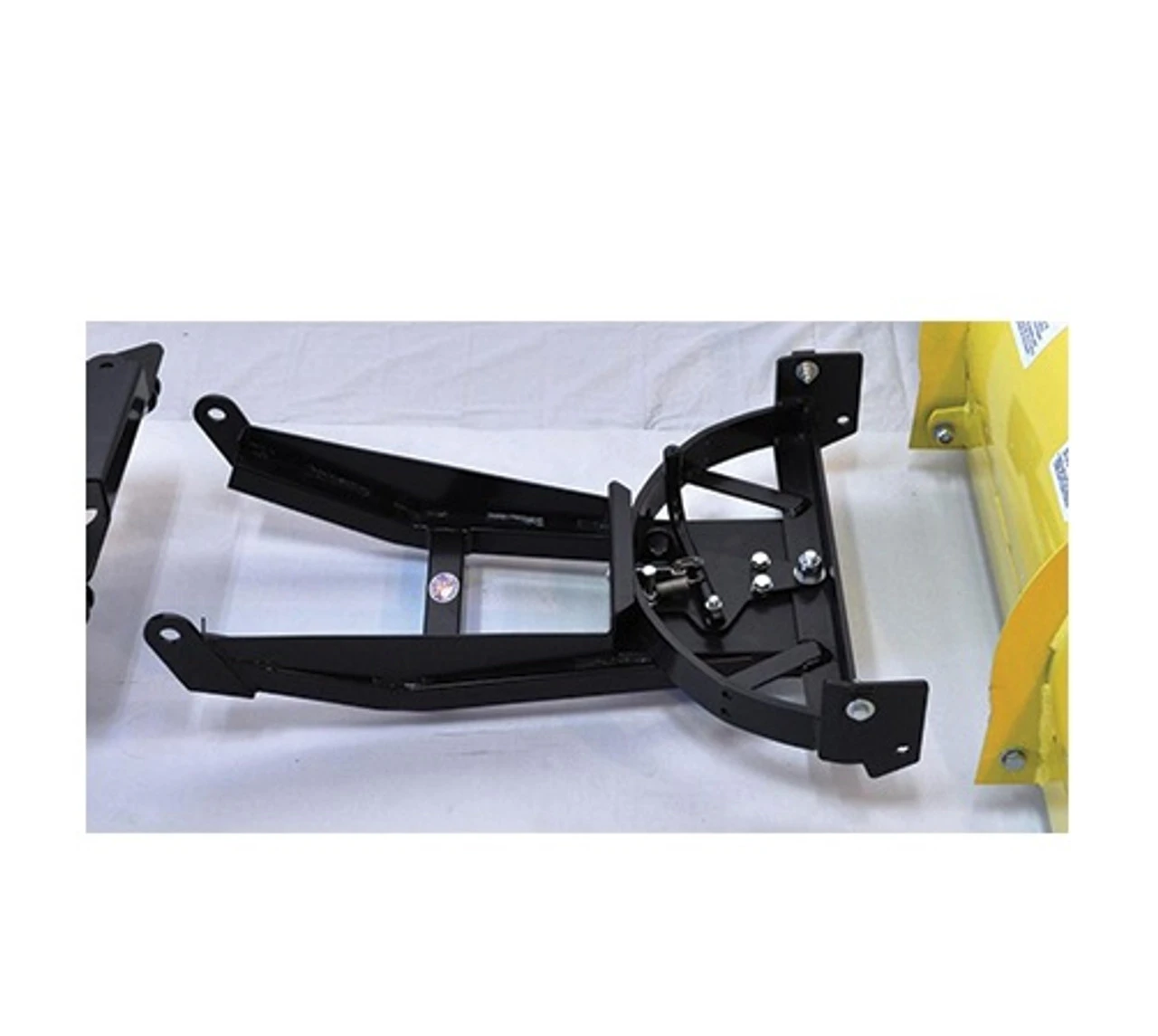

Push Tube Features:

• Manufactured from 1 1/2″ high-strength formed tubing
• Multiple cross members and V-shaped design for added hardiness to the entire system
• Powder coated jet black
• Standard Push Tube for attaching to UTVs with tires
• Extended Push Tube available for attaching to UTVs with tracks

**This purchase includes the Eagle Plow Push Tube Part # AM2805

Eagle Swivel System:

• Manually adjust to 5 Positions offering 30° of rotation to each side.
• Rotates on heavy duty 5/8” bolt mounted to ¼” solid steel
• Curved swivel is manufactured from 3/8” steel

Eagle Blade Mounting:

• Blade attaches to the Swivel System with ½” bolts
• Adjustable, bolt-on blade stops offer 4 blade hitch positions
• Heavy duty trip springs & eye bolts protect your blade when plowing

Optional Extended Push Tube for Tracks: (Part# 2808)

• 3” taller and 11.750” longer than standard UTV push tubes

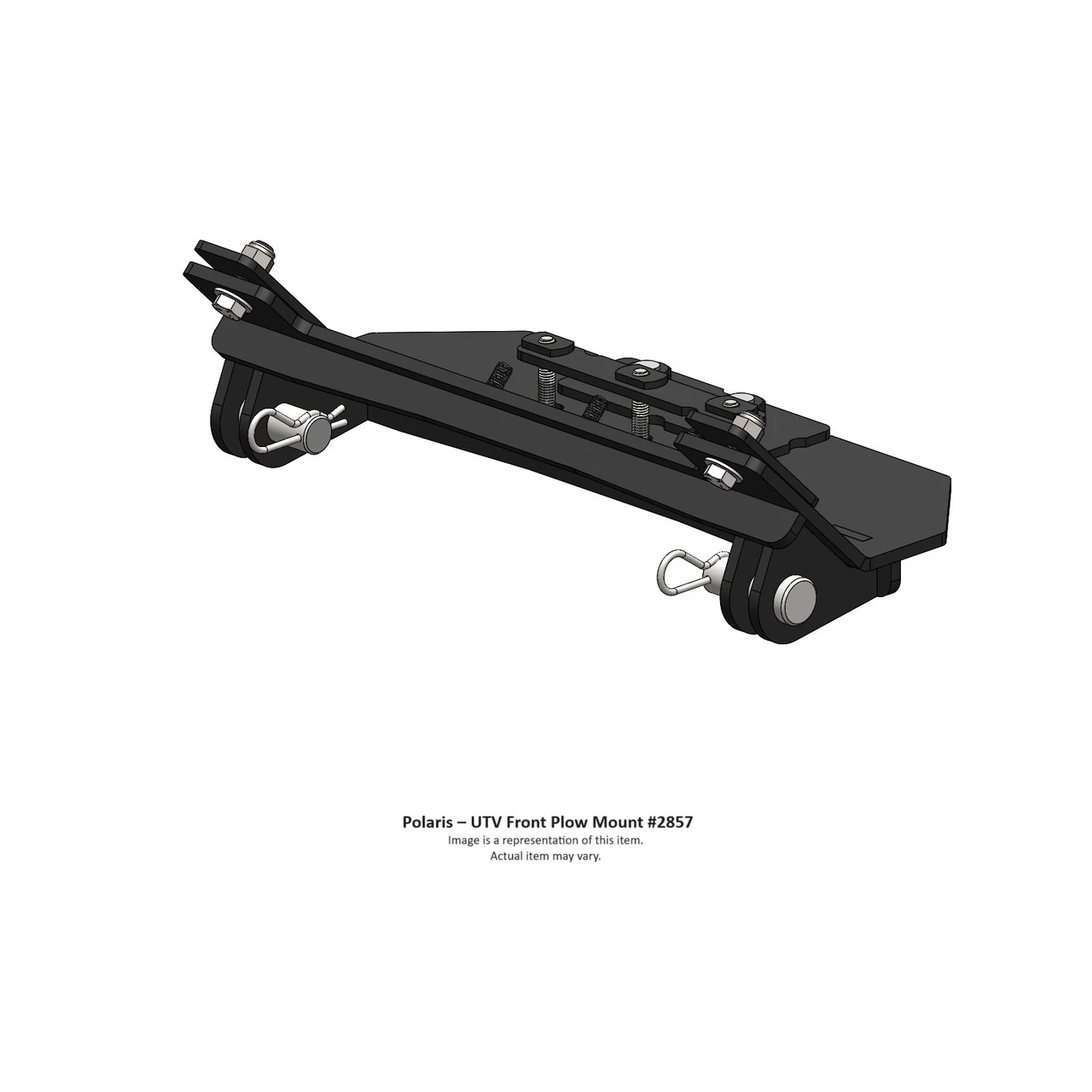

Model Specific UTV Front Mount Features:

• Manufactured from 1/4” steel & attaches with grade 5 hardware to the frame
• Clevis pins are included for attaching push tubes
• Some mounts may recommend off-season removal to maintain ground clearance

NOTE: Must have a winch to use the plow system.

Add-on Eagle Winch Features: (Part # AM1930)

• Tow Limit – 4,500 lbs.
• Winch Dimension – 14.5” L x 4.87” H x 4.5” W 4
• Cable/Rope Dimension – 42’ x 7 /32”
• Includes: Winch, steel cable, rubber cable stop, heavy-duty fairlead, battery & motor cables, solenoid, handlebar rocker switch & mount, safety pull strap, mounting hardware, snatch block, hook

Add-on Plow Markers Features: (Part # AM2950)

• Provides increased visibility while plowing
• To be put one on each side of the plow
• Comes in pairs with all mounting hardware and instructions.

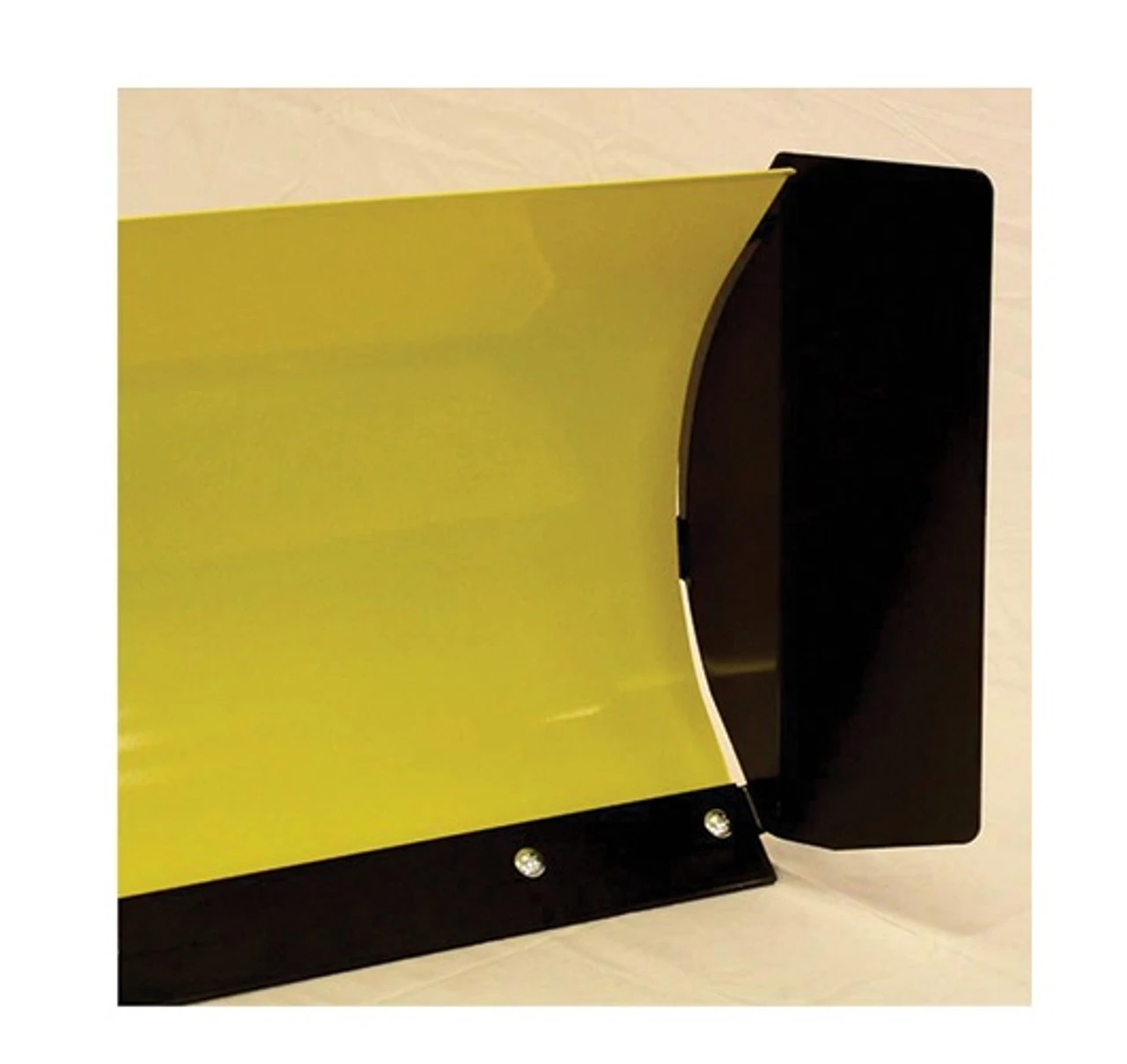

Add-on Side Shields Features:

• Reduces the side overflow of snow while plowing.
• Add-on Side Shields for Standard Blade (Part # AM2941/ AM2942)
• Add-on Side Shields for Country Blade (Part # AM2943)
