Polaris Ranger 500 / 700 Multi-Mount Winch Kit By KFI

Put this 2001 – 2009 Full-Size Polaris Ranger Multi-Mount Winch Kit to the test with its 3/16” steel construction and smooth black powder-coated finish. This KFI Multi-Mount Winch Kit is quickly installed to the front or rear of your UTV for easy access and high-performance location. Loaded with everything you need to get hauling, towing or plowing, this kit includes features front upper 2” receiver, 2” receiver winch mount, 20” quick connect to connect to your winch leads, 48” quick connect that joins your winch contactor to the front of your Ranger and 120” quick connect that joins the winch contactor to the rear of your Ranger. The 2001 – 2009 Full-Size Polaris Ranger Multi-Mount Winch Kit also comes with easy to follow instructions ad all of the mounting hardware to need to get moving. Made 100% in the U.S.A.

Multi-Mount Winch Kit Features:

• Constructed of 3/16″ steel
• Metal bead blasted before powder coated for the best possible finish prep
• Powder coated black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Made in U.S.A.

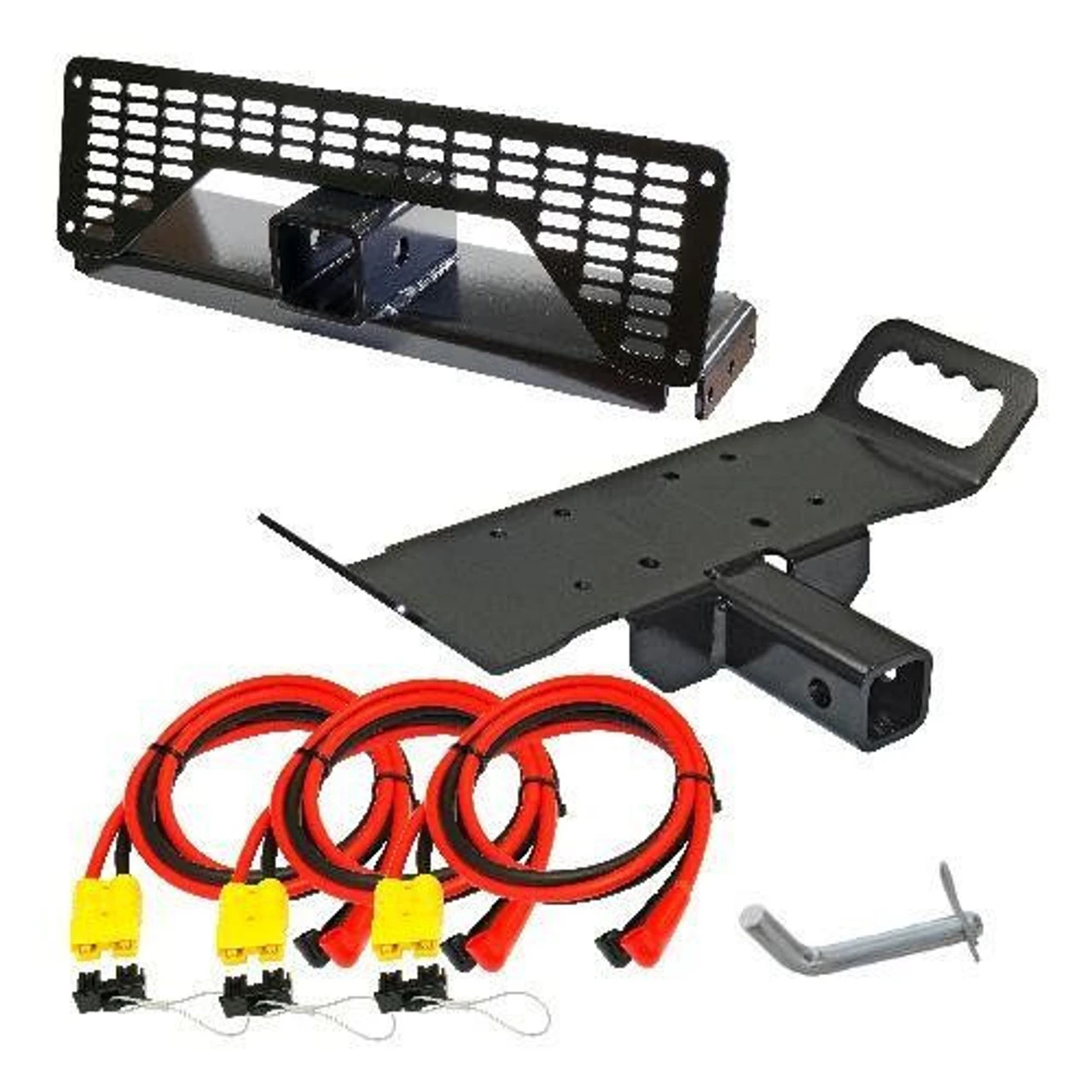

What’s Included:

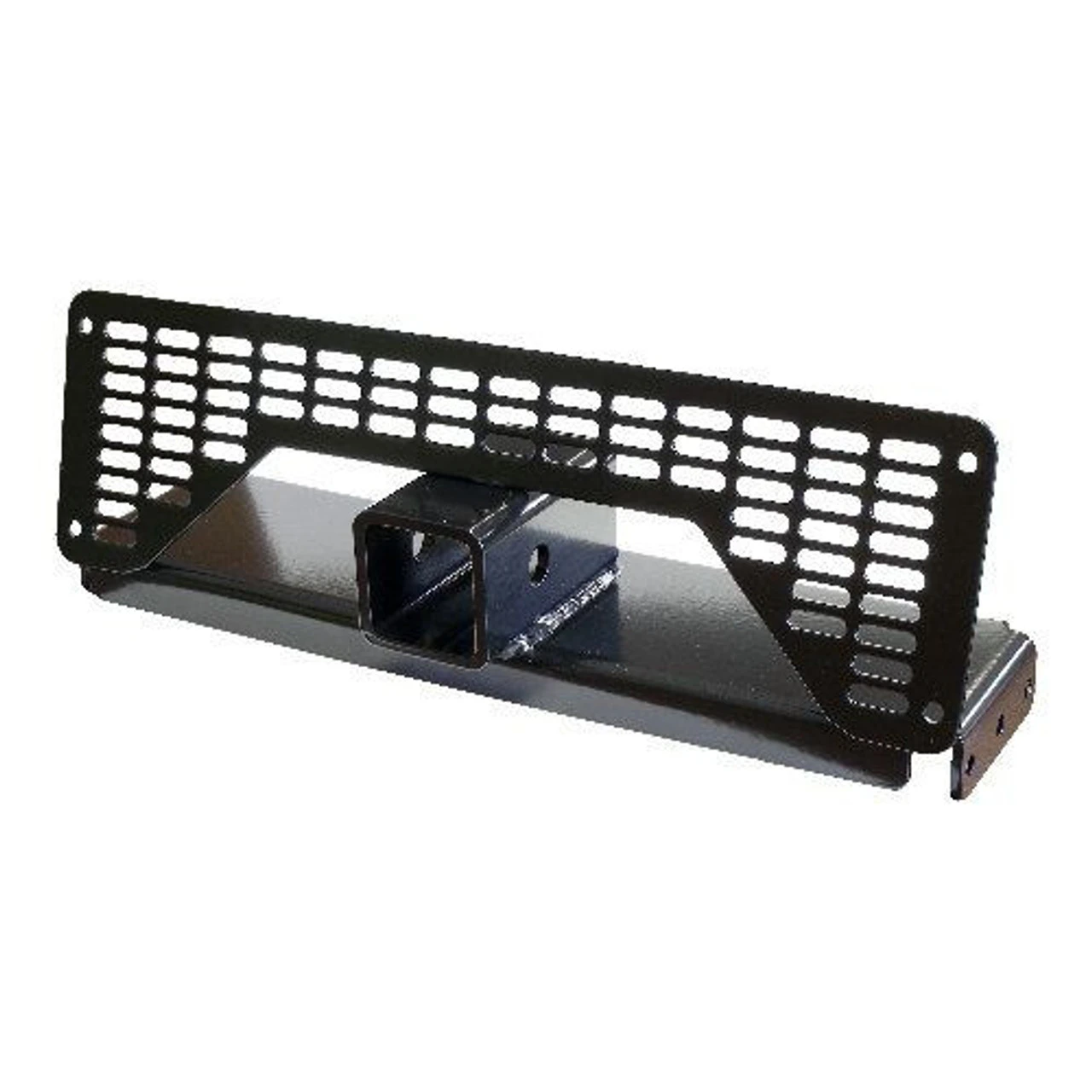

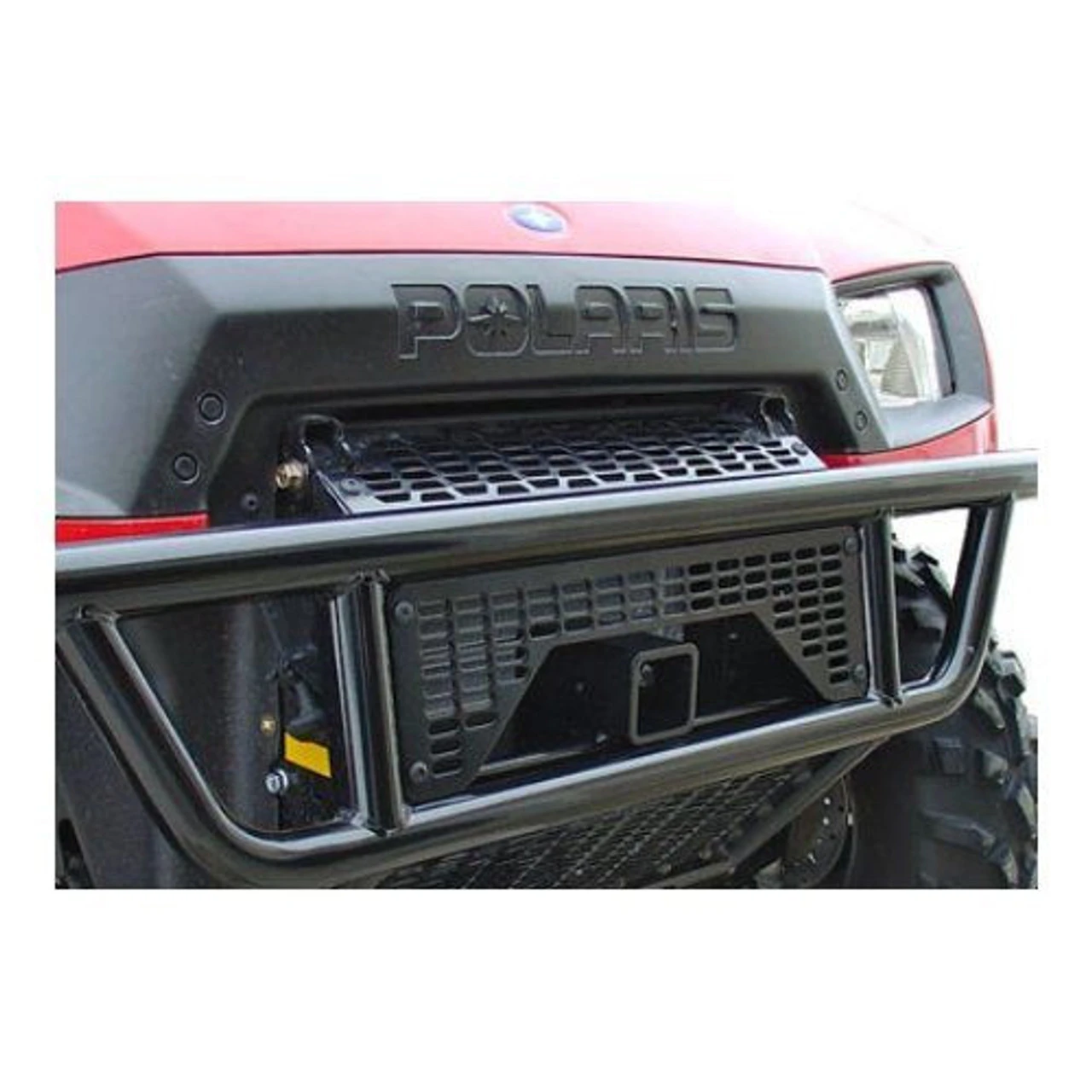

• (1) Front upper 2″ Receiver that mounts in the location shown in the picture (#100675).

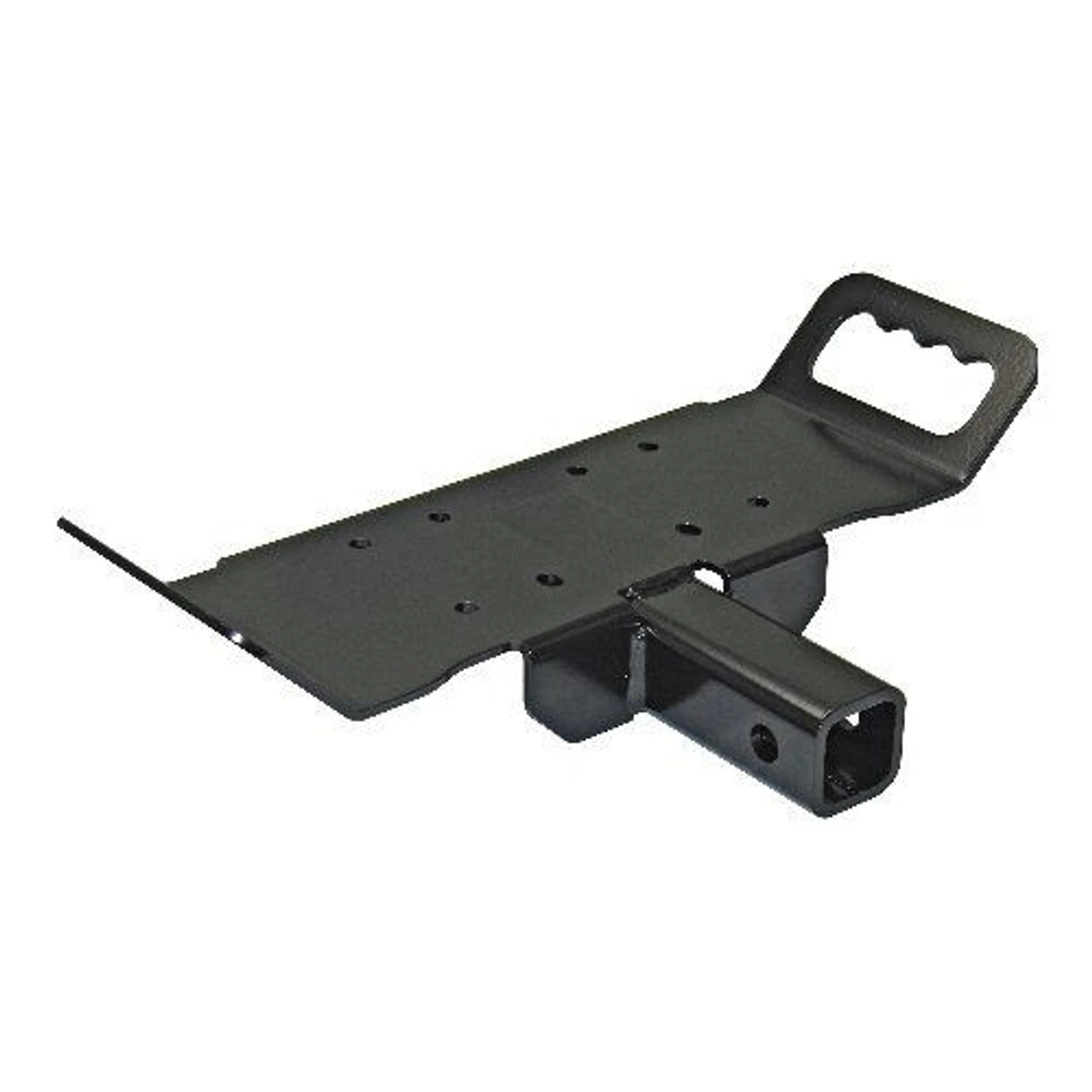

• (1) 2″ receiver Winch Mount (#100620)
• (1) 20″ Quick Connect that gets wired to your winch leads (#QC-20)
• (1) 48″ Quick Connect that goes from your winch contactor to the front of your Ranger (#QC-48)
• (1) 120″ Quick Connect that goes from your winch contactor to the rear of your Ranger (#QC-120
• (1) Standard 5/8″ Hitch Pin

Compatible Winches:

• KFI:ST17 / S2000 / A2500 / A3000 / U4500 / U4500w / SE25 / SE35 / SE45 / SE45w
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
• WARN:RT40 / XT40
• WARN:Vantage 4000lbs / Provantage 4500lbs
• RAMSEY :ATV2500 / ATV3000
• SUPERWINCH :Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK :1500lbs #2955AT
  -Requires a Fairlead with a 4.875″ Bolt Pattern(available if needed #ATV-RF)
• CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND :2000lb #68146
  -Requires the correct Fairlead with a 4.875″ Bolt Pattern(available if needed #ATV-RF)
  -Listed Models come with incorrect ATV Roller Fairleads
• BADLAND :3000lb #68145 / 5000lb #68144
• CHAMPION :C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 13501(reqires rollers) / 14061
• CHAMPION :14501 / 14551 / 14552 / 40252 (4500lbs)
• CHAMPION :10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145
  Requires the correct Fairlead with a 4.875″ Bolt Pattern(available if needed #ATV-RF)
  -Listed Models come with incorrect ATV Roller Fairleads
• CHAMPION:14001 and 14061
• SMITTYBILT :XRC 2.0
  -Requires the correct Fairlead with a 4.875″ Bolt Pattern (available if needed #ATV-RF)
  -Listed Models come with incorrect ATV Roller Fairleads
• SMITTYBILT :XRC 3.0
• XGEAR:X3000 / X4000
  -4-Hole Standard (3.00″ x 4.875″ bolt pattern)
• KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• VENOM:2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  -All with 3.00″ x 4.875″ Bolt Pattern mount-up
  -All with 3.00″ x 6.600″ Bolt Pattern mount-up
• Possibly Many others with the below standard Mounting patterns (call to confirm)
  -4-Hole (3.00″ x 4.875″ bolt pattern with Rollers that are 4.875″ bolt pattern)
  -4-Hole WIDE (3.00″ x 6.60″ bolt pattern with Rollers that are 6.600″ or 6.000″ bolt pattern)
  -2-Hole (3.10″ with Rollers that are 4.875″ bolt pattern)

NOTE:This mount requires a Roller Fairlead Bracket that comes with most of the winches out there.If your winch kit did not come with a fairlead bracket you will need KFI part#100495
