Polaris Ranger 570/9001000/SP570 Standard Series Complete Snow Plow Kit By Denali

DENALI Standard Series UTV Snow Plows are made to handle the toughest conditions including sand, snow, and ice. The “Easy-Connect” design created by MotoAlliance engineers makes attaching and detaching the plow an extremely easy process. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact.

Please Note: all DENALI UTV Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, Max or Midnight winch with an automatic brake.

Kit Contents:

• UTV Snow Plow Blade – Straight
• Pushtubes
• Wearbar
• Skid Feet
• Installation Hardware and Instructions

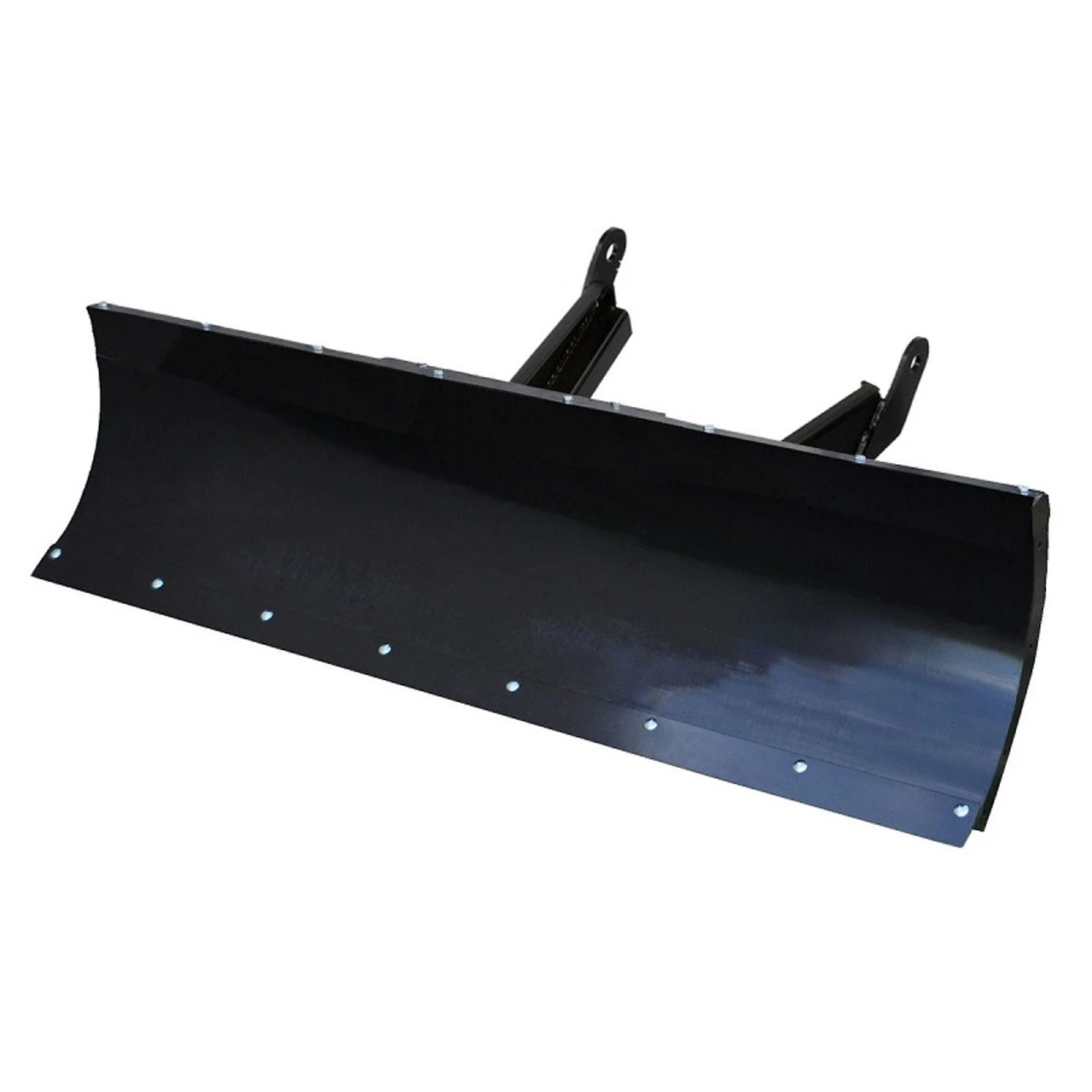

Blade Features:

• Snow Plow Blade (19 inches scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
• Four 7 gauge ribs run the full height of the blade
• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
• 65° attack angle and over center design ensures snow rolls up and is thrown forward
• Replaceable 7gauge steel wear bar included with every kit
• Height and angle adjustable skid feet included
• 3 Year Warranty

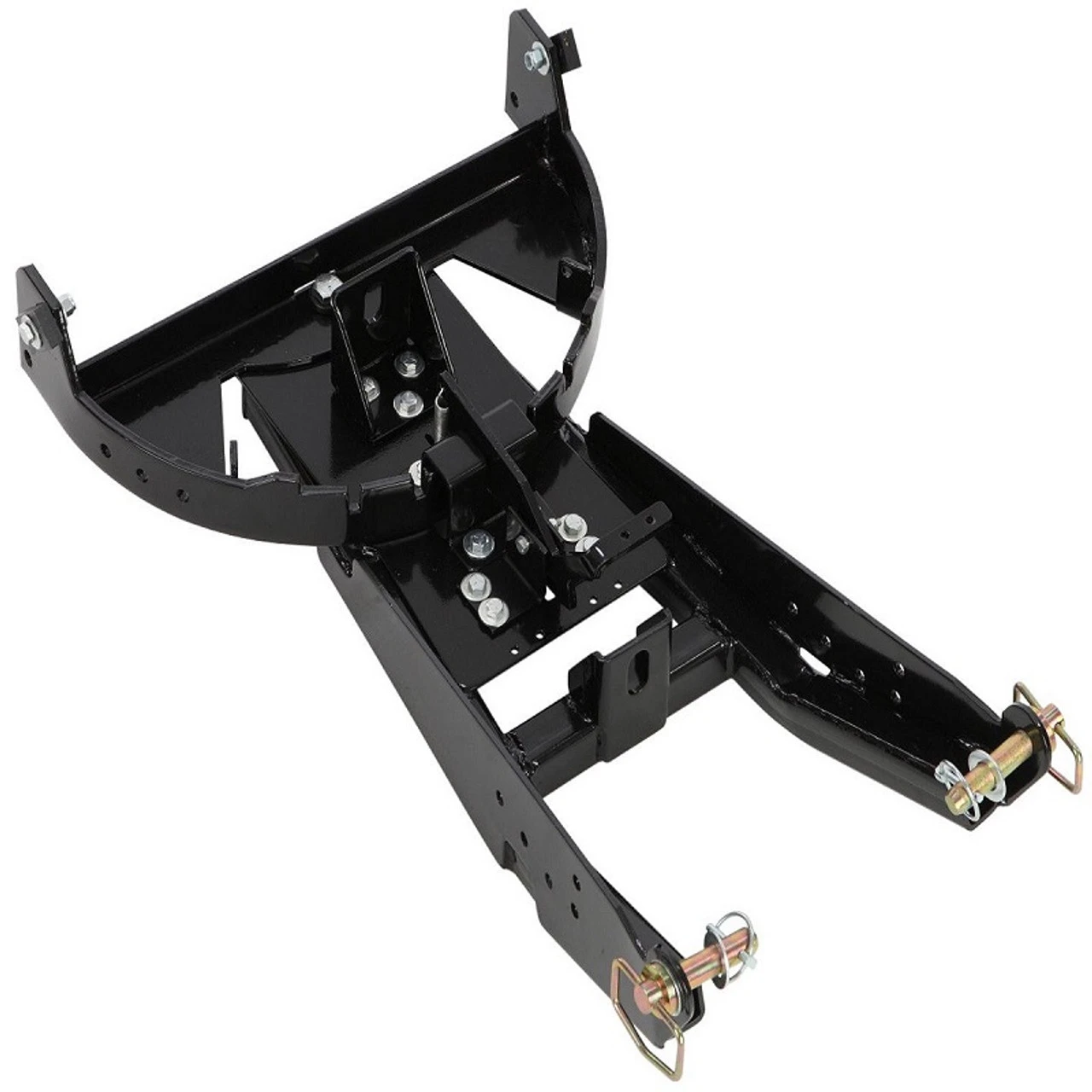

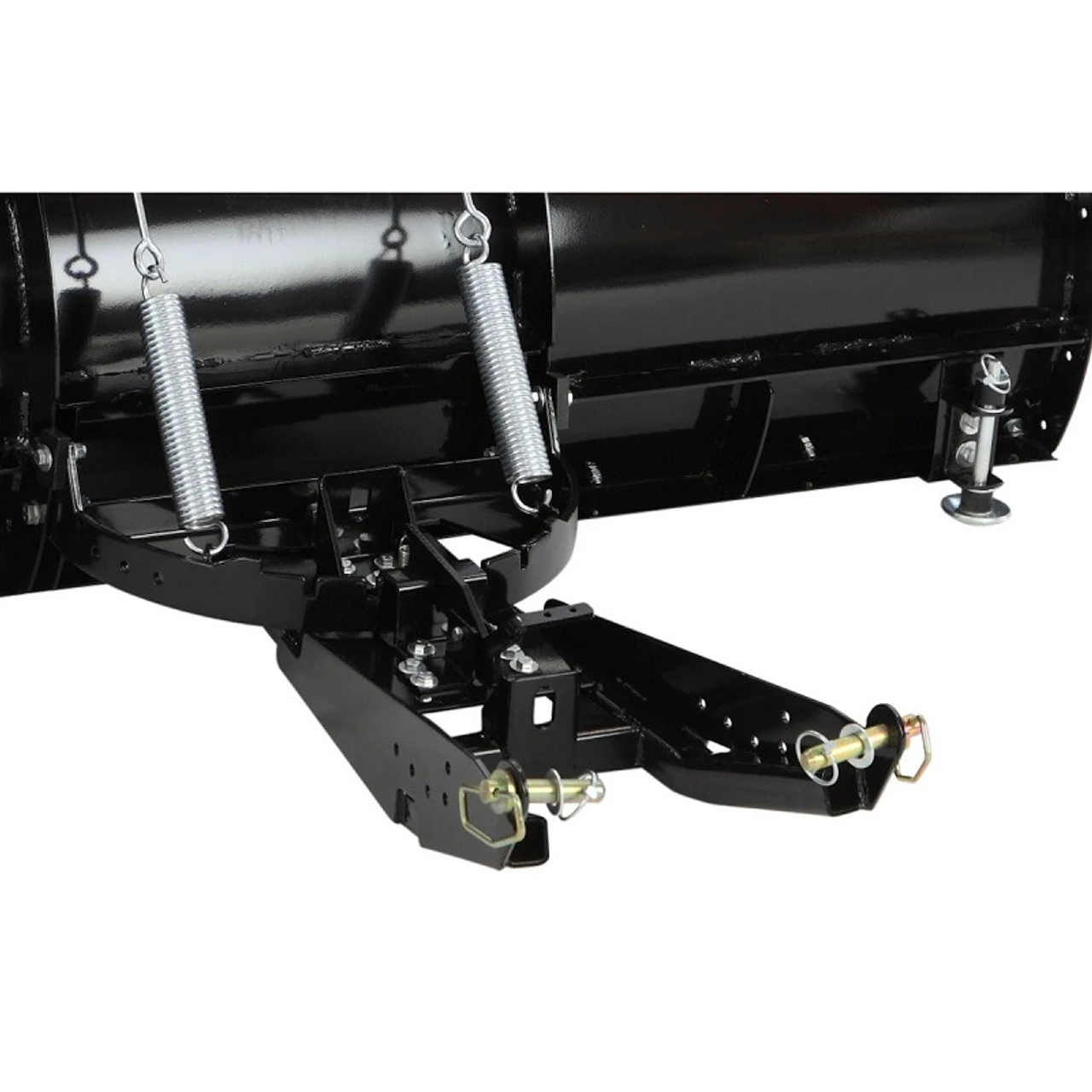

Pushtube and Lift Kit Features:

• Impact Resistant Reinforced Pivot Assembly – 2 additional support bars for maximum durability & strength

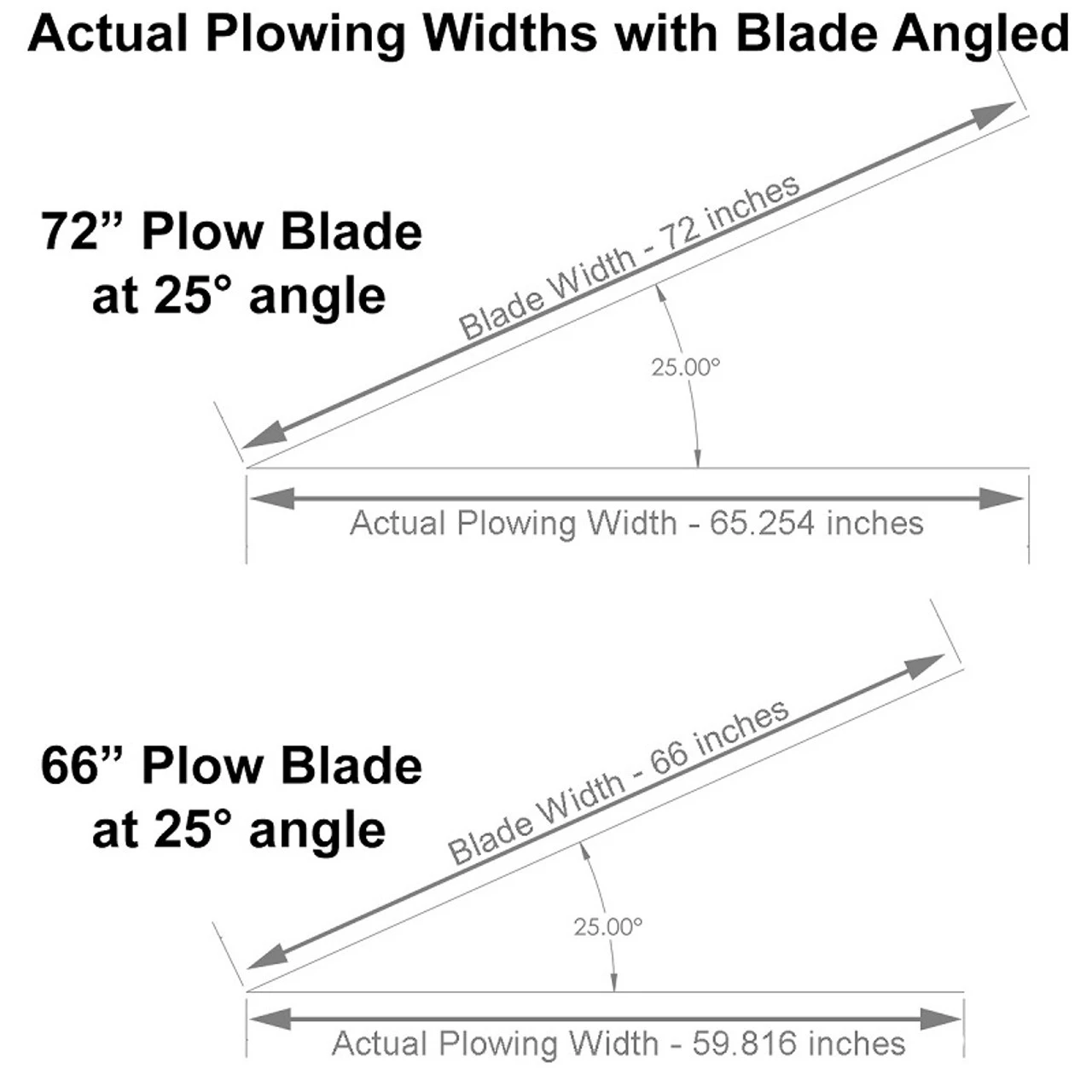

• Turn system allows you to easily position your plow in 10 different angles – 0, 12.5°, 25°
• Simple detachment system with the pull of a pin
• Structural tube steel cross bar for added lateral rigidity
• Quick Release Pins included
• Pushtube Lift Kits bolt directly to the pushtubes, providing 2 or 4 inches of lift
• Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
• Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)
• Extended Push Tubes are designed to be used with SxS/UTVs that have tracks

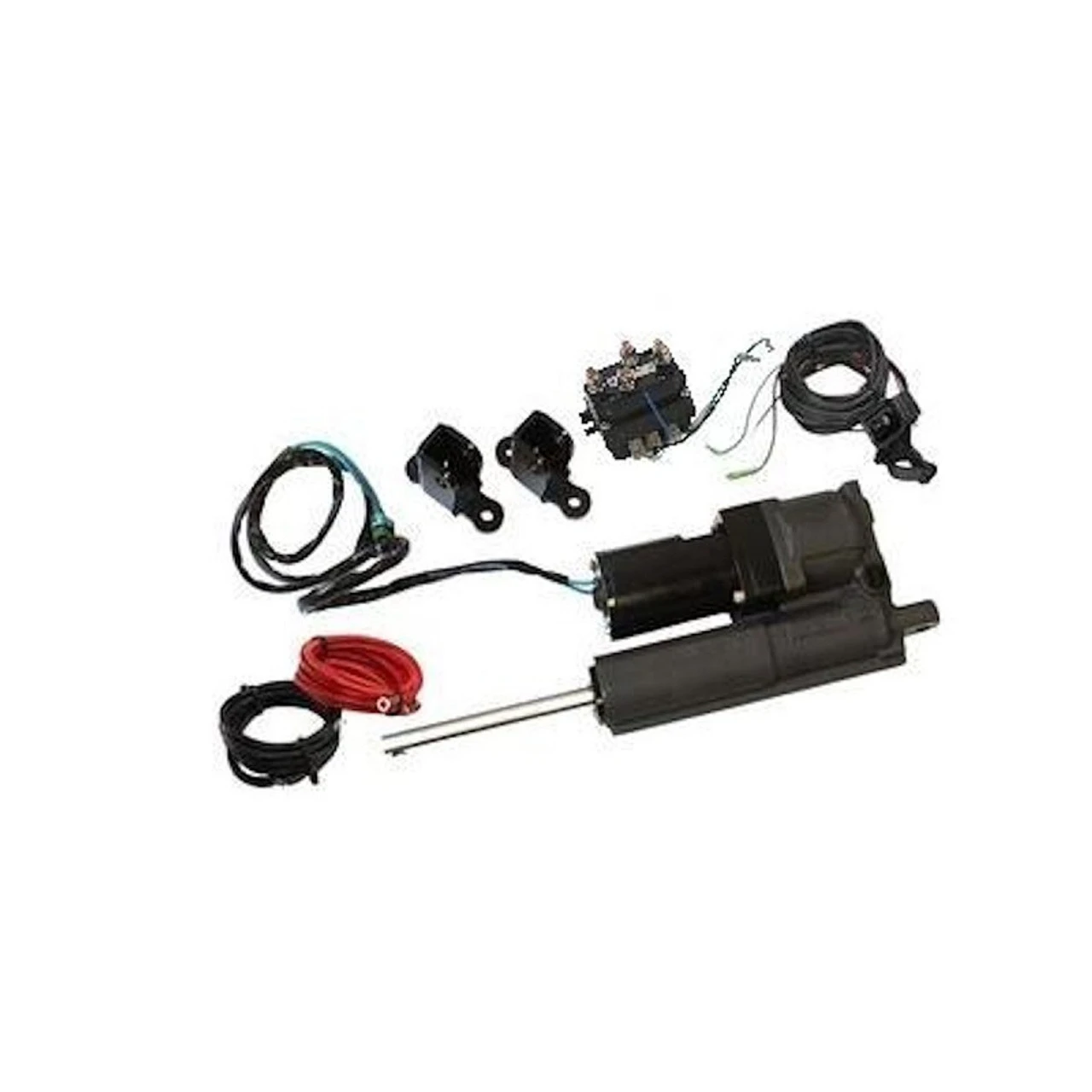

Optional Hydroturn Features:

• Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
• Change the blade angle while driving; full radius turn in just 5 seconds
• Heavy duty chrome plated ¾″ cylinder shaft
• No modifications necessary – bolts directly to the Denali UTV Plow Push Tubes
• Wire harness utilizes weatherproof connectors

Optional Plow Pulley Fairlead Features:

• Roller
• Replaces the winch fairlead during the plow season
• For use with Steel AND Synthetic cables
• Curved cable groove helps eliminate flattening and breaking of cable
• Bolt Patterns:

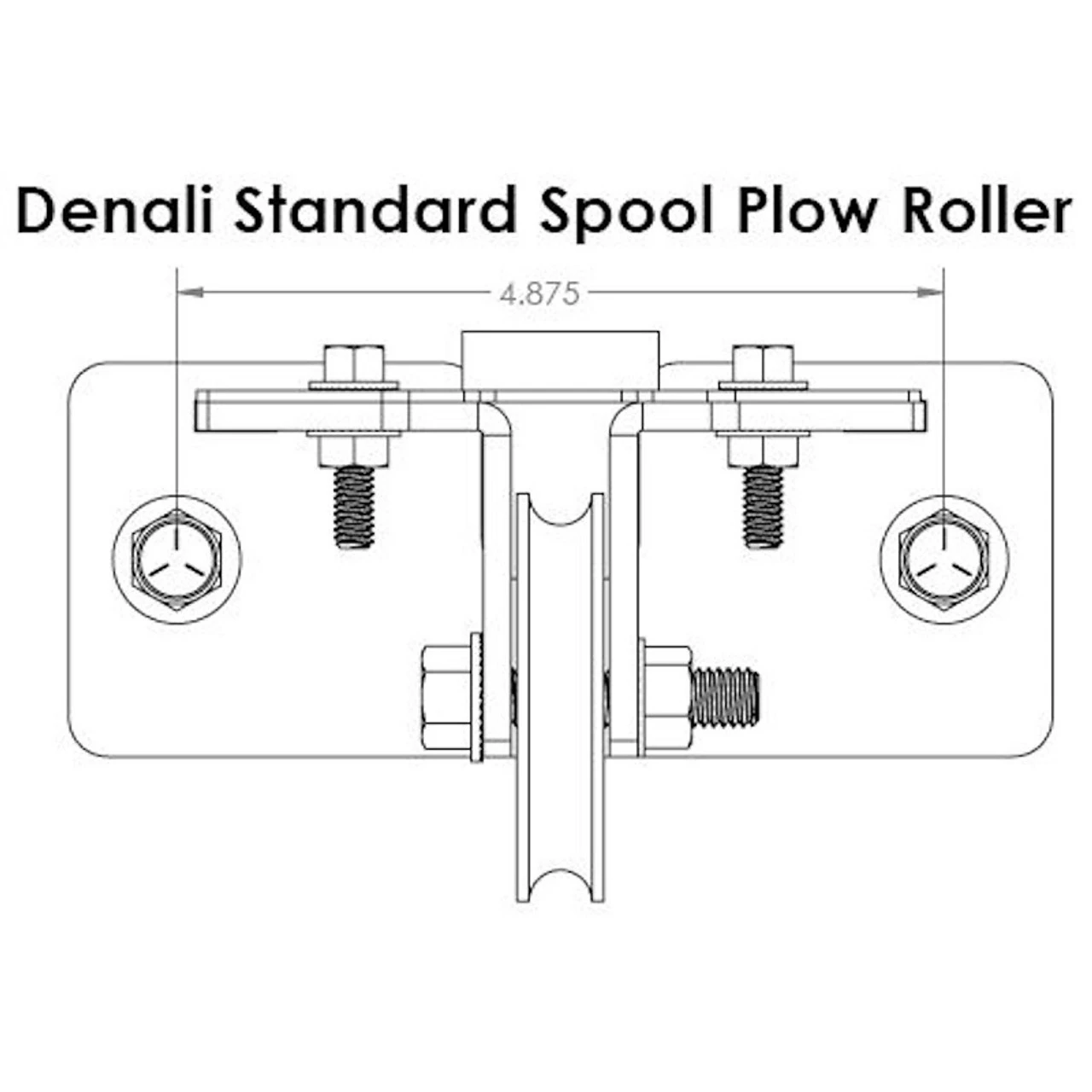

• Standard Spool: 3″ x 4.875″

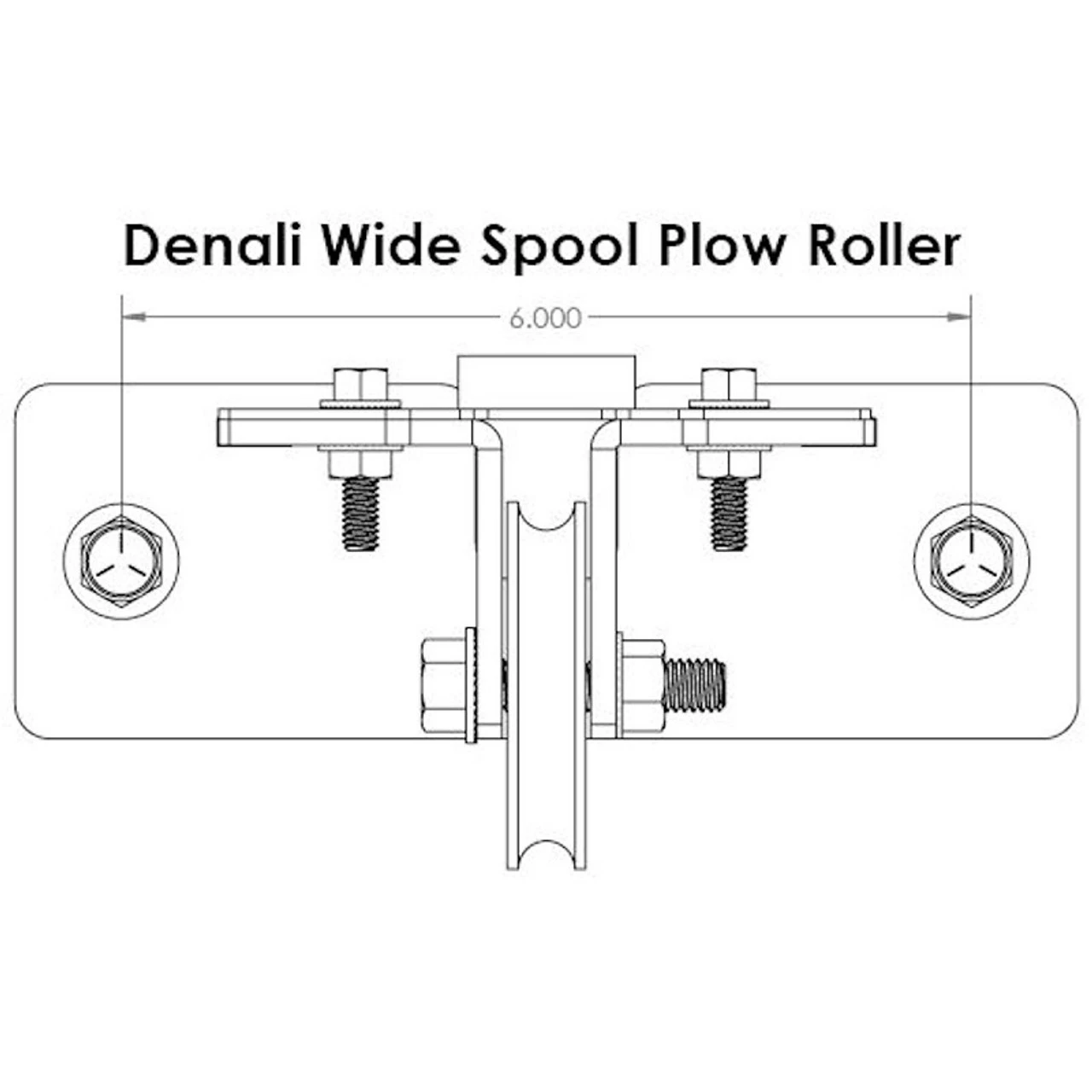

• Wide Spool: 3″ x 6.67″

• Sheave
• Includes pulley, 1/4″ clevis hook and nylon strap
• Allows greater precision when raising/lowering plow blade and increases the angle of pull

• Cable
• 12′ length, 1/4″ diameter
• Single braid, dyneema rope with galvanized steel thimble/eyelet

Featured Blog Post: Learn more about snow plows, snow plow blades, and complete snow plow kits to get the perfect snow-removal setup for your needs and your Polaris Ranger.
