Polaris Ranger 900/1000/Diesel Pro Series Complete Snow Plow Kit By Denali

DENALI Pro Series UTV Snow Plows are ready for the snow season! Our team of engineers designed a Cadillac plow at a reasonable price so you don’t have to skimp on quality to save money. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV and SxS, preventing damage to the front end or other vehicle parts from sudden impact.

Please Note: All DENALI Snow Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, Max or Midnight winch with an automatic brake.

Kit Contents:

• UTV Snow Plow Blade – County / DOT Style
• UTV Pushtubes
• Plow Mount (MA11704)
• Installation Hardware and Instructions

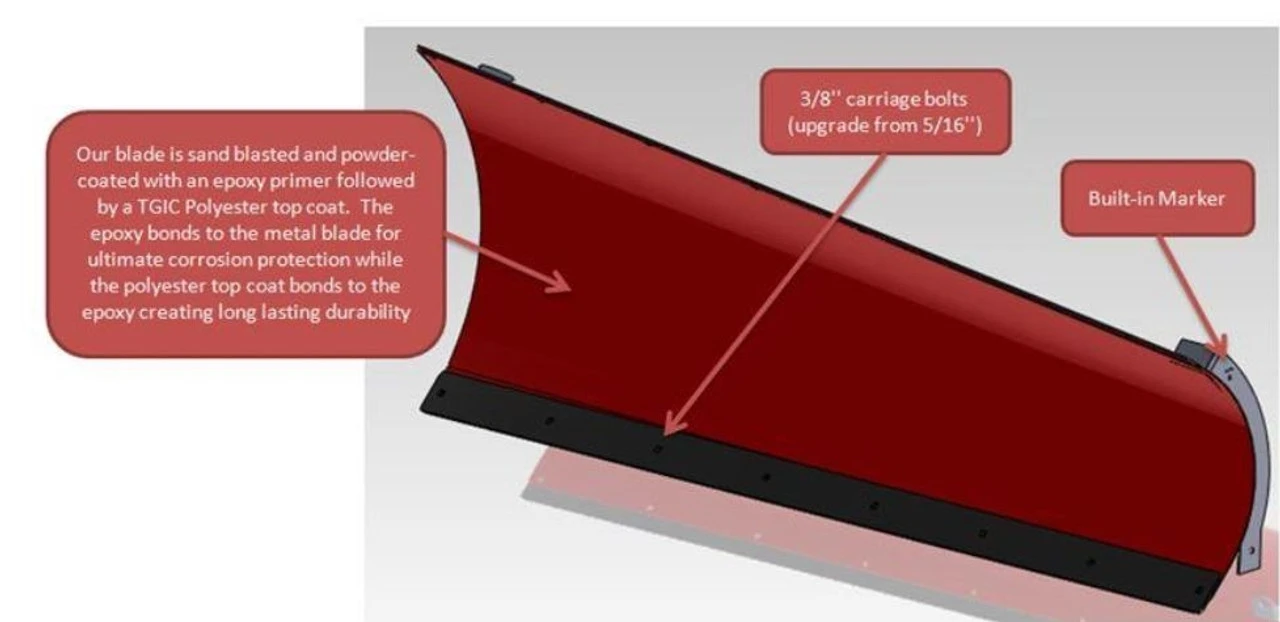

Blade Features:

• County-style blade (curved design) cuts wet snow & throws powder; made of 12-gauge steel
• Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
• Sand-blasted powder coat with epoxy primer & TGIC Polyester top coat for corrosion protection, UV resistance and durability
• High strength, high yield 3/16 thick Grade 50 steel wear bar
• Angled Blade : 16 on the low side; 23 on the high side
• Rubber flap & stabilizer bar with rubber flap
• Height AND angle adjustable steel skid feet
• 3 Year Warranty
• Made in the USA

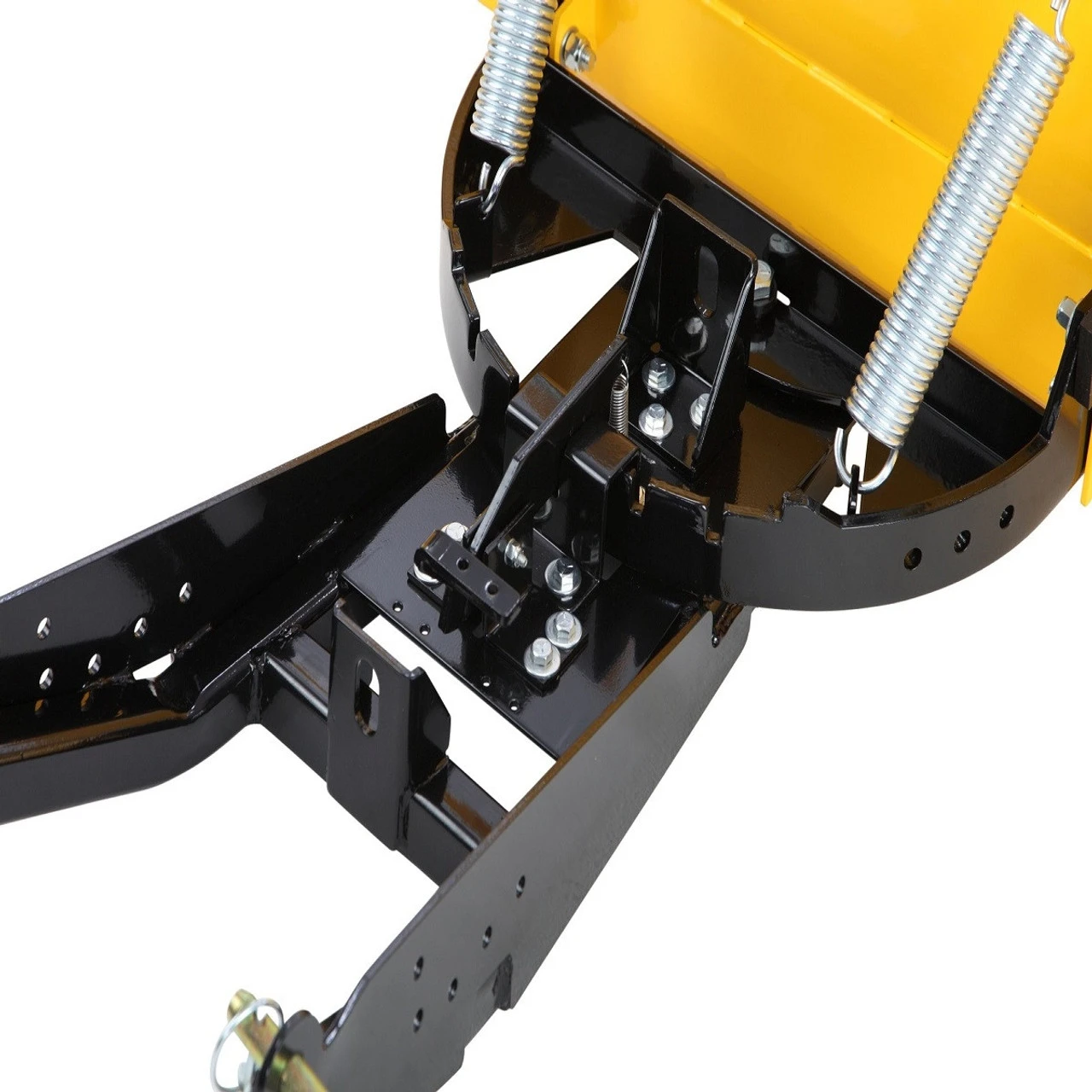

Pushtube Features:

• Impact Resistant Reinforced Pivot Assembly – 2 additional support bars for maximum durability & strength
• Turn system allows for easy positioning of the blade in 5 different angles – 0, 12.5°, 25°
• Simple detachment system with the pull of a pin
• Structural tube steel cross bar for added lateral rigidity
• Quick release pins included
• Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
• Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)
• Extended Push Tubes are designed to be used with SxS/UTVs that have tracks

Optional Hydro turn Features:

• Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
• Change the blade angle while driving; full radius turn in just 10 seconds
• Heavy duty chrome plated ¾″cylinder shaft
• No modifications necessary – bolts directly to the Denali UTV Plow Push Tubes
• Wire harness utilizes weatherproof connectors

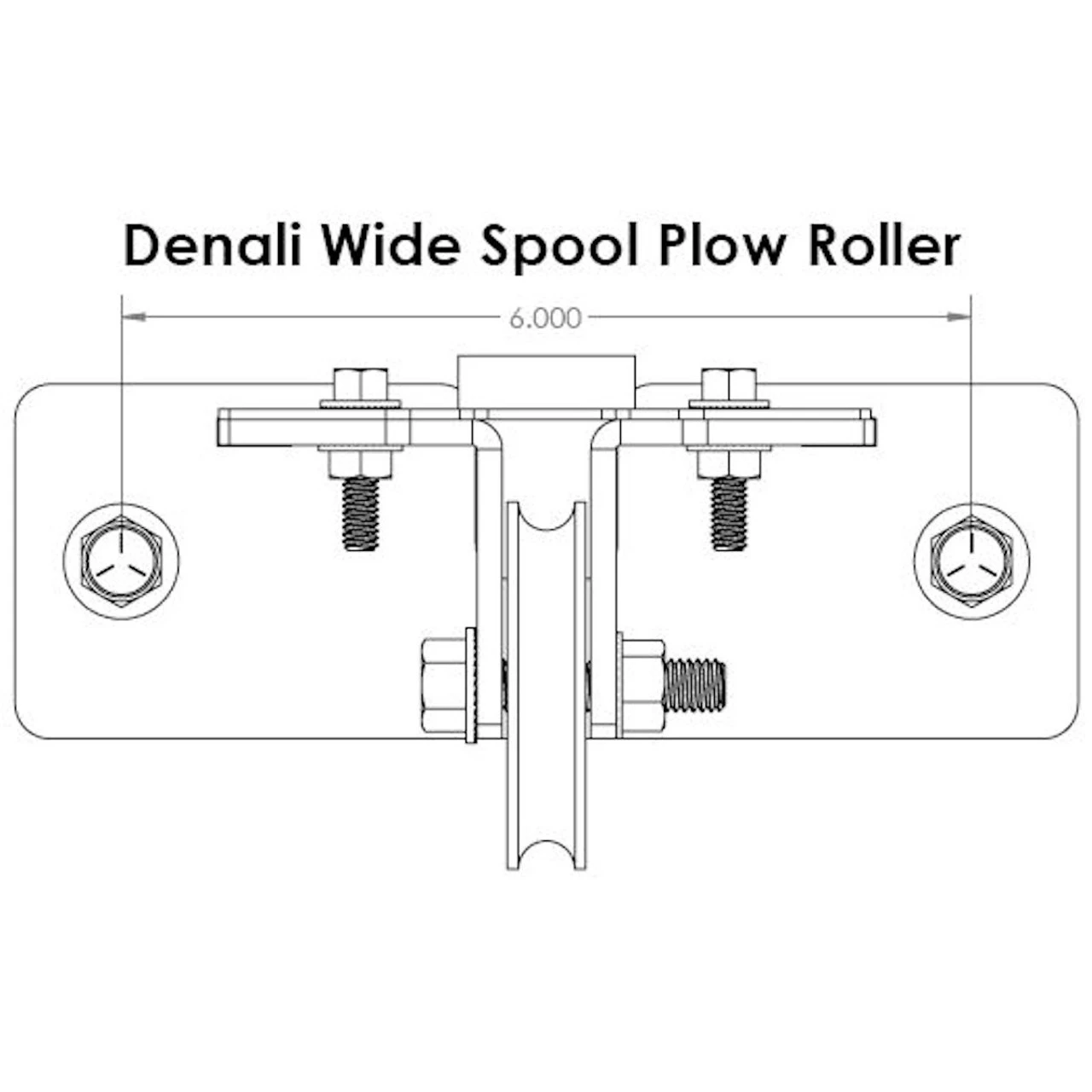

Optional Plow Pulley Fairlead Features:

• Roller
• Replaces the winch fairlead during the plow season
• For use with Steel AND Synthetic cables
• Curved cable groove helps eliminate flattening and breaking of cable
• Bolt Patterns:
• Standard Spool: 3″ x 4.875″
• Wide Spool: 3″ x 6.67″

• Sheave
• Includes pulley, 1/4″ clevis hook and nylon strap
• Allows greater precision when raising/lowering plow blade and increases the angle of pull

• Cable
• 12′ prime; length, 1/4″ diameter
• Single braid, dyneema rope with galvanized steel thimble/eyelet
