Polaris Ranger 900/1000 Front Winch Bumper & Smittybilt Winch 10K By High Lifter

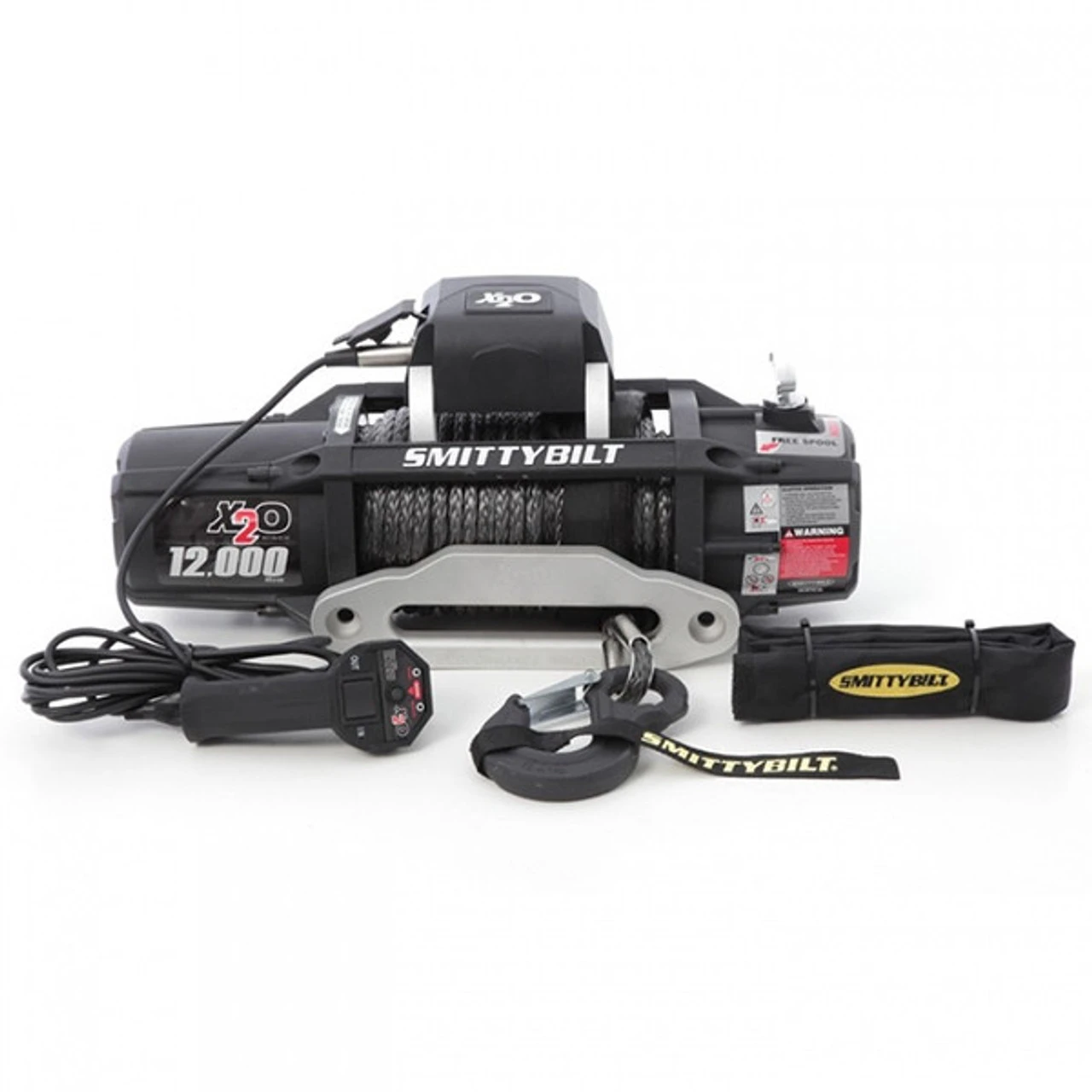

The Smittybilt X2O Winches have been enhanced in almost every area for increased performance and trouble-free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O winch features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning-fast line speeds. If you’re looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.

X20 Technical Details

• Waterproofing: IP68 Rating
• Motor: 6.6hp Series Wound
• Control: Remote Switch, 12’ (3.7m) lead
• Gear Train: 3-Stage Planetary
• Clutch: Sliding Ring Gear
• Brake: Automatic Out-Of-Drum
• Drum Size: Diameter 2.5”
• Cable Type: Synthetic Rope
• Fairlead: Hawse
• Remote Control: Included
• Recommended Battery: 650CCA Minimum for Winching
• Battery Leads: 25mm2, 72” (1.83m)1
• Finish: Textured Black
• Weight: 67.0Lbs (30.4Kgs)
• Mounting Bolt Pattern: 10.0” x 4.50”
• Overall Dimensions: (L x W x H) 22.3” x 5.4” x 9.4”

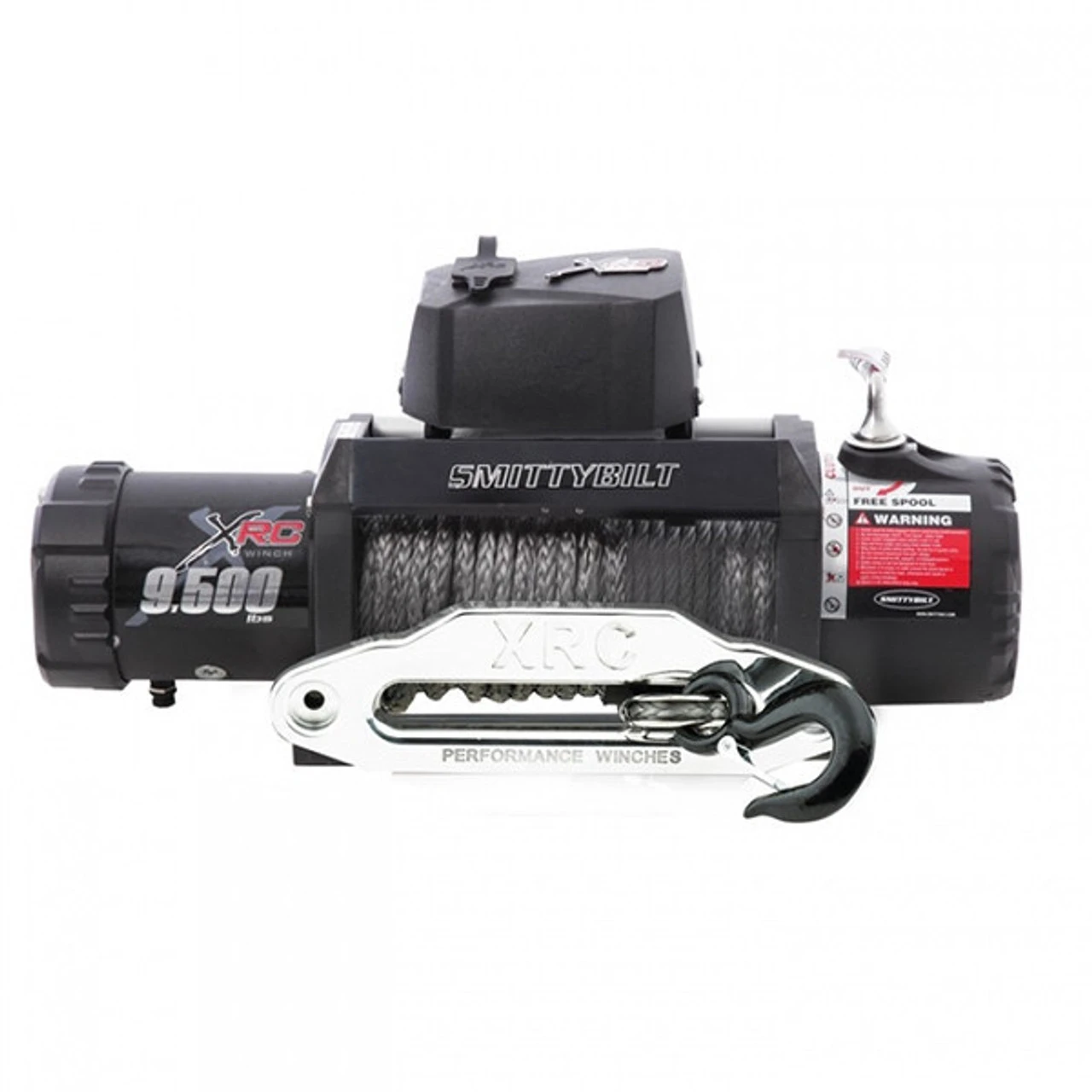

The Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilts XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is finished in a rugged UV-Resistant matte black coating with stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime. Every XRC winch includes a heavy-duty winch controller, fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you’re looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation. Winch includes a Lifetime Mechanical Warranty and 3 Year Electrical Warranty.

XRC Technical Details

• Waterproofing: IP67 Rating
• Fairlead: Hawse
• Remote Control: Included
• Motor: 6.6hp Series Wound
• Recommended Battery: 650CCA Minimum for Winching
• Control: Remote Switch, 12’ (3.7m) lead
• Battery Leads: 25mm, 72″(1.83m)
• Gear Train: 3-Stage Planetary
• Finish: Textured Black
• Clutch: Sliding Ring Gear Mounting
• Bolt Pattern: 10.0″ x 4.50″
• Brake: Automatic In-Drum
• Drum Size: Diameter 2.5″
• Cable Type: Synthetic Rope

Front Winch Bumper Features:-

• Made from 1/8″ thick and 3/16″ thick steel.
• Powder coated texture black for superior protection.
• Mounts in front of the radiator.
• Allows you to mount your winch up high out of the mud and water.
• Top Mounting Accepts both wide Spool UTV Winches (6-5/8” x 3” deep, bolt pattern) and Standard Spool UTV Winches (4-7/8” Wide x 3” Deep, Bolt Pattern).

Note: This High Lifter 10K front winch bumper includes the required hardware to bolt this bumper to your side x side that is listed in our applications. This bumper does not include any winch mounting hardware
