Polaris Ranger Complete Snow Plow Kit By KFI

Polaris Ranger Complete Snow Plow Kit by KFI

Clear your big driveway or move gravel, dirt, and more faster and easier than ever by adding this easy-to-install Snow Plow Kit! KFI uses only top-grade steel construction and quality-made components for year after year of reliable plowing.

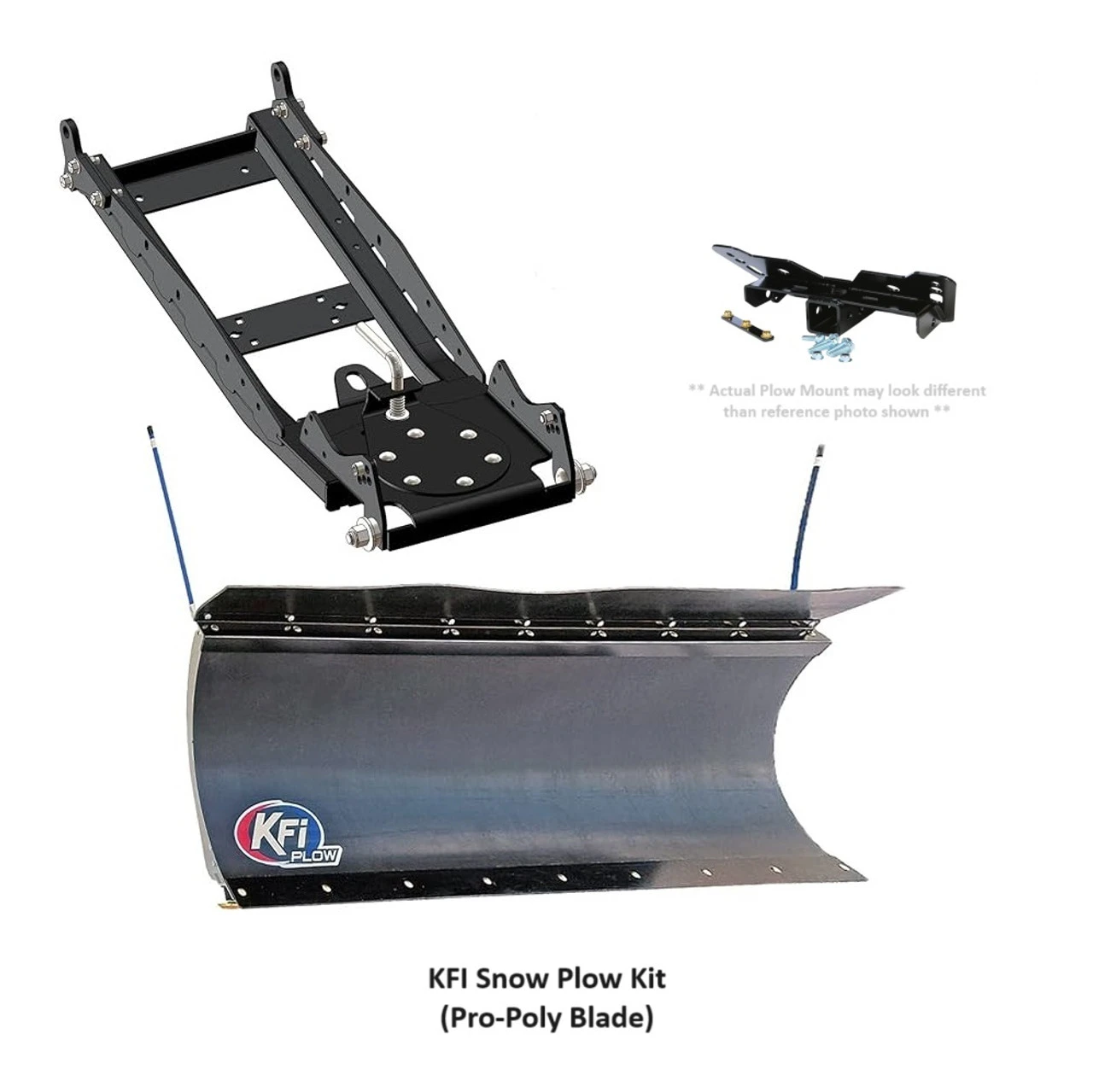

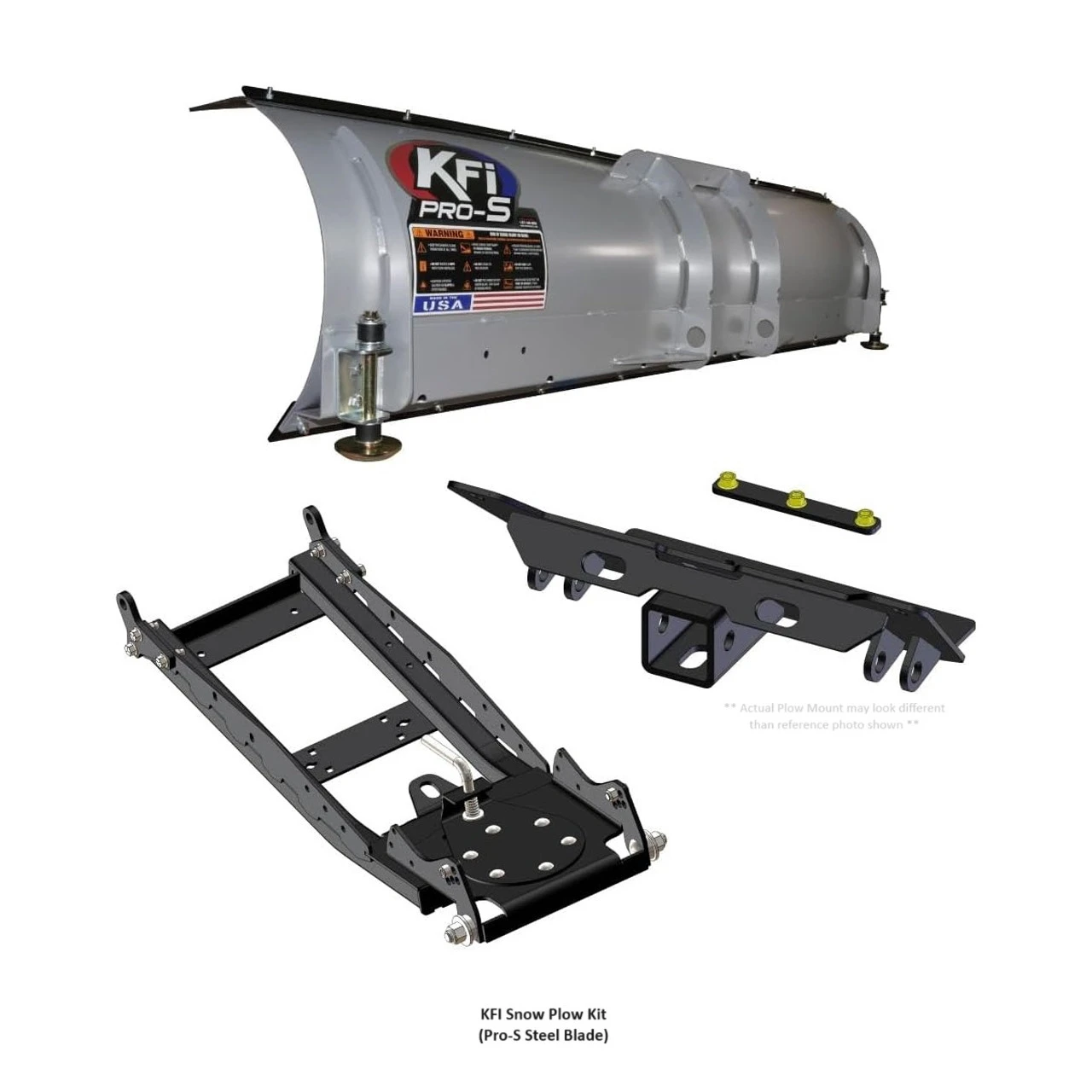

Kit includes:

• (1) Plow Blade (your choice of size)
• (1) UTV Push Tube
• (1) Vehicle Specific Mount (make sure to select your correct vehicle above)

Important Notes:

• Does NOT include winch or winch mount
• Most Ranger Plow Mounts include lower 2″ Receiver Hitch, some Ranger models and All General models do not
• Requires Stock Front Bumper
• 60″ blades do not include 2-ply top rubber flap, must be purchased separately
• Does NOT work with all High Lifter Editions or Waterfowl Editions

All Plow Components Feature:

• Complete installation instructions included
• All mounting hardware included
• Powdercoated for maximum durability
• Unlike all other Plow competitors, our components are metal bead blasted before they are powder coated for the best possible finish prep.
• 100% Made in the USA

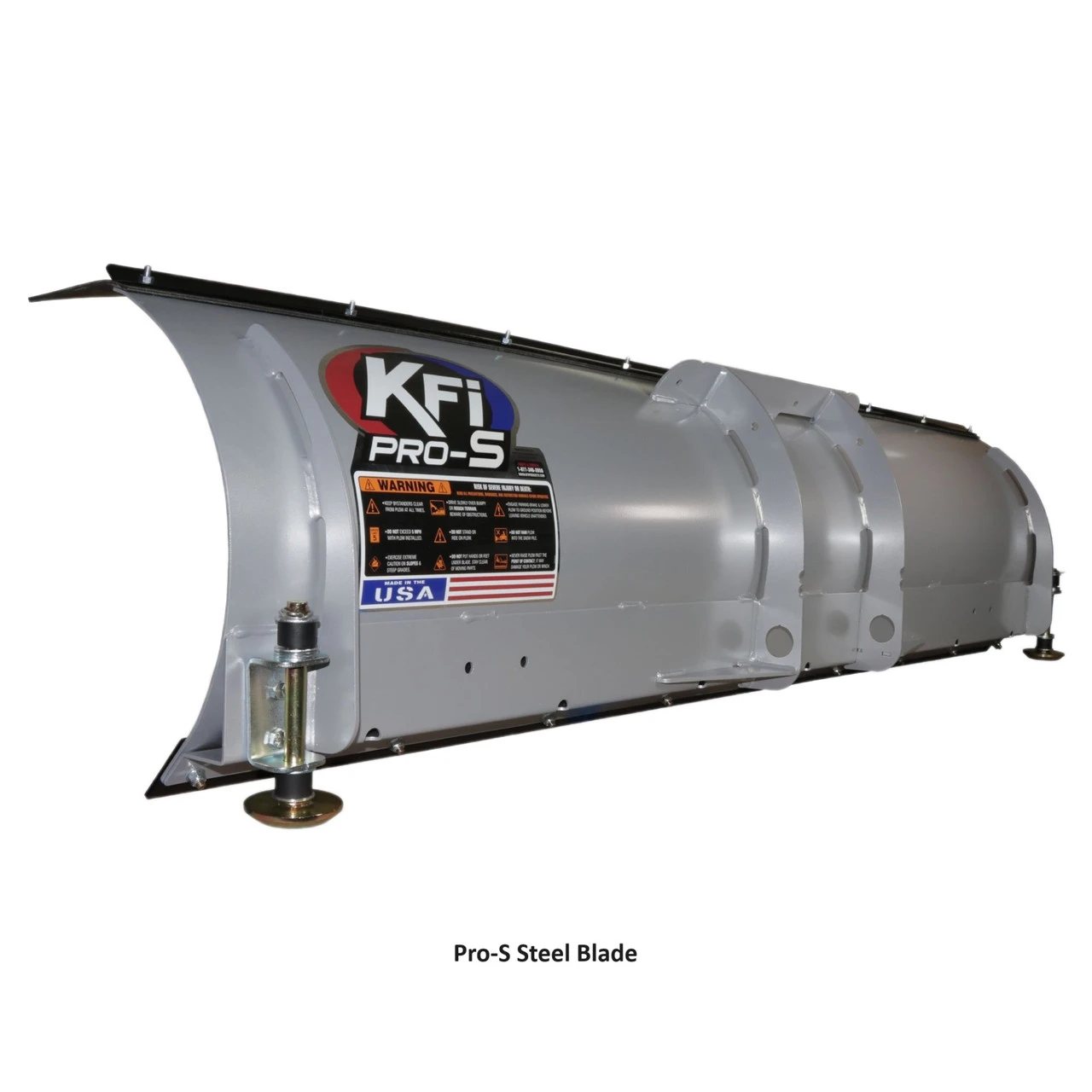

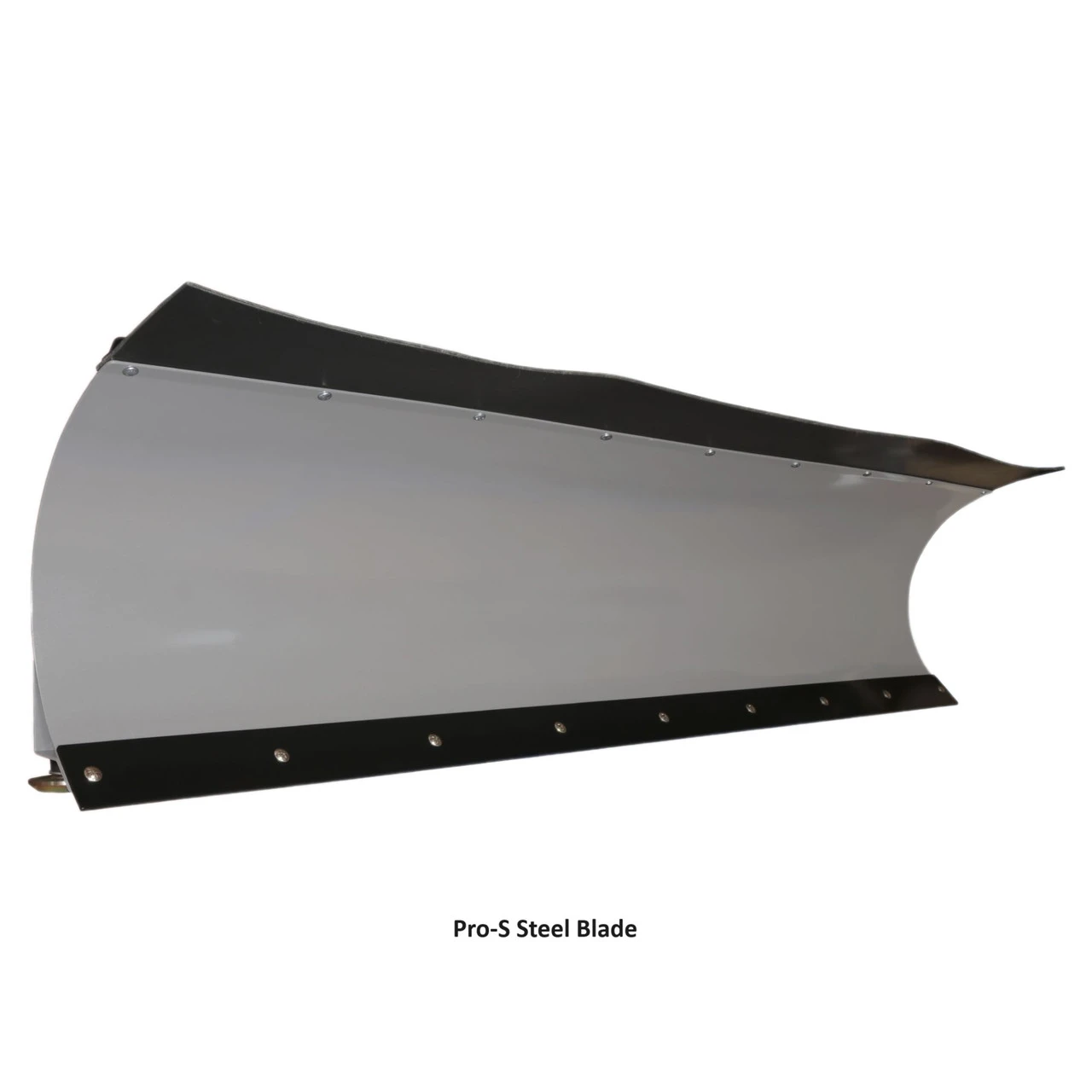

Straight Blade Specifications:

• Available sizes:
  • 60″ ATV / UTV Pro-S Series Plow Blade (Straight) – #105060 – (75 lbs.)
  • 66″ UTV Pro-S Series Plow Blade (Straight) – #105066 – (81 lbs.)
  • 72″ UTV Pro-S Series Plow Blade (Straight) – #105072 – (85 lbs.)
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width
• The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap

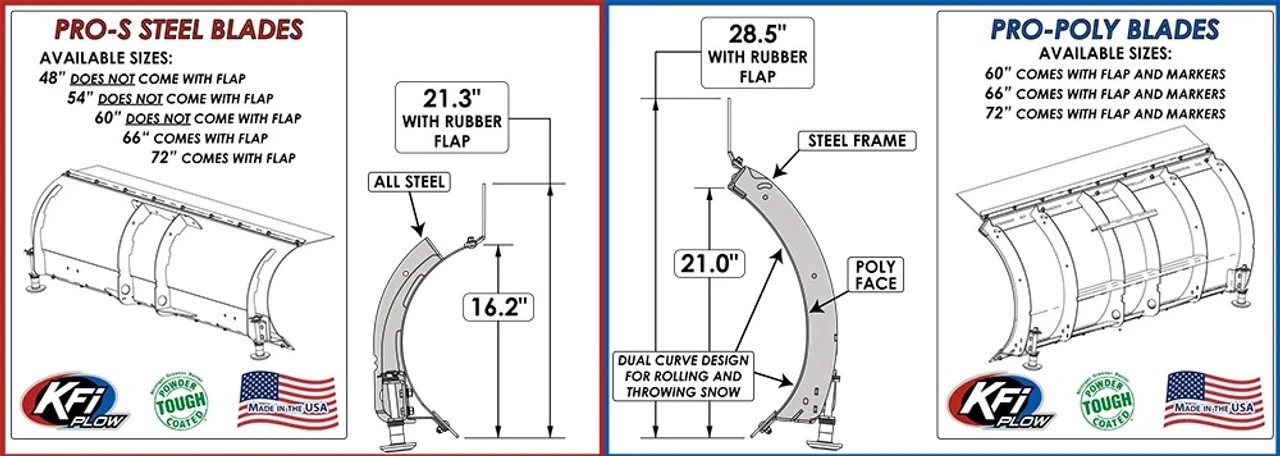

• Measures 16” Vertical blade face height with an approximate 21” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3″-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts

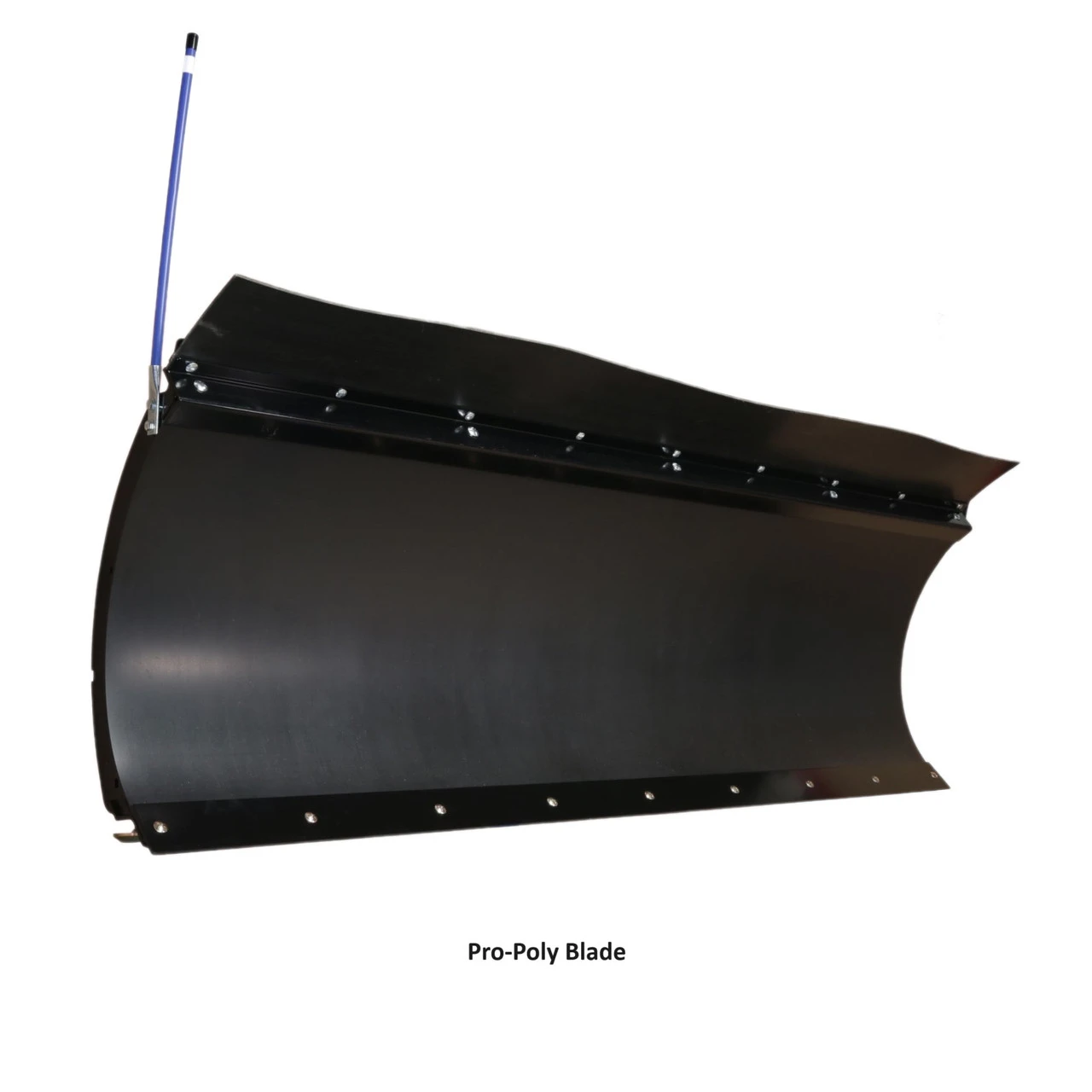

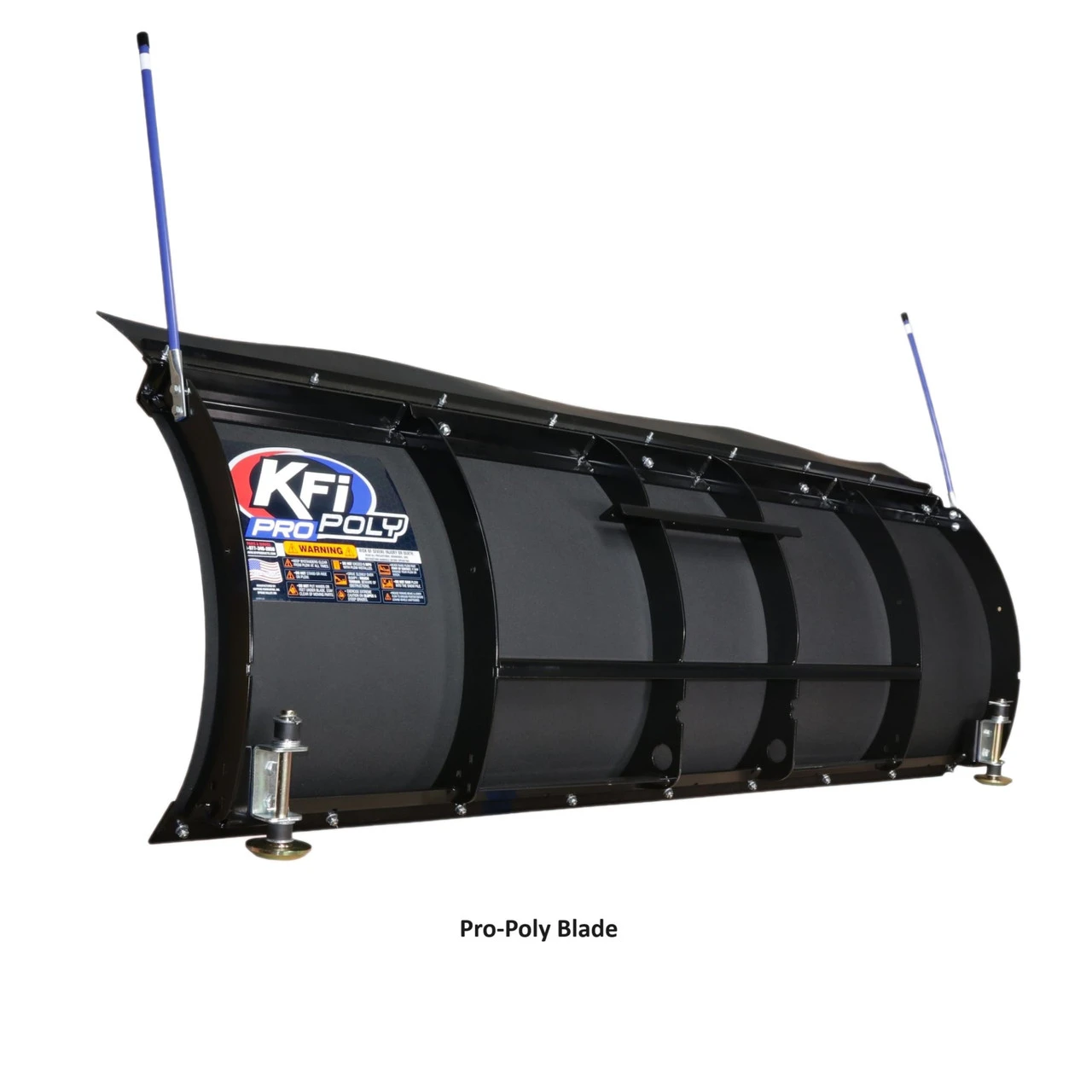

 UTV Poly Blade Specifications:

• Available sizes:
• 60″ ATV / UTV Pro-Poly Series Plow Blade – #105860 – (81 lbs.)
• 66″ UTV Pro-Poly Series Plow Blade – #105866 – (82 lbs.)
• 72″ UTV Pro-Poly Series Plow Blade – #105872 – (87 lbs.)
• Includes a 7″ high 2-ply top rubber flap
• Dual Curvature face for supreme snow moving
• Measures 21” Vertical blade face height with an approximate 27” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3″-diameter grade-50 steel skid plates
• Flexible Heavy Duty Black Poly face
• 3/16” Grade 50 Steel Rib and Frame construction
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• Works with KFI ATV & UTV Tubes
• Includes Plow Markers

Pro 2.0 UTV Push Tube (106300):

• Improved Manufacturing
• Easier Install for All Plow Accessories
• Added 2.5″ Of Overall Length
• Works With All KFI Plows
• Front Mount Design with 30″+ of lift height
• Heavy Duty 1-1/2″ 12 Gage Square Steel Tubing
• Heavy Duty 1/4″ Thick 1-1/2″ Diameter Grade 50 Pivot Bushings
• 6″ Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five-degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees

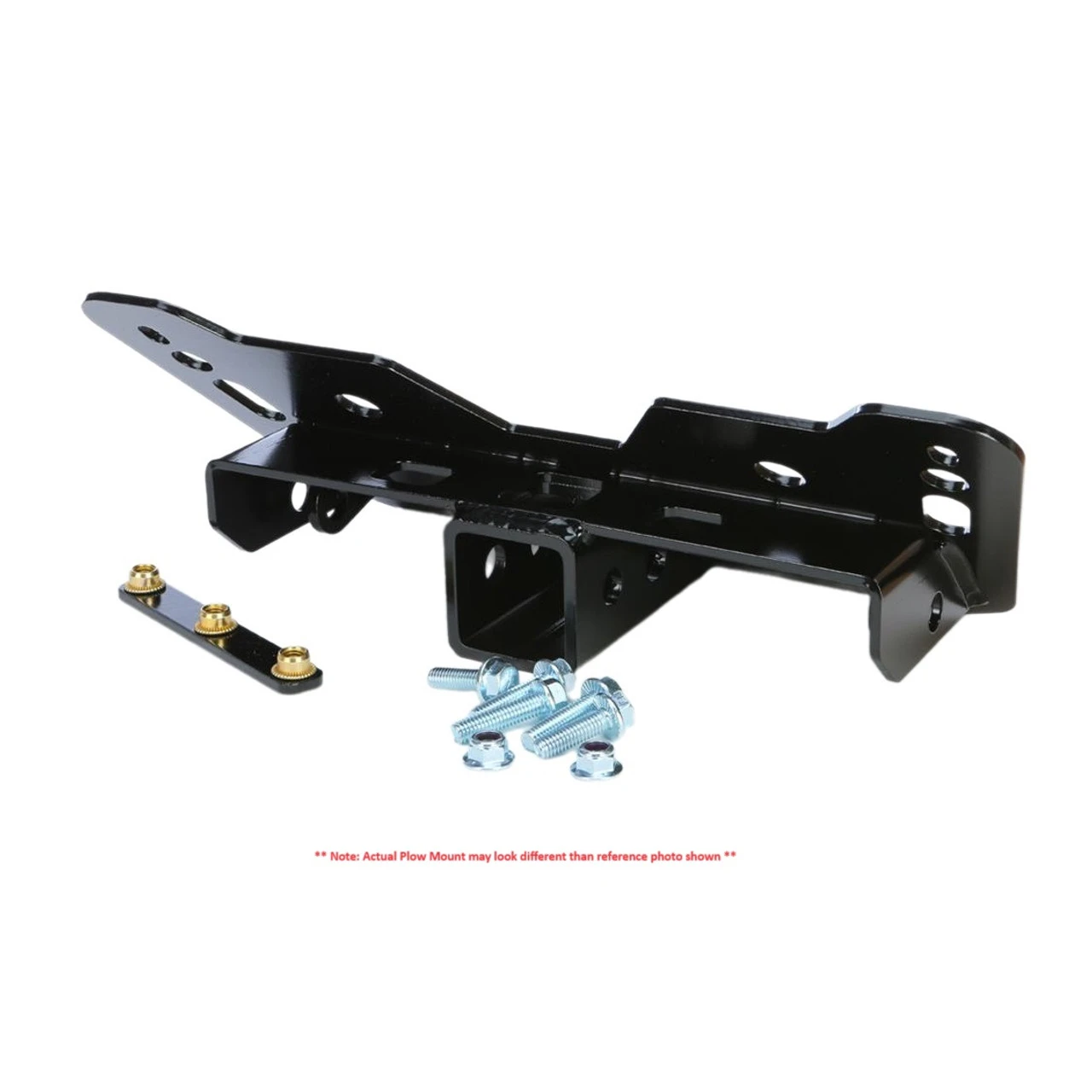

Model Specific Plow Mount:

• Front-Mount System
• Plate constructed from 3/16″ Grade 50 Steel
• All Pin Tabs are constructed from 1/4″ Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding

** Actual Plow Mount may look different than reference photo shown **

OPTIONAL ADD-ONS

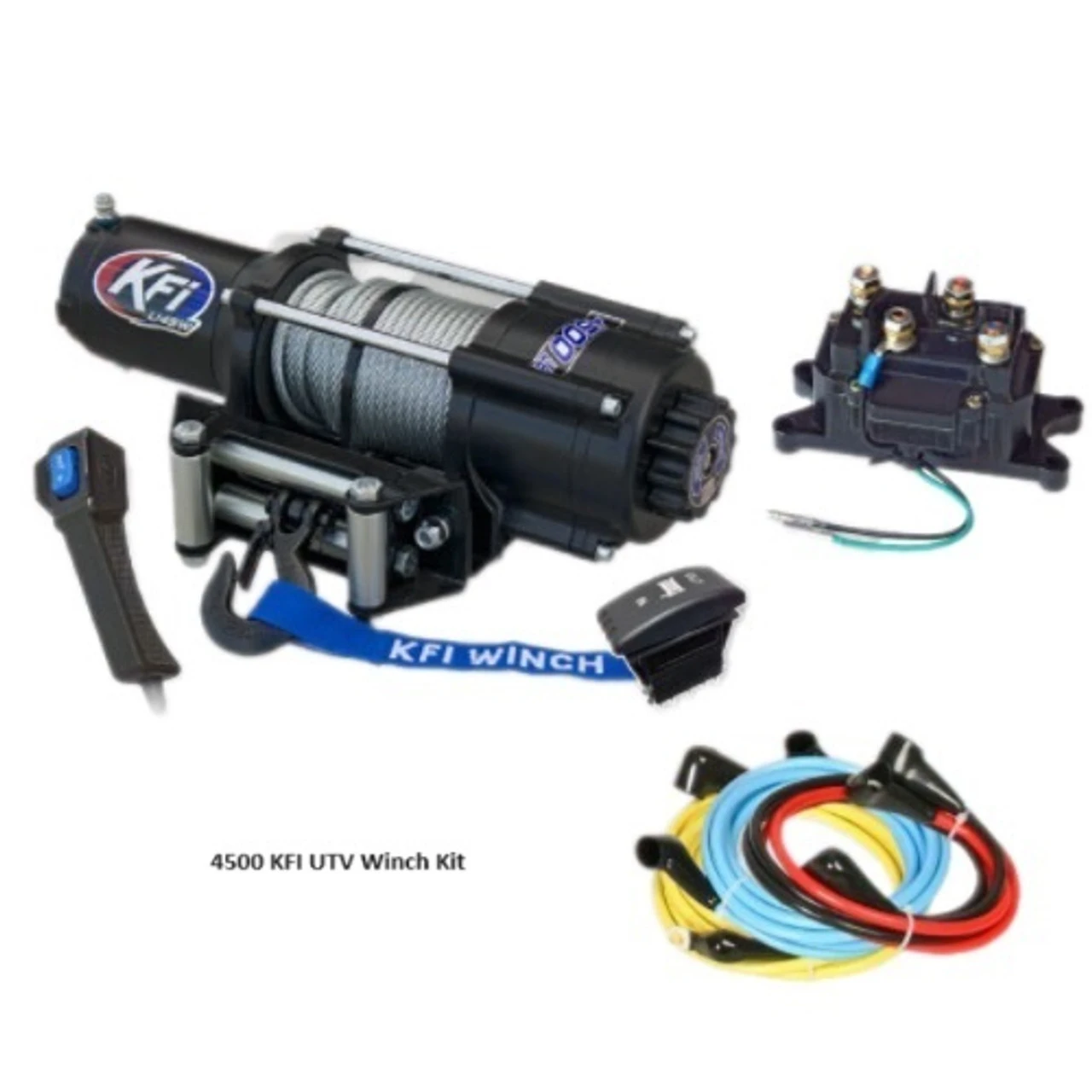

4500lbs Winch Kit:

• Standard (#U45-R2) – 38′ Steel Cable #UTV-CBL-4K
• Wide (#U45w-R2) – 52′ Steel Cable #UTV-CBL-4K
• Kit inclusion:
  • Steel Cable
  • Handheld 14′ Corded Remote(ATV-HR)
  • UTV Dash Rocker Switch (UTV-DRS-K)
  • New Heavy Duty Electric Contactor (ATV-CONT)

Polaris Ranger Winch Mount (101830):

• Constructed of 3/16″ Grade 50 steel
• Powder coated black for supreme durability
• Very easy to install
• Mounts winch tucked back behind front bumper
• Satisfaction guaranteed
• Roller fairlead and winch are NOT included
• It is recommended that you also purchase the Polaris wire 3-pin harness (101505)

Hydraulic Actuator (Angle) Kit:

• Specifically designed for use with KFI UTV Pro 2.0 Push Tubes #106300 / Open Trail Tubes #10-6300
• Parker Industries Made in the USA Electric (12 volt) over Hydraulic Cylinder
• Complete wiring kit with Carling Technologies Two-Way Dash Rocker Switch
• Powder Coated TOUGH
• Does NOT include the Tube System #106300 (Purchase separately)
• Hydraulic Angle Kit for Machine with Tires  (106305/105940/ACT203)
• Hydraulic Angle Kit for Machine with Tracks  (106335/105940/ACT203) – Requires UTV Track Extension (106330), must be purchased separately


UTV Plow Tube Track Extension (106330):

• Designed to work with KFI UTV Tubes (106300 & 105635) and KFI CC Conversion Push Tubes (106310 & 105905)
• Constructed of Heavy Duty 1/4” Grade 50 Steel
• Extends UTV Blade 10.33”
• Shot Blasted before powder coating; Powder Coated TOUGH – Black
• Replacement for #105565

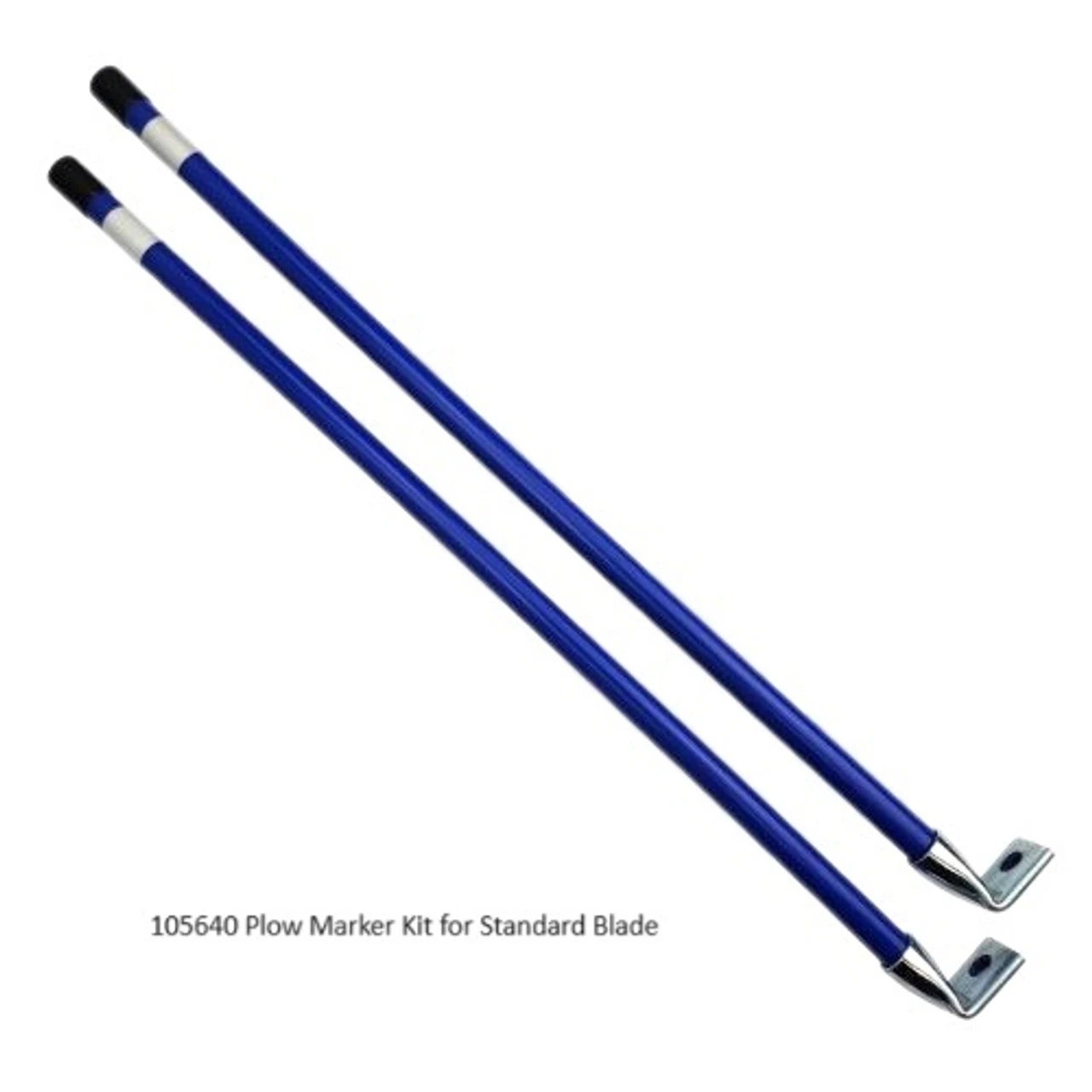

Plow Markers:

• Increase your blade end visibility for added safety
• Bolts to the side/ends of your blade
• Includes two markers
• Standard Blade Plow Marker Kit (105640) – has a steel 89-degree angled base ; 15.5″ length  0.5 ” diameter
• Pro-Poly Plow Blade Marker Kit (105810) – has a straight base

Flap Kit:

• 11-Gauge Steel Adjustable Snow Flap Edge Strip
• 6.5” 2-3ply Rubber Flap (acts as a snow flap as well as an extension to the plow blade)
• All KFI Blades are Pre-Drilled
• Two-way Adjustable
• 60″ Snow Flap (105144)

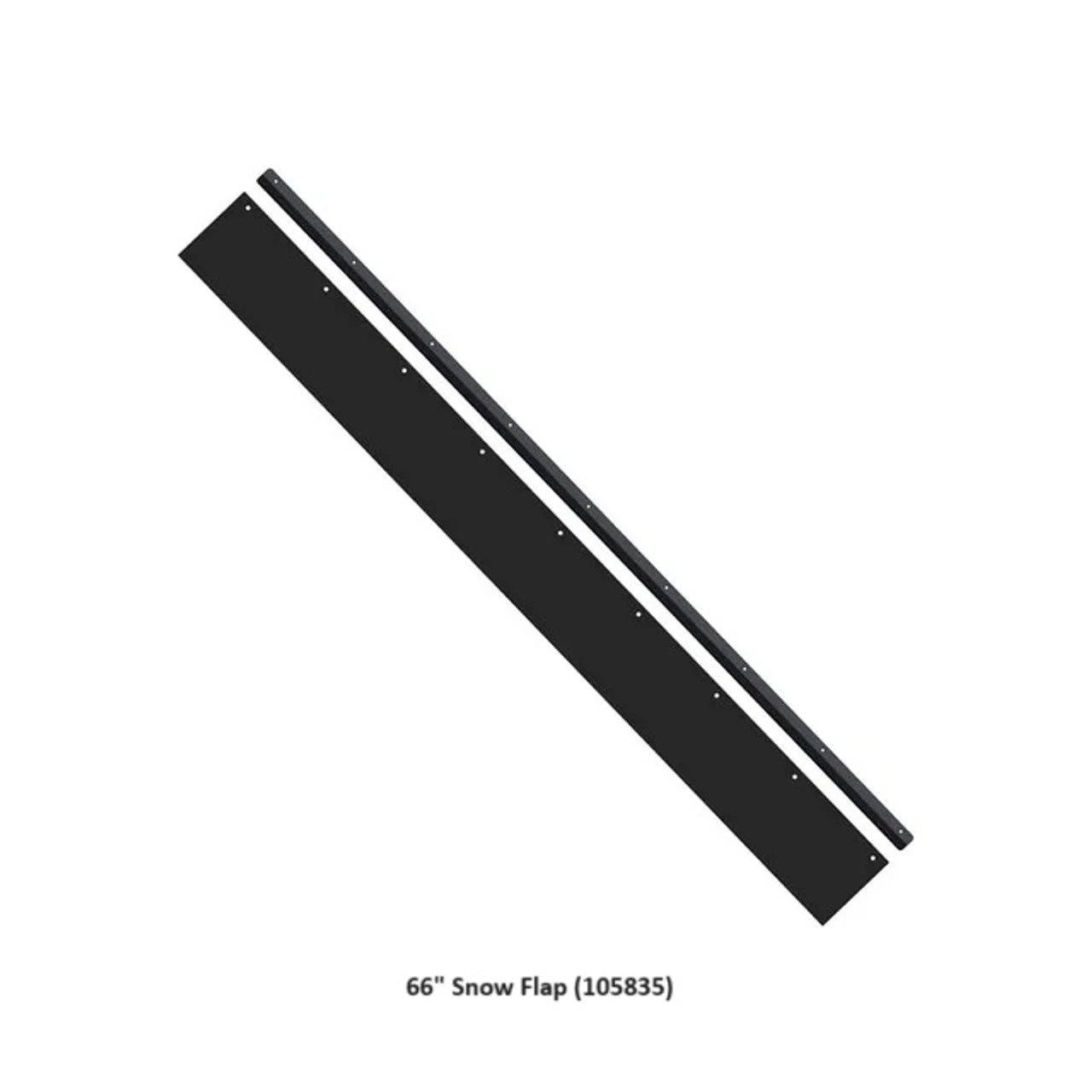

• 66″ Snow Flap (105835)
• 72″ Snow Flap (105290)

Side Shield:

• Attaches to the ends of the plow to help reduce snow and dirt overflow
• 3/16” Grade 50 Steel Powder Coated Black

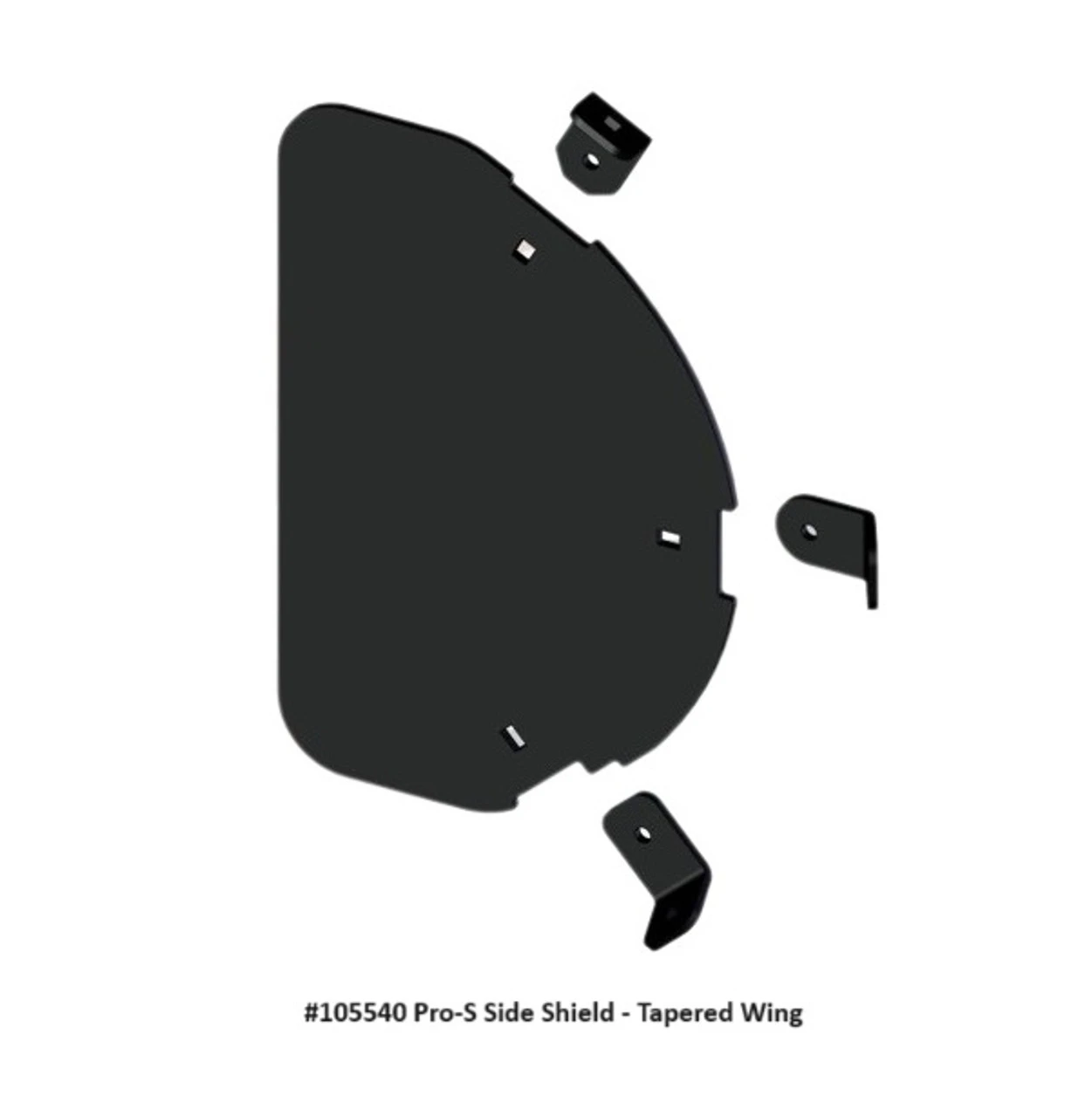

• Pro-S Side Shield – Tapered Wing for Standard Blade (105540) — Adds 2-1/4” Width to size of blade per Shield

• Pro-Poly Tapered Side Shield – Driver Side (106110) — Adds 5.6” Width to size of blade per Shield
• Pro-Poly Tapered Side Shield – Passenger Side (106115) — Adds 5.6” Width to size of blade per Shield

UTV SQ Push Tube Leveling Kit:

• Allows mounting of push tube at the correct height so the blade is level.
• Works with KFI UTV SQ Push Tubes (106300)
• Shot Blasted before powder coating ; Powder Coated TOUGH – Black
• 1″ Negative SQ Push Tube Leveling Kit (106320) – For machines 8.5″-9.5″
• 1″- 2″ UTV SQ Push Tube Leveling Kit (106322) – For machines 11.5″ – 14″
• 4″ Positive UTV SQ Push Tube Leveling Kit (106324) – For machines 14″-16″
• 6″ Positive UTV SQ Push Tube Leveling Kit (106326) – For machines 16″-18″
