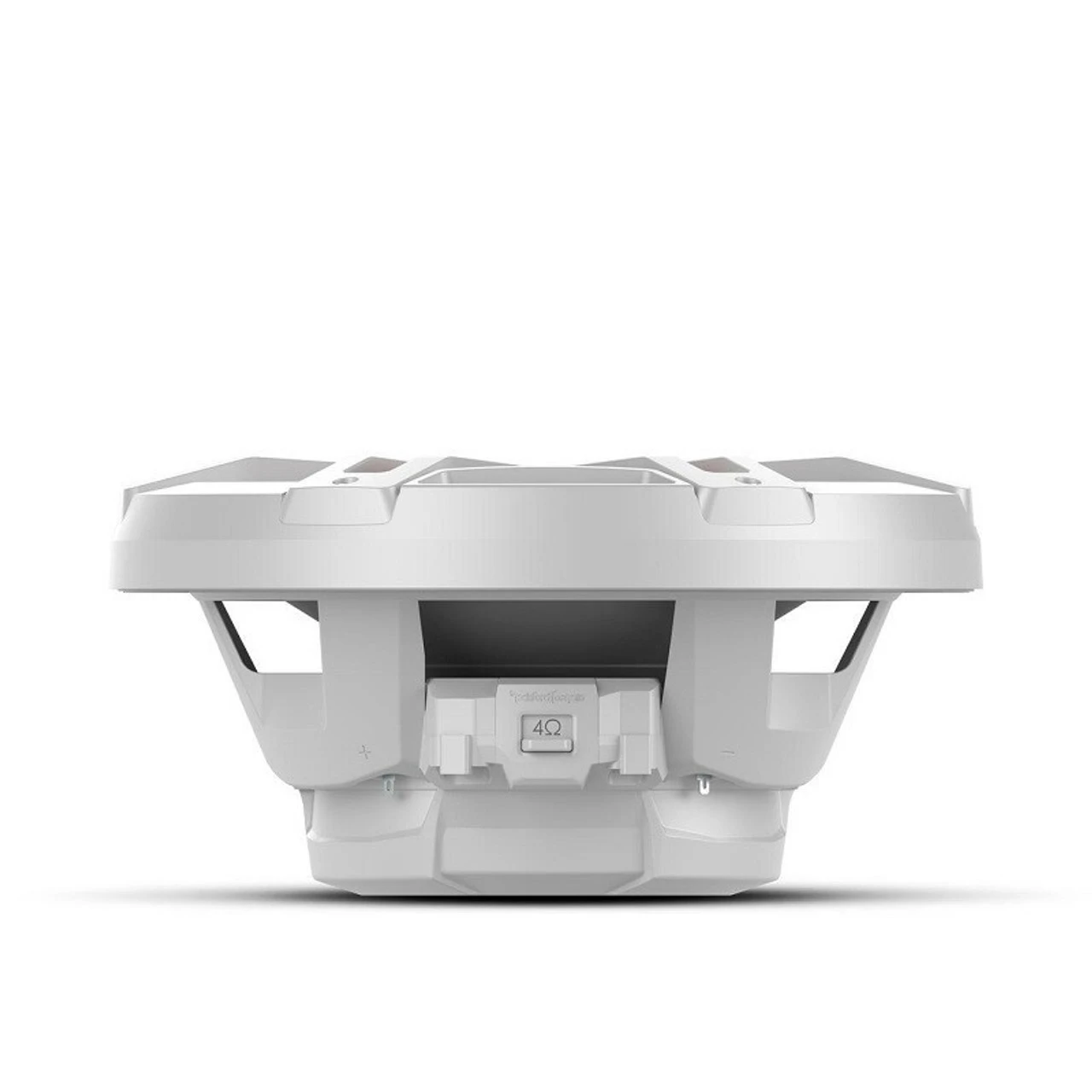

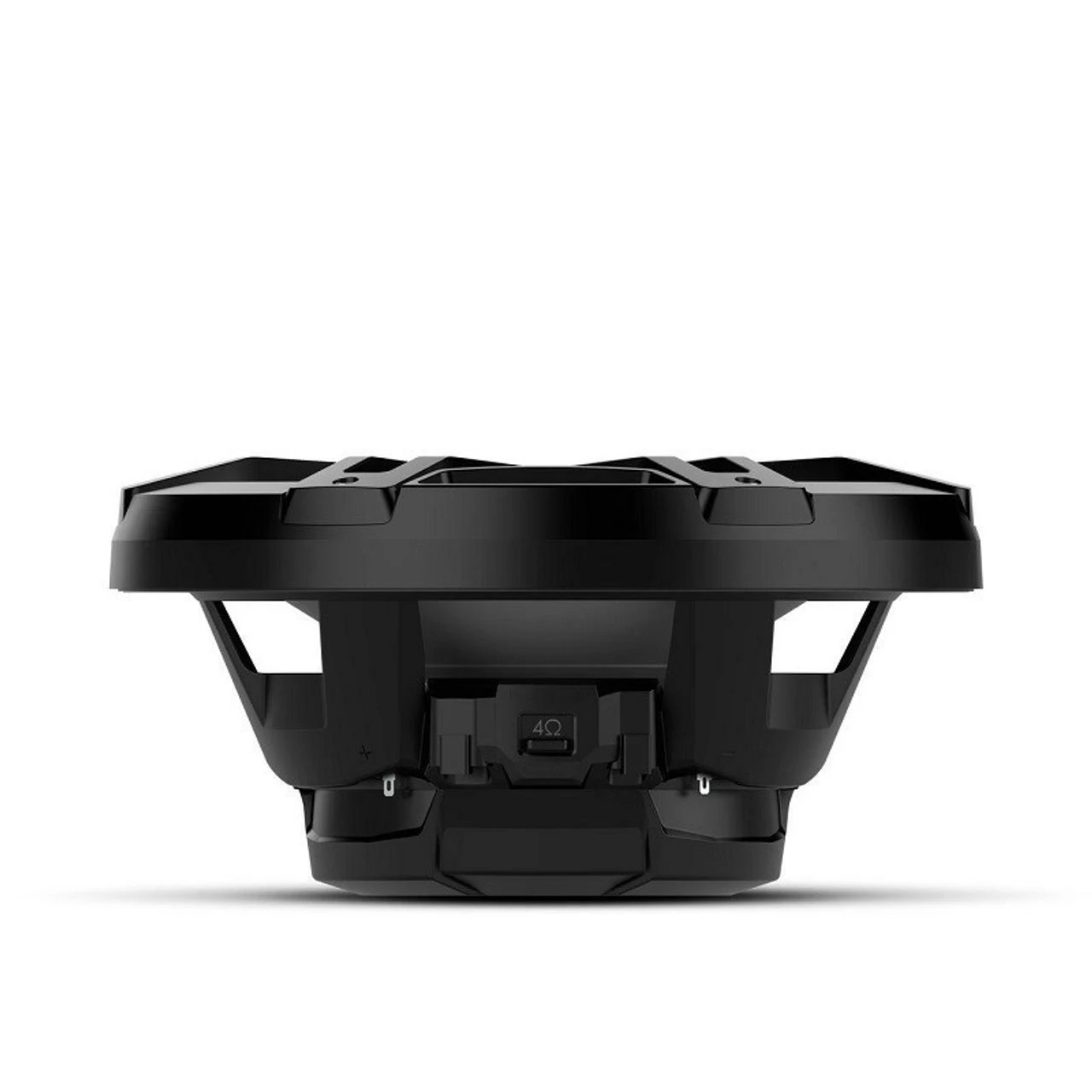

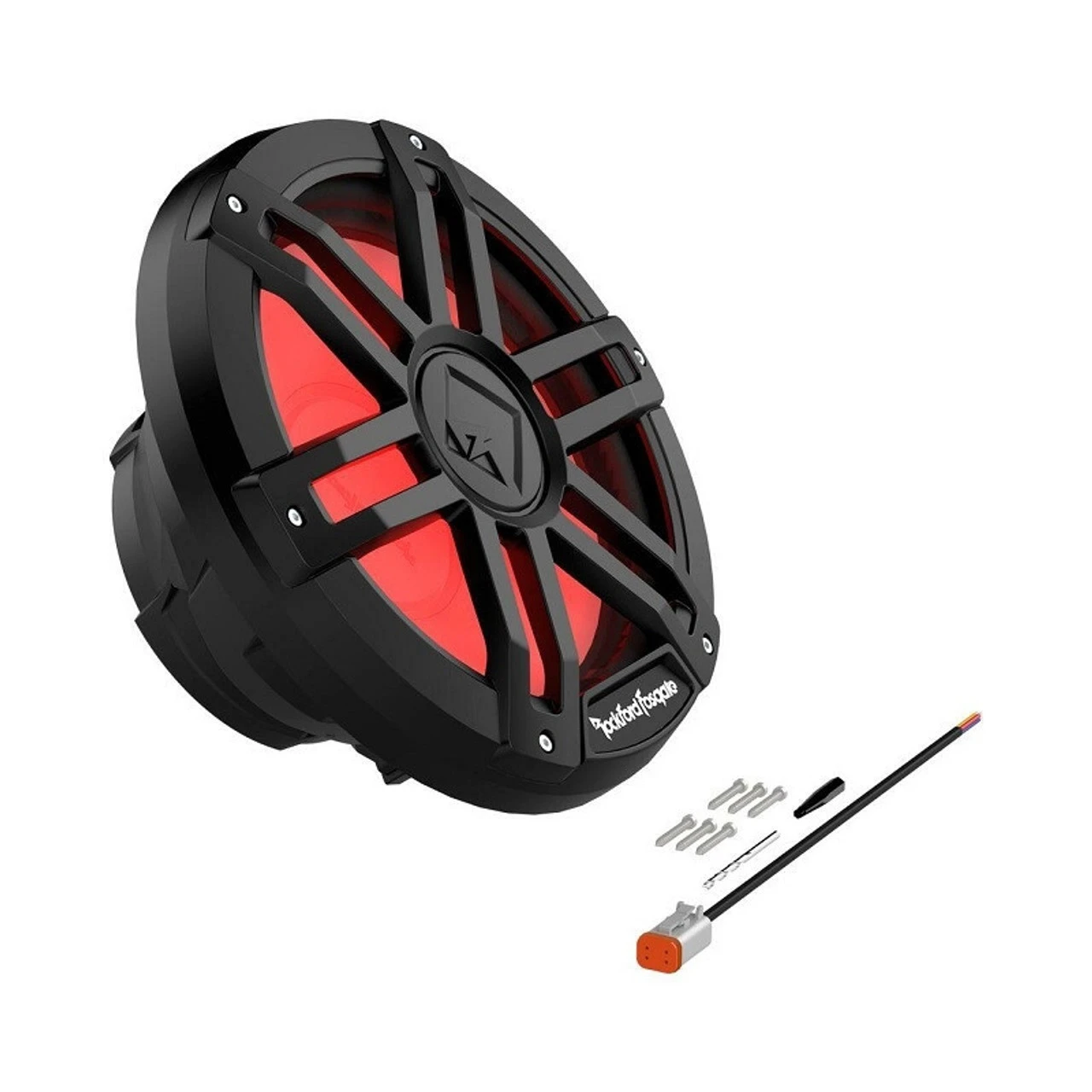

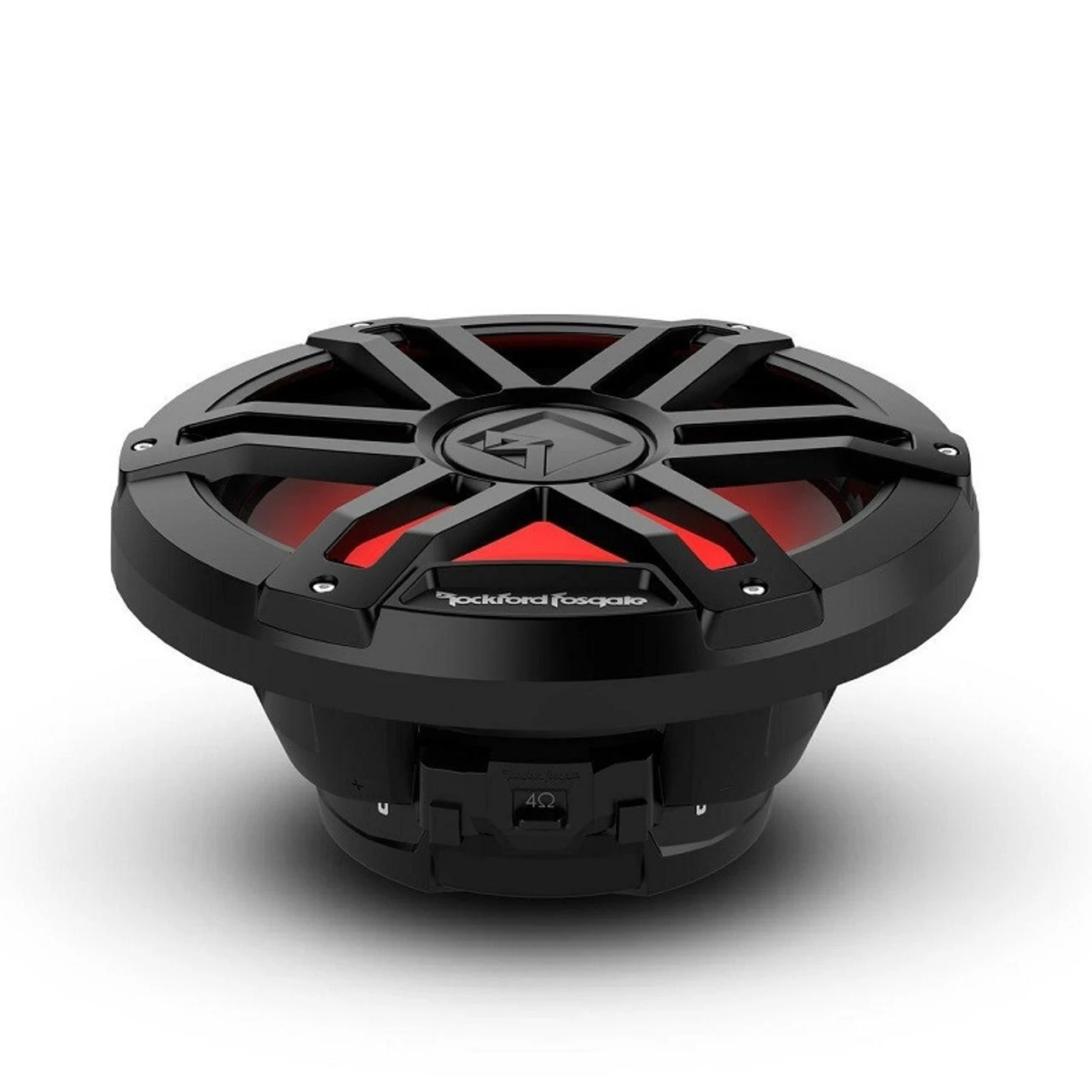

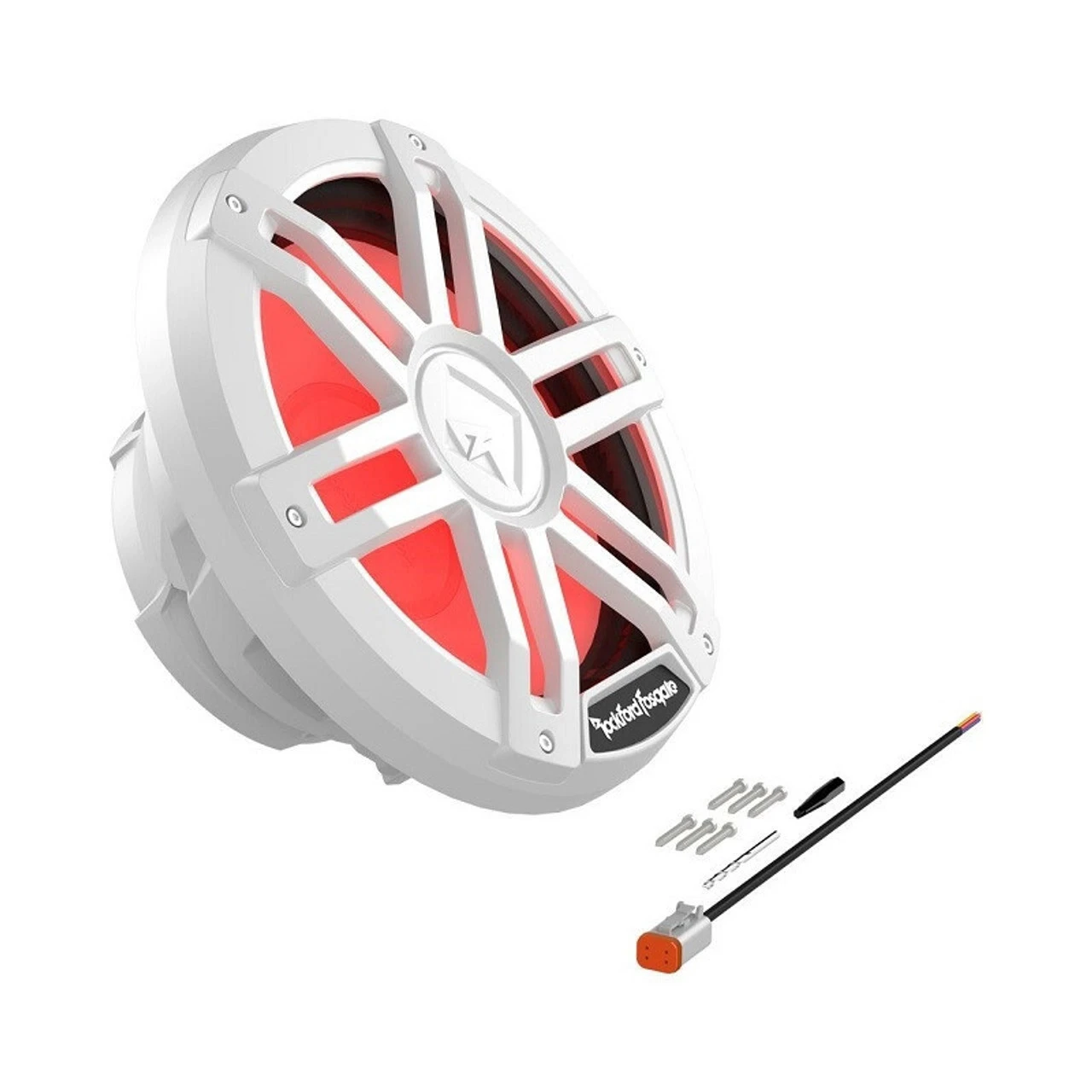

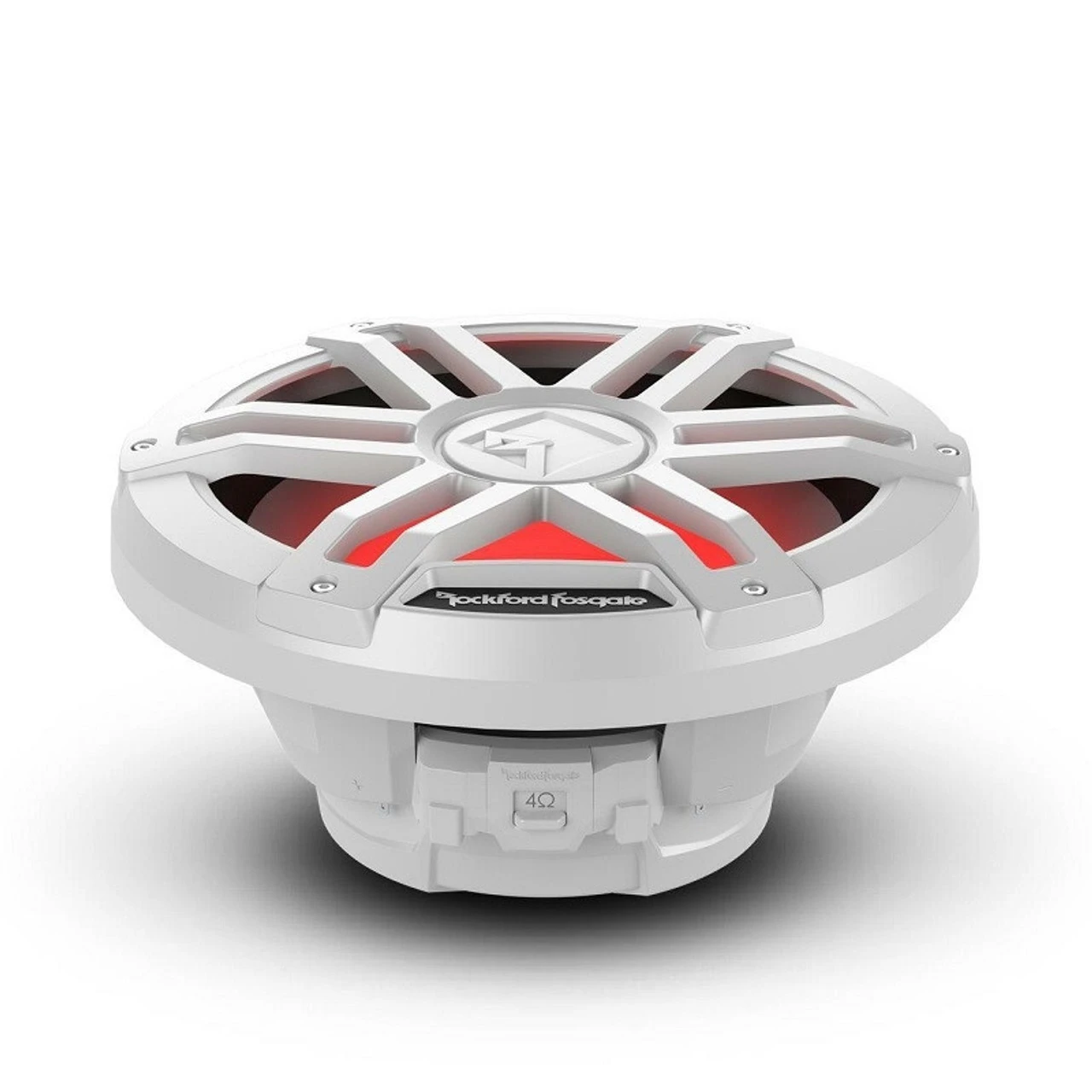

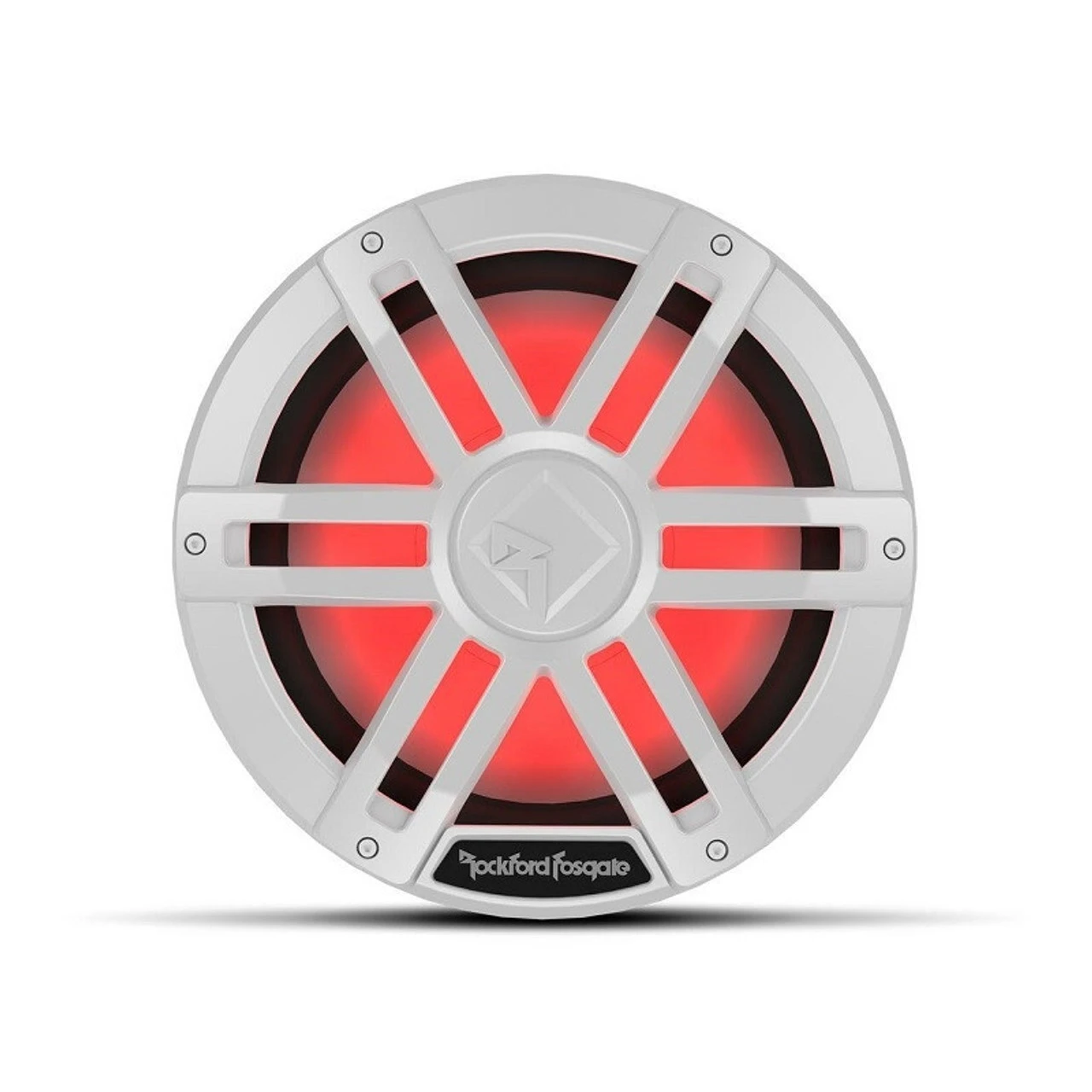

“Polaris Ranger M1 12″” DVC 2-Ohm Color Optix Marine Subwoofer By Rockford”

The Black and white Color Optix™ 12” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.

12″ DVC 2-Ohm Black Color Optix Marine Subwoofer Features:

• Optixally clear UV stable RGB Lighting Encapsulation
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• Vented motor design with water-repelling nano coated mesh screen
• 2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
• Fully insulated silicone tinsel leads
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Zinc Nickel-plated Marine grade brass connection terminals
• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
• Linear Synthetic Fiber Blend Spiders
• Santoprene VAST Surround
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Co-molded surround and mineral filled polypropylene cone body
• Injection molded mineral filled polypropylene cone body with UV inhibitors

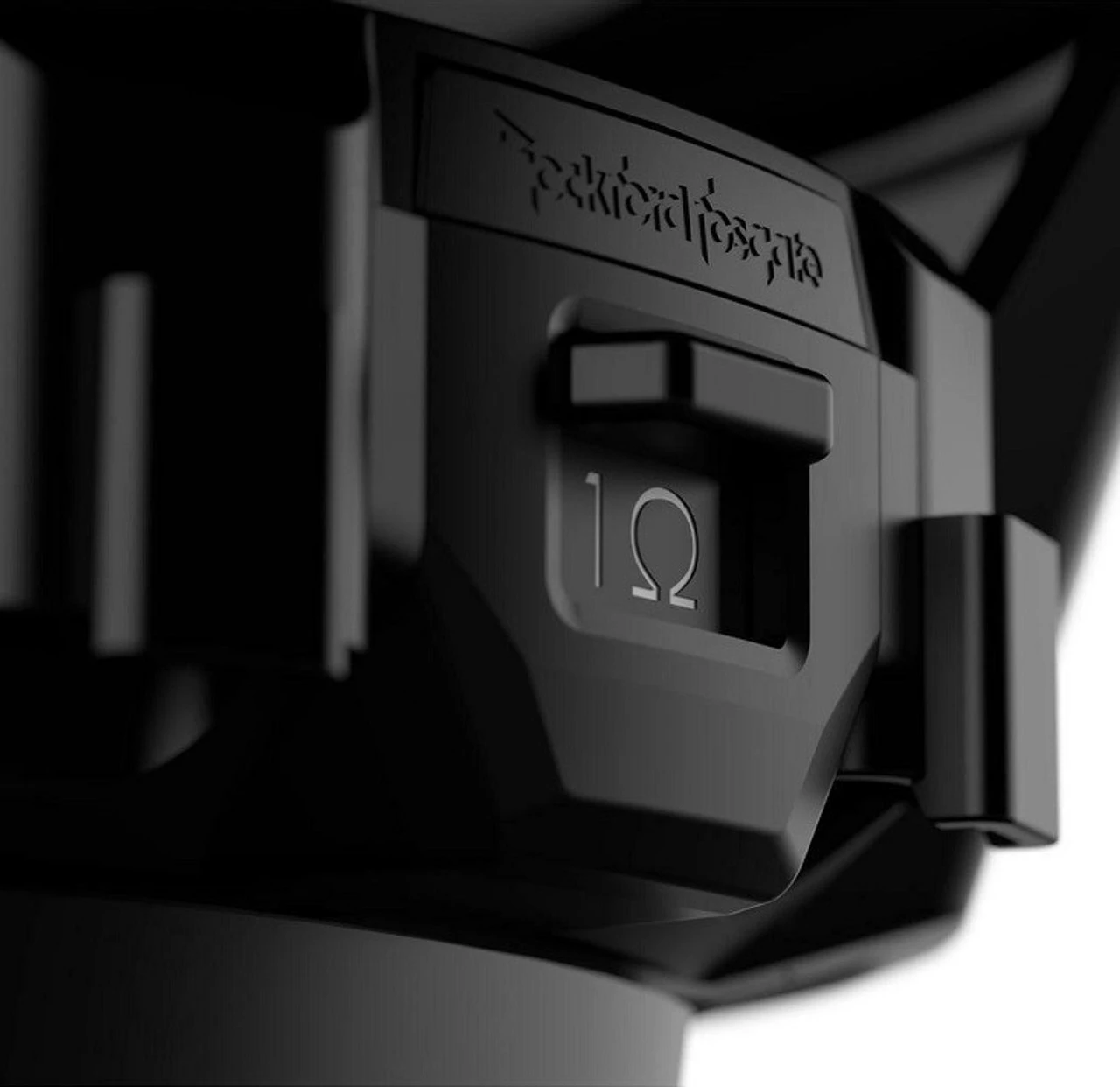

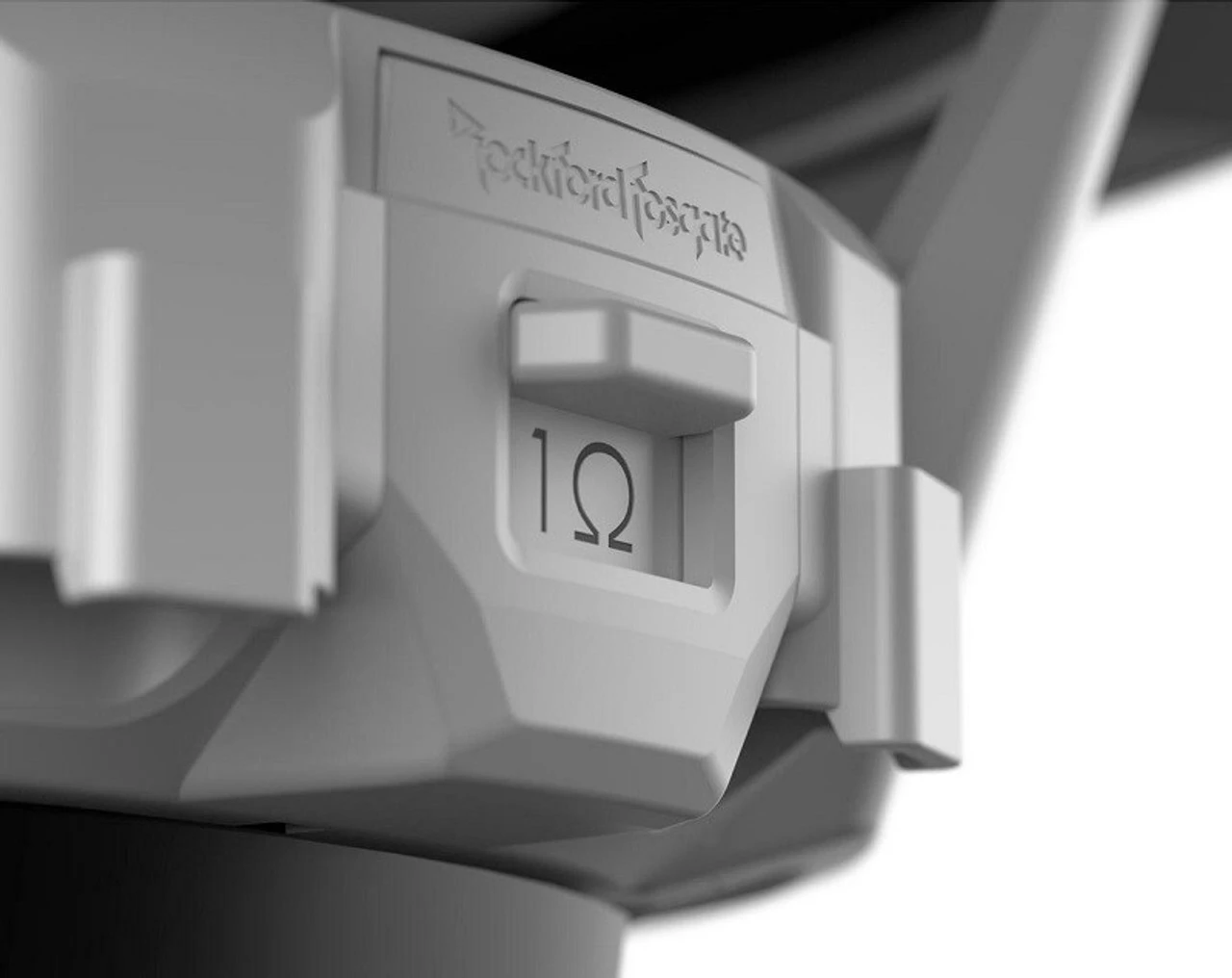

• VERSA impedance switch quickly allows series or parallel configuration without additional wiring

Specs:

• Size – 12″
• Nominal Impedance (Ohms) – 1-Ohm or 4-Ohm Switchable
• Power Handling (Watts RMS) – 300 Watts RMS 1200 Watts PEAK
• Voice Coil Type – Dual Voice Coil
• Voice Coil Diameter – 2″ (50 mm)
• Frequency Response – 20 Hz – 750 Hz
• Magnet Weight (oz) – 39.75 oz. (1.13 Kg)
• Fs (Hz) – 26
• Re (Ohms) – 3.8
• Le (mH) – 2.02
• Qms – 7.47
• Sd (cm2) – 585.4
• Qes – 0.57
• Qts – 0.53
• Vas – 114.2
• SPL (dB @ 1w/1m) – 92
• Xmax (mm) – 6.0
• Woofer Displacement – 3.49 cu. ft. (0.12 Liters)
• Speaker Connector – Deutsch™
• Cutout Diameter – 10.85 in. (275.6 mm)
• Mounting Depth – 6.65 in. (169.1 mm)
