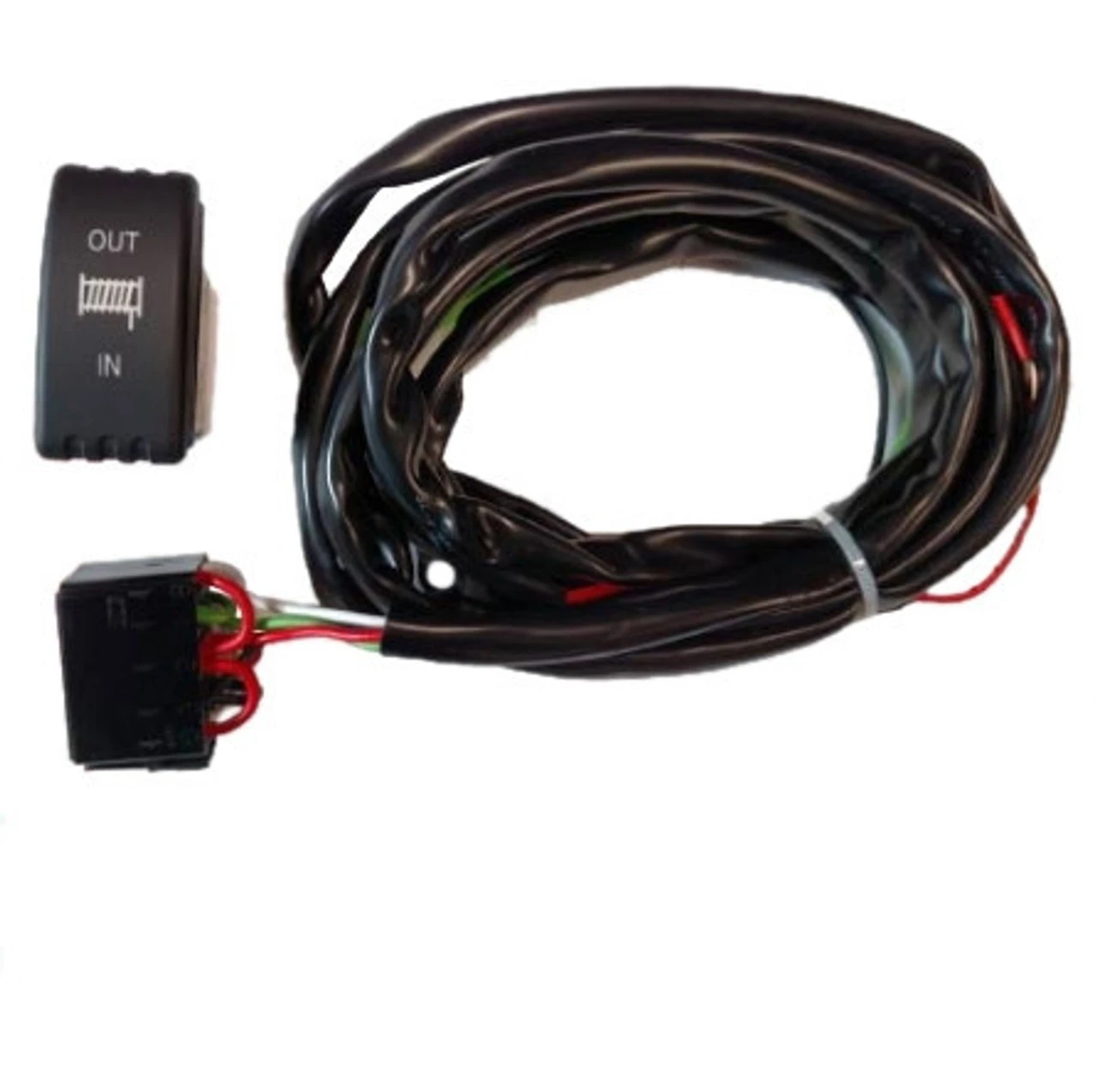

Polaris Ranger New UTV Dash Rocker Switch By KFI

Kit Includes:

• Winch Rocker Switch Only

Dash Rocker Switch Specifications:

• This kit includes the replacement Rocker Switch only
• Requires #UTV-DRS-K to control winch
• Blue LED illuminated when your key is turned on to allow you to see at night
• Circuit Type (ON)-OFF-(ON)
• Double pole Switch. This mean two contact points instead of just one for better repeatability operation.
• Requires Mounting hole 0.830” x 1.450” (standard on most UTV’s)
• Works with Panel Thickness ranging from .030” to .250” thick
• Max Current Rating: 20A 12VDC and 15A 24VDC
• Silver Plated Terminals
• Requires Standard ATV Winch Contactor to control Winch
• See below Wiring Schematic
