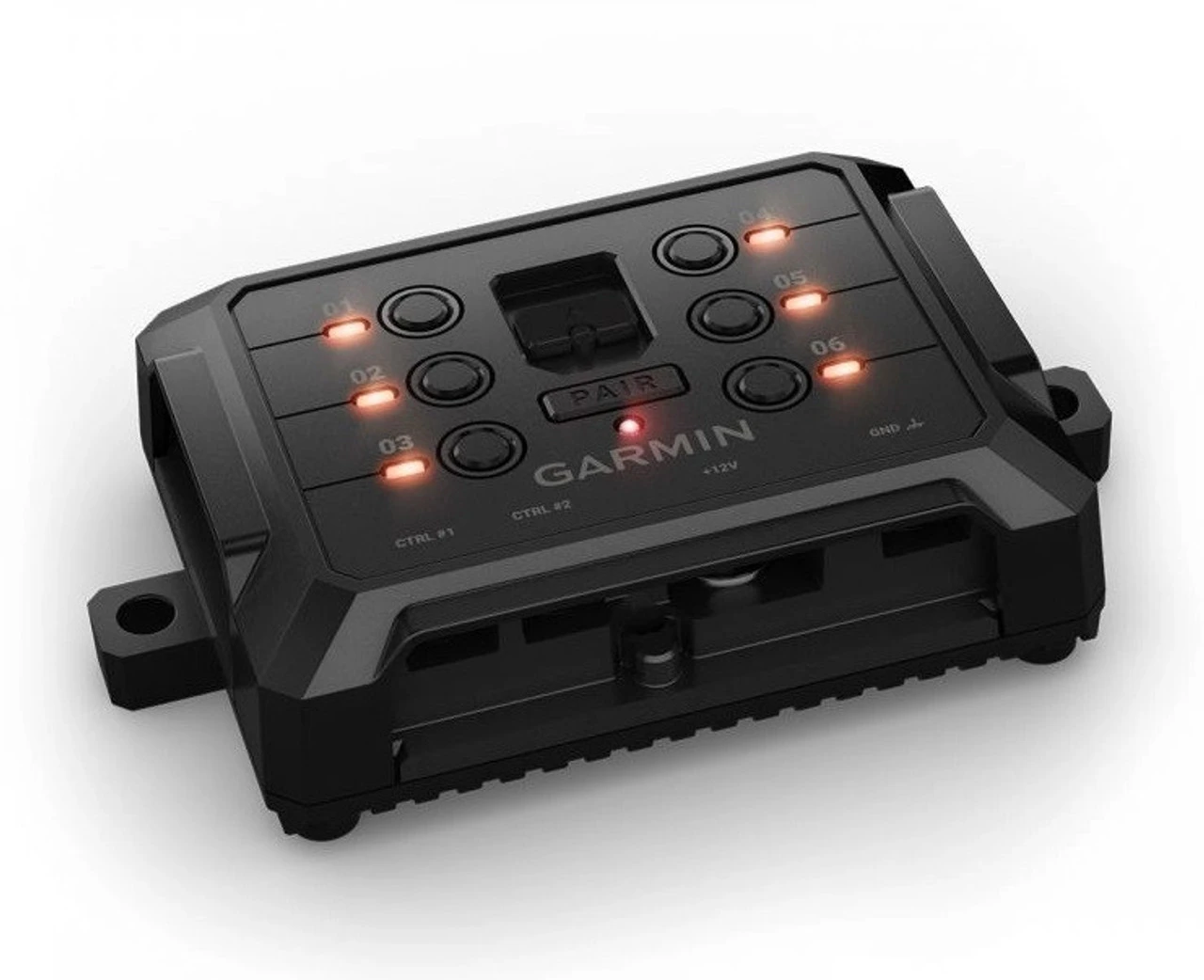

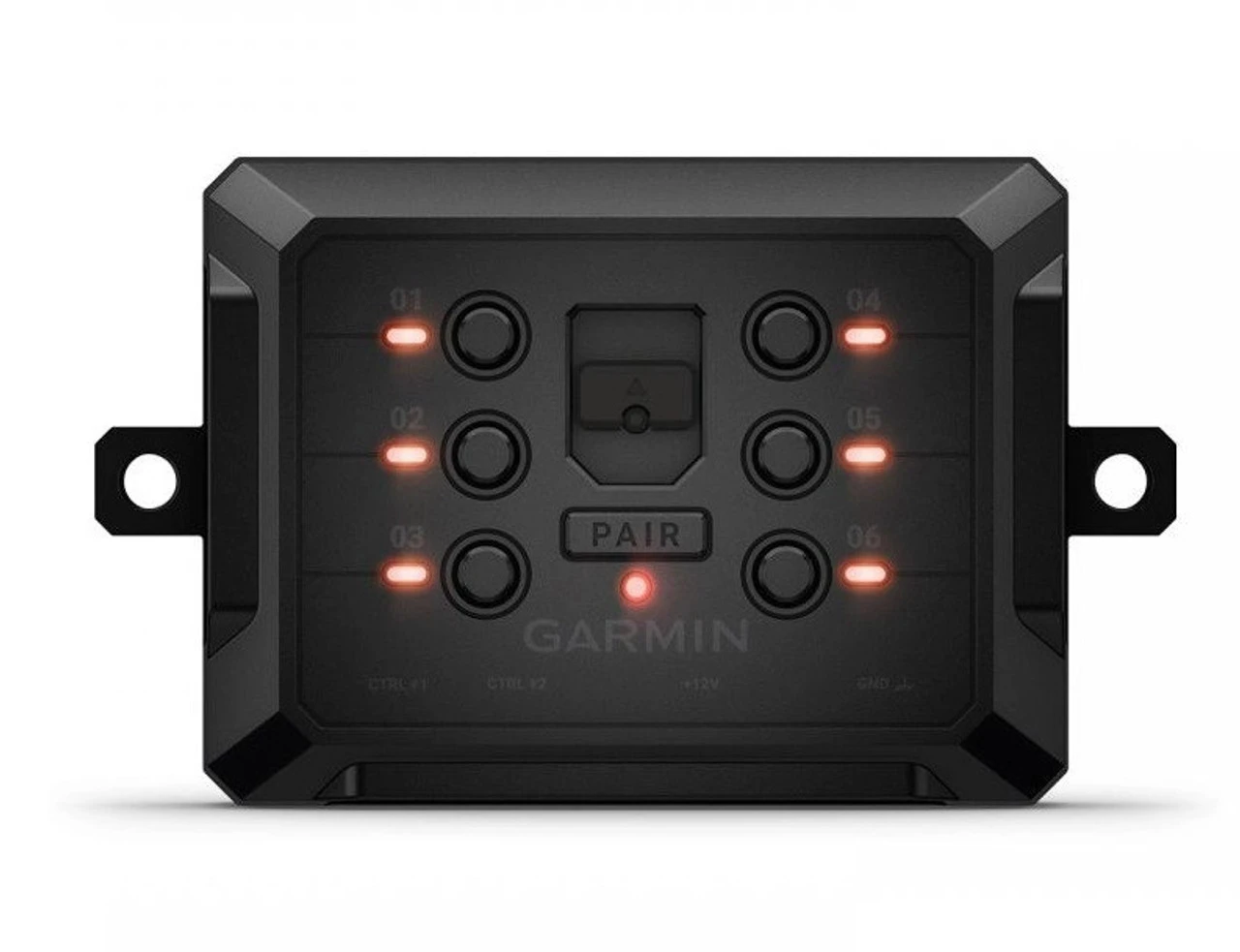

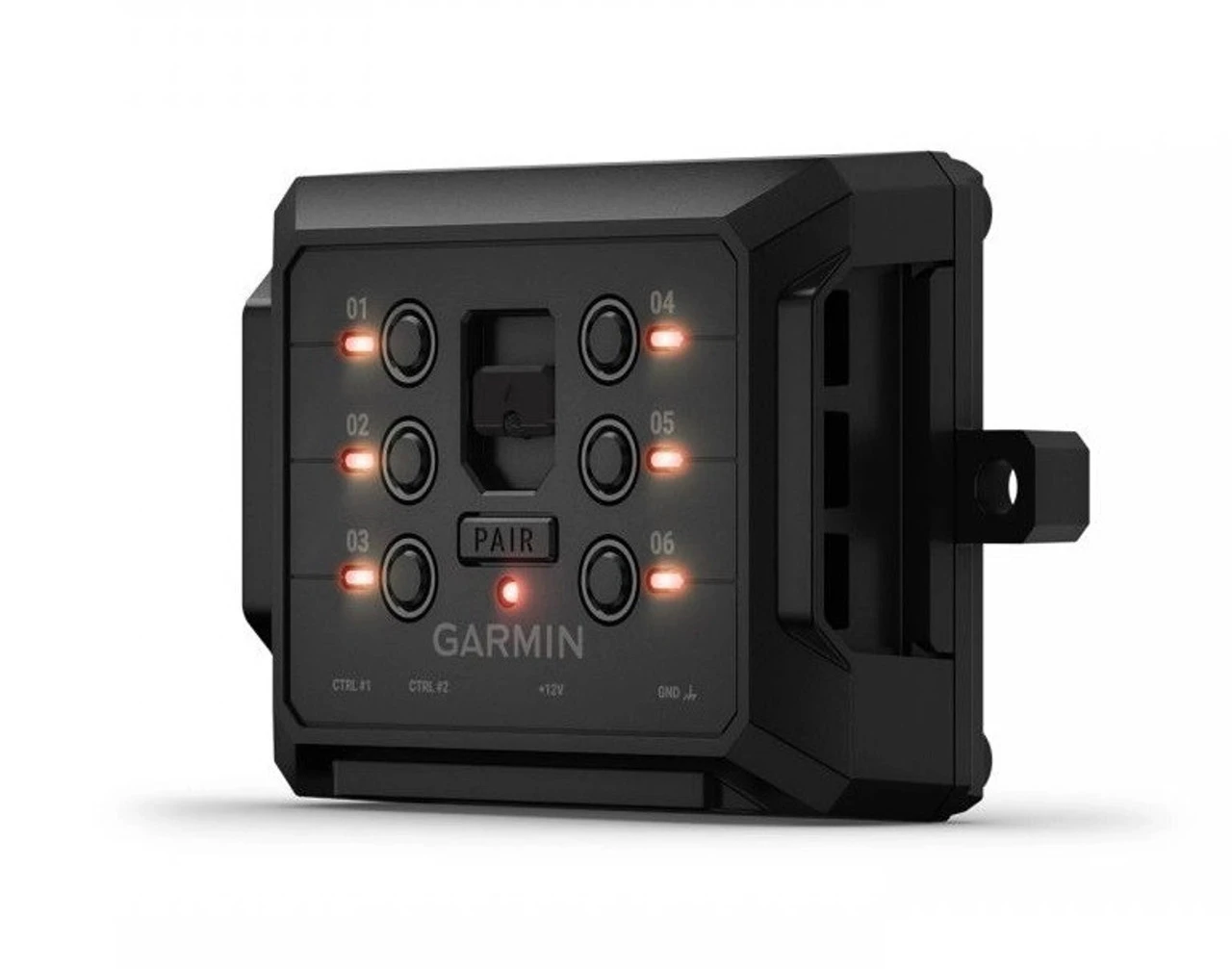

Polaris Ranger PowerSwitch Digital Switch Box By Garmin

Add Wireless Control For Your Vehicle’S Electrical Accessories

Garmin PowerSwitch is the compact digital switch box that offers convenient centralized control of your vehicle’s 12-volt accessories from a compatible1 Garmin navigator or smartphone2.

Garmin PowerSwitch Features:

• Control light bars, horns, air compressors, locks, and more, right from your compatible1 navigator or smartphone2.
• Installation is a snap & no cutting into dashboards or interference with your vehicle’s electronics.
• Tough enough for off-roading, this rugged switch box is IPX7 weather resistant.
• Use your device’s touchscreen to wirelessly access up to six switch outputs of 30 amps each.
• Tailor on-screen switch panels with customizable labels, icons, channel groups, and more.
• Want to control more? You can access up to four Garmin PowerSwitch devices from the same display.

The App

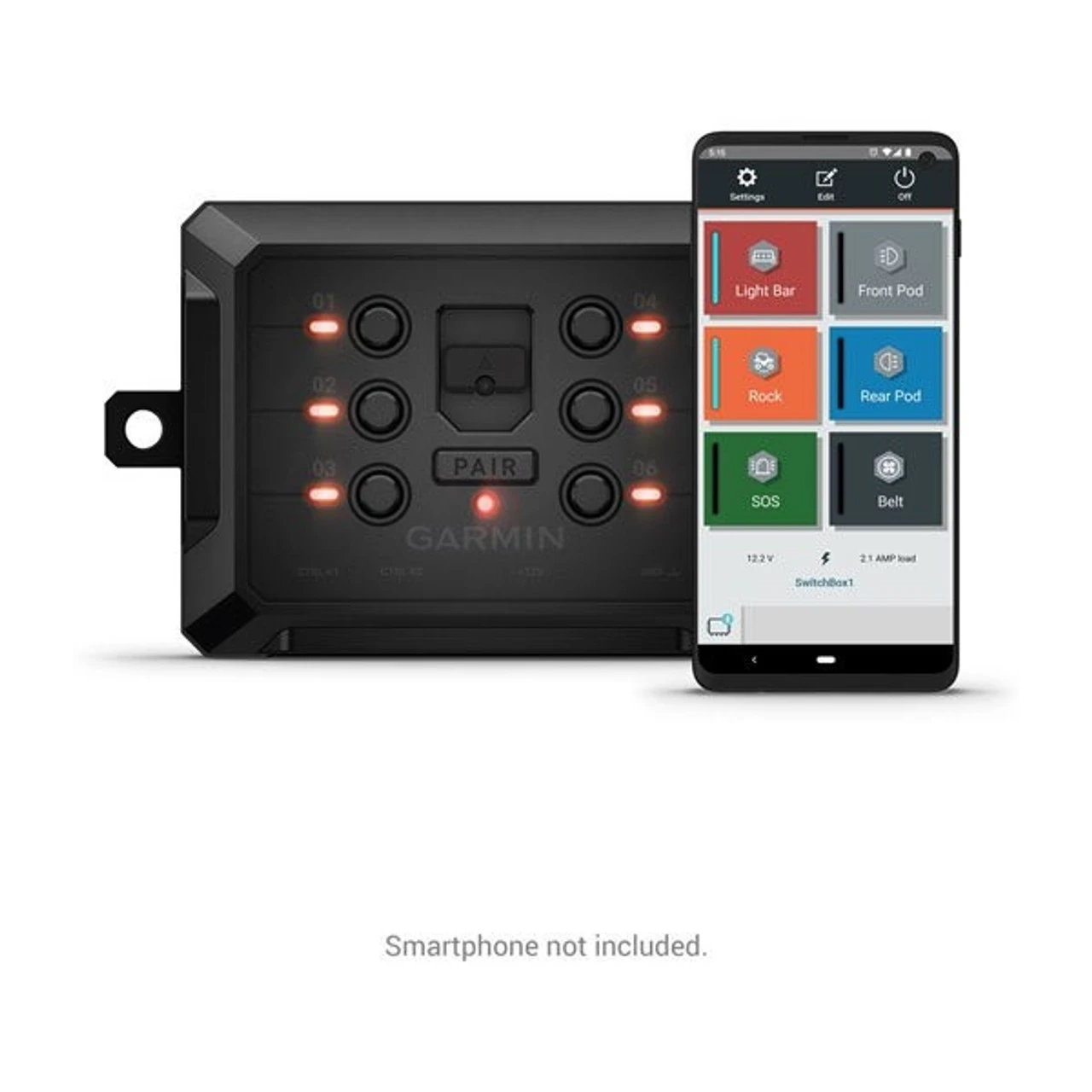

Use the Garmin PowerSwitch app on your compatible1 Garmin navigator or smartphone to control all your accessories from your touchscreen device.

Wireless Switch Control

The Garmin PowerSwitch digital switch box uses BLUETOOTH& wireless connectivity to program and operate your accessories from compatible1 Garmin navigators or smartphones.

More Control

Control up to four of your Garmin PowerSwitch devices from your compatible1 Garmin navigator or smartphone.

Install Made Simple

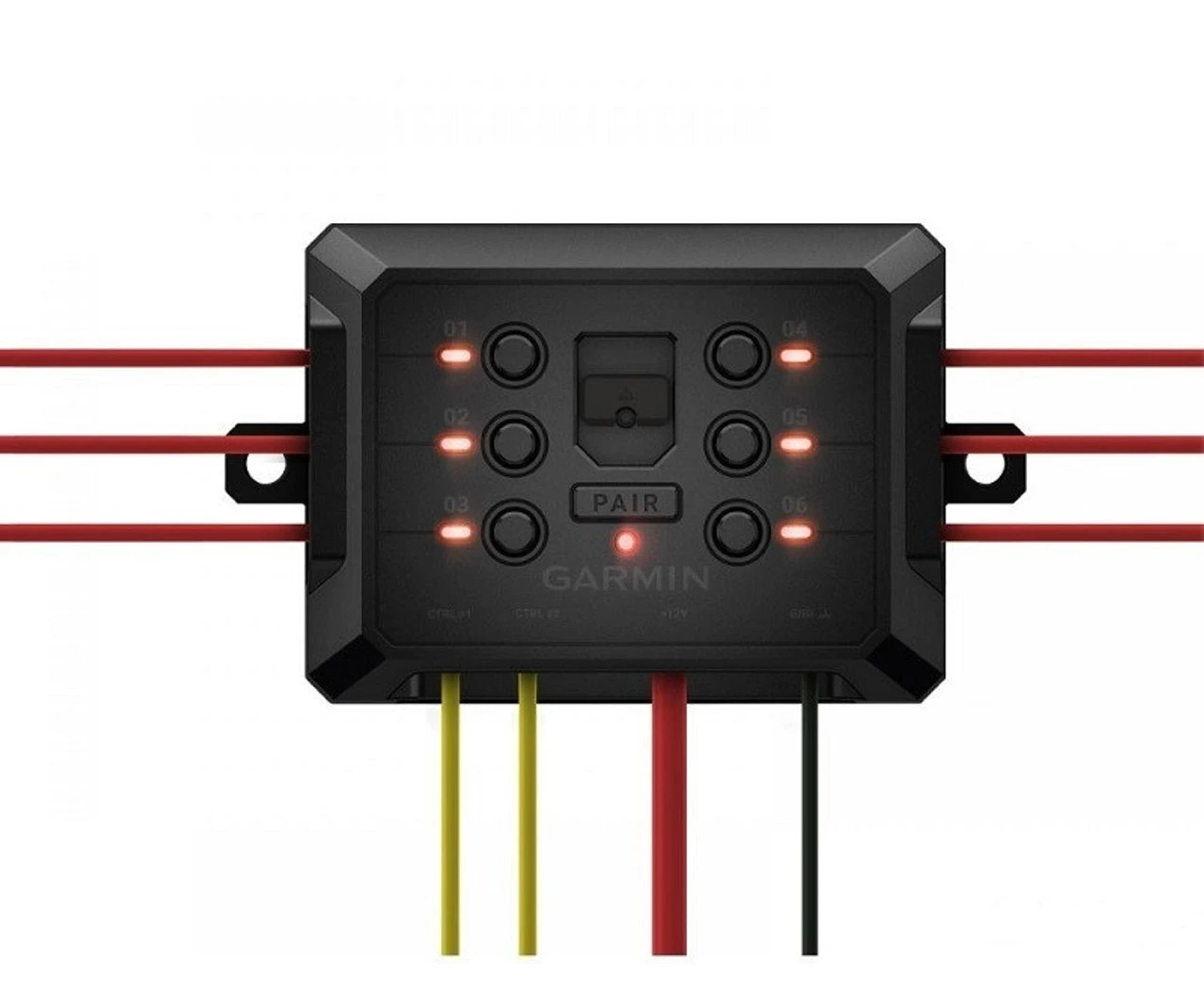

The hassle-free installation lets you connect up to six accessories to one Garmin PowerSwitch box. There’s no interference with your vehicle electronics and no need to cut holes in your dashboard or route wires through the firewall.

Compact For Easy Mounting

The compact 5″ x 3″ x 1″ form factor gives you plenty of flexible mounting options on all types of vehicles, ranging from side-by-sides, UTVs to off-roading 4x4s and snowmobiles.

Customize Switches

Create custom virtual switch panels with labels, icons, and channel groups on the display as well as controls for dimming and flashing of lighting systems. It’s a simple way to control light bars, rock lights, and more.

Ample Outlets

With a total of six circuits rated at up to 30 amps each, you can power and control all types of 12-volt accessories from one Garmin PowerSwitch digital switch box.

Control Inputs

Includes two control inputs that detect a signal from 3.3-volt to 18-volt that can be used to turn on the customizable outputs. For example, you can connect your vehicle ignition switch to a control input terminal to turn on accessories automatically each time you start your vehicle.

Light It Up

The Garmin PowerSwitch system makes it easy to add all types of exterior lighting packages to your vehicle — everything from light bars and fog lights to emergency flashers and rear and rock lights.

Power Your Adventures

In addition to vehicle lights, you can tap into Garmin PowerSwitch with all types of useful gear: Comm radios, refrigerators, air compressors, or virtually anything that can run with 12-volt power.

General Specification

Physical Dimensions: 4.9″ W x 1.3″ H x 3.0″ D (12.5 x 3.2 x 7.5 cm)
Weight: 10 oz (283 g)
Water Rating: IPX7

Digital Switching Features

Number Of Switch Outputs: 6
Max Amps Per Switch Output: 30 amps
Max Amps Total: 100 amps
Number Of Hardwire Inputs: 2
Max Number Of Controllers For Pairing With A Powerswitch Device: 4
Max Number Of Powerswitch Devices For Pairing With A Controller: 4

kit Includes:

• Garmin PowerSwitch
• Power cable
• Ground cable
• Terminals
• Documentation
