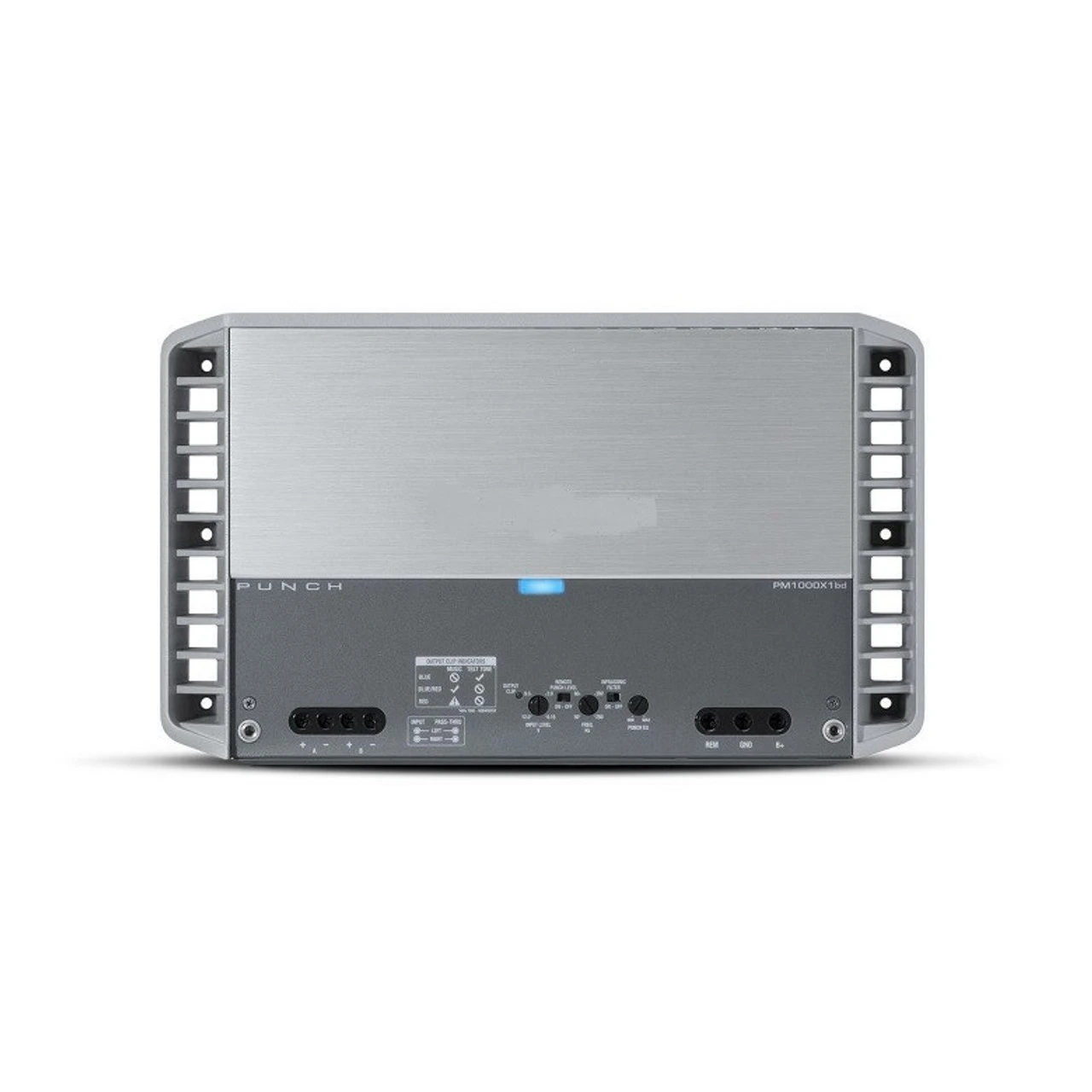

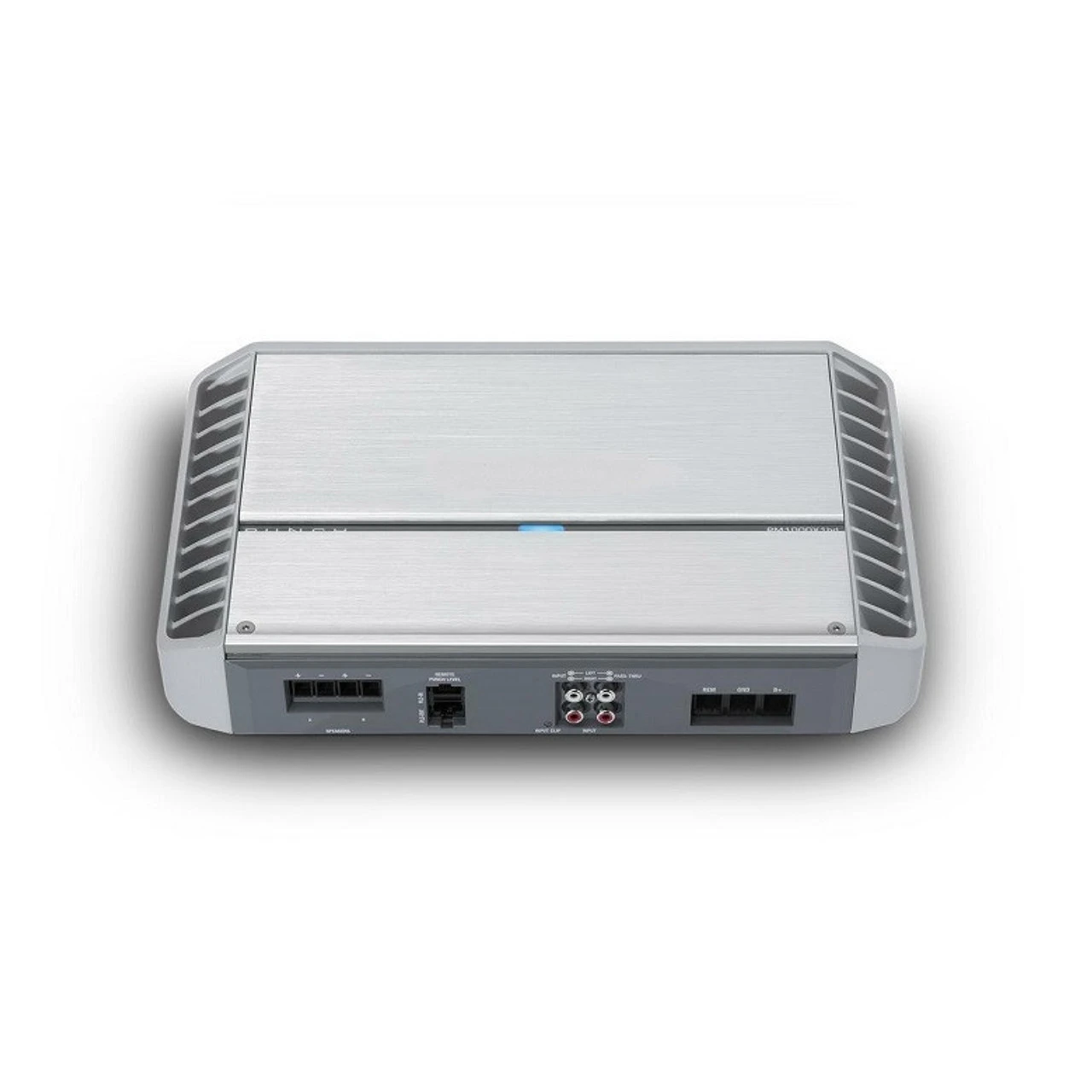

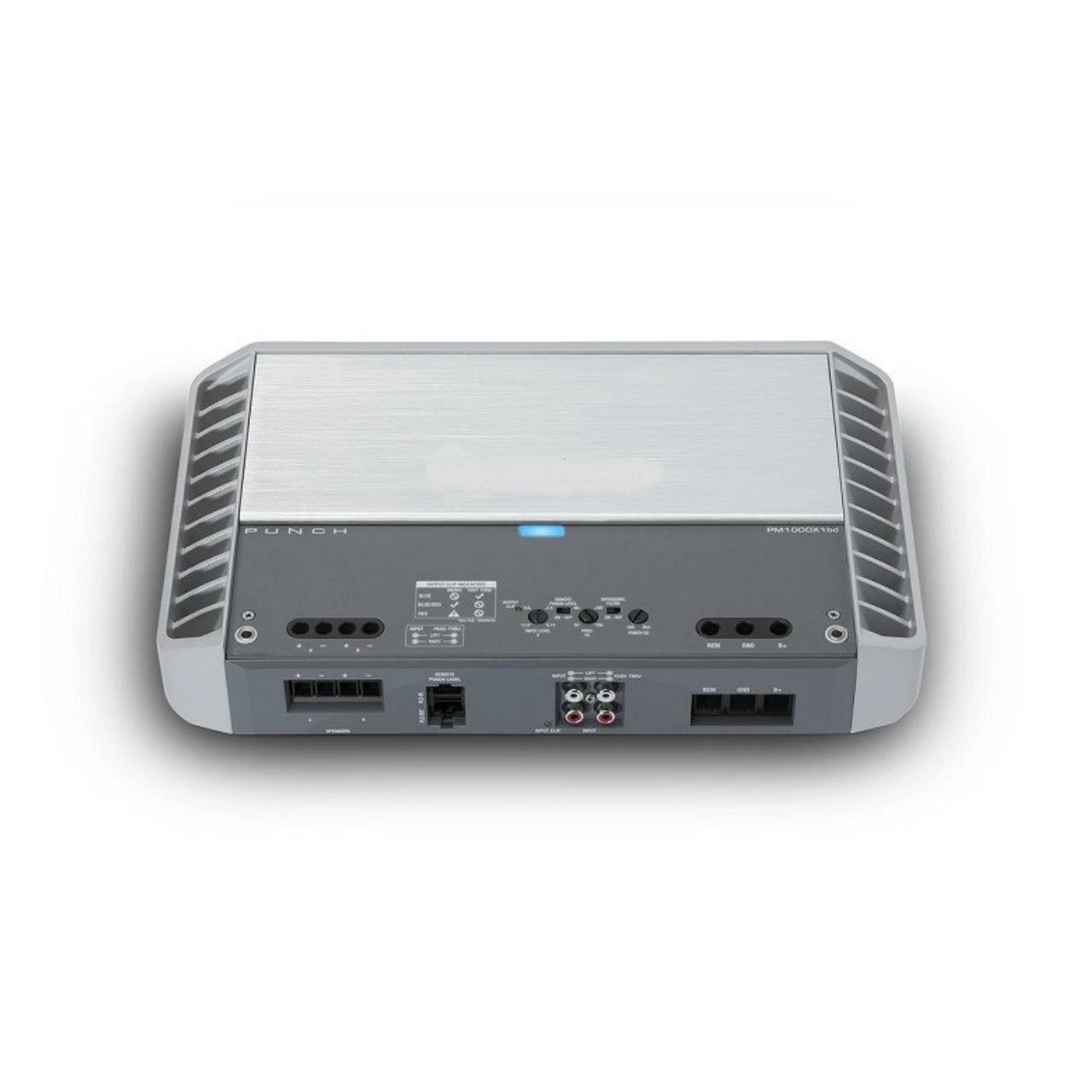

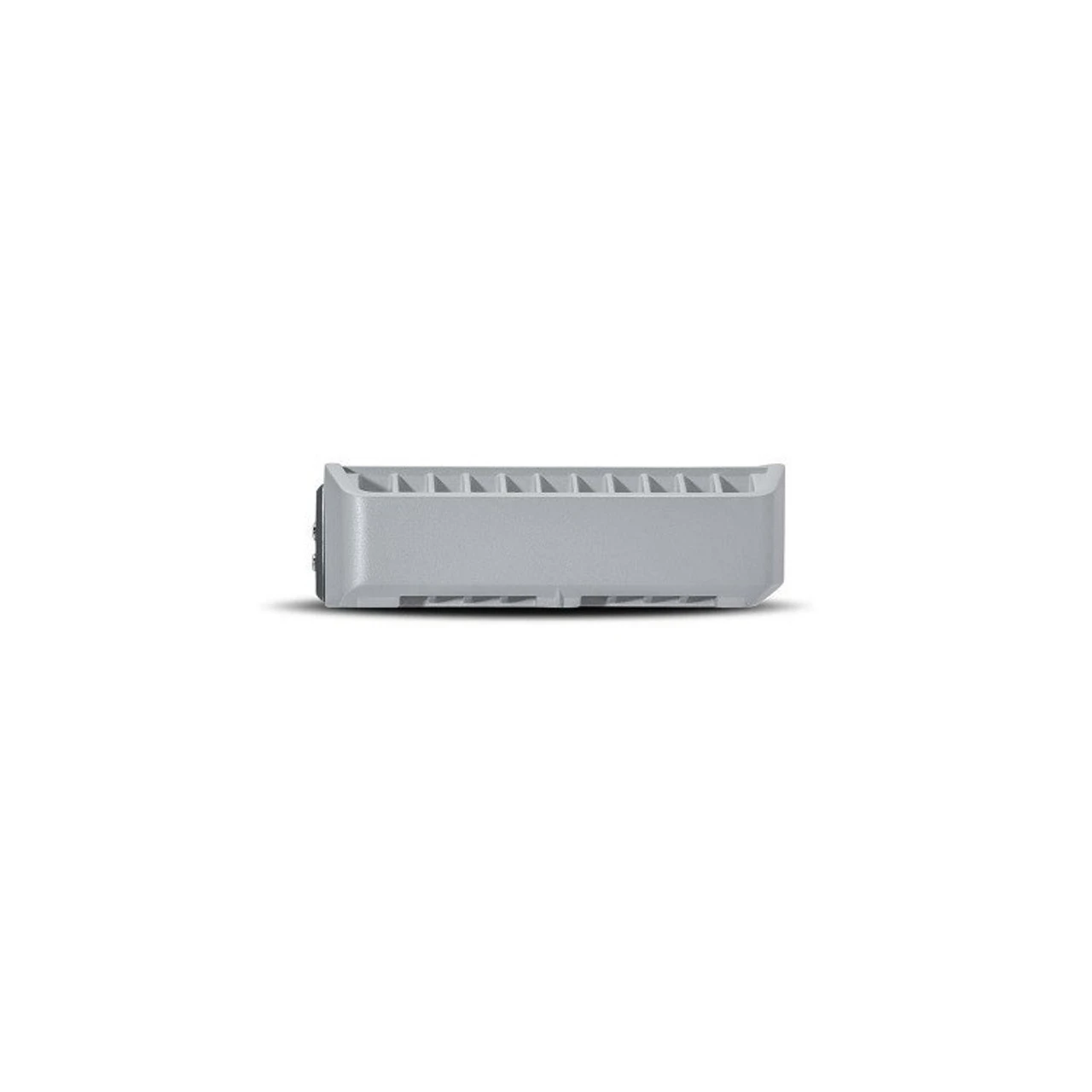

Polaris Ranger Punch Marine 1000 Watt Class-bd Mono Amplifier By Rockford

This is a 1000 Watt mono amplifier with high dynamic power using Class-bd technology and a conformal coated pc board designed for motorsport and marine applications.

With its super efficient Class-bd circuit topology, the PM1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

Punch Marine 1000 Watt Class-bd Mono Amplifier Features:

• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• RCA pass-thru outputs
• On-board Punch EQ with +18dB boost @ 45Hz
• Muted turn on
• Stealth top mounted control panel
• Cast aluminum heatsink
• Short circuit protection
• Over current protection
• Infrasonic filter
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware

Specs:

• Number of Channels – 1
• Total Power (Sum of Rated Power) – 1000 Watts
• Rated Power (RMS Continuous Power) – 300 Watts x 1 @ 4-Ohm, 500 Watts x 1 @ 2-Ohm, 1000 Watts x 1 @ 1-Ohm
• Dynamic Power (PVC/PowerCube®) – 491 Watts x 1 @ 4-Ohms, 874 Watts x 1 @ 2-Ohms, 1,430 Watts x 1 @ 1-Ohm
• Bridgeable – No
• Frequency Response – 20Hz to 250Hz +/- 1.0dB
• Input Sensitivity – 150 mV – 12 V
• Circuit Topology Class – Class BD
• Efficiency (average) – 86% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise) – 4-Ohm: <1.0%, 2-Ohm: <1.0%, 1-Ohm: <1.0%
• Signal Input – Hi/Low level: 1 RCA pair
• Signal Output – Hi/Low level: 1 RCA pair
• Tone Controls – Punch EQ2 Bass: 0dB to +18dB @ 45Hz
• Crossover Controls – Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth, Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth, All-Pass: No
• Remote Controls – Optional Punch Level Control (PLC2) Ready
• Visual Indicators – Power/Protect/Thermal LED, Input Clip LED3, Output Clip LED1,2,3, (LED Color Legend: 1BLUE: <0.5% THD, 2VIOLET: 1% THD, 3RED: 10%+ THD)
• Power Wire Gauge – 4 AWG
• Power Input Connector – Captive C-Clamp
• Speaker Wire Gauge – 8 AWG to 18 AWG
• Speaker Output Connector – Captive C-Clamp
• Cooling – Convection
• Heatsink
• Operating Voltage – 9 – 16 VDC
• Recommended Fuse (not included) – 140 A
• Average Current Draw (13.8V Music) – 65 A
• Max. Current Draw (13.8V Sinewave) – 130 A
• Suggested Alternator – 100 A
