Polaris Ranger XP 1000 Bundle – 4” Portals & 6” Big Lift By High Lifter

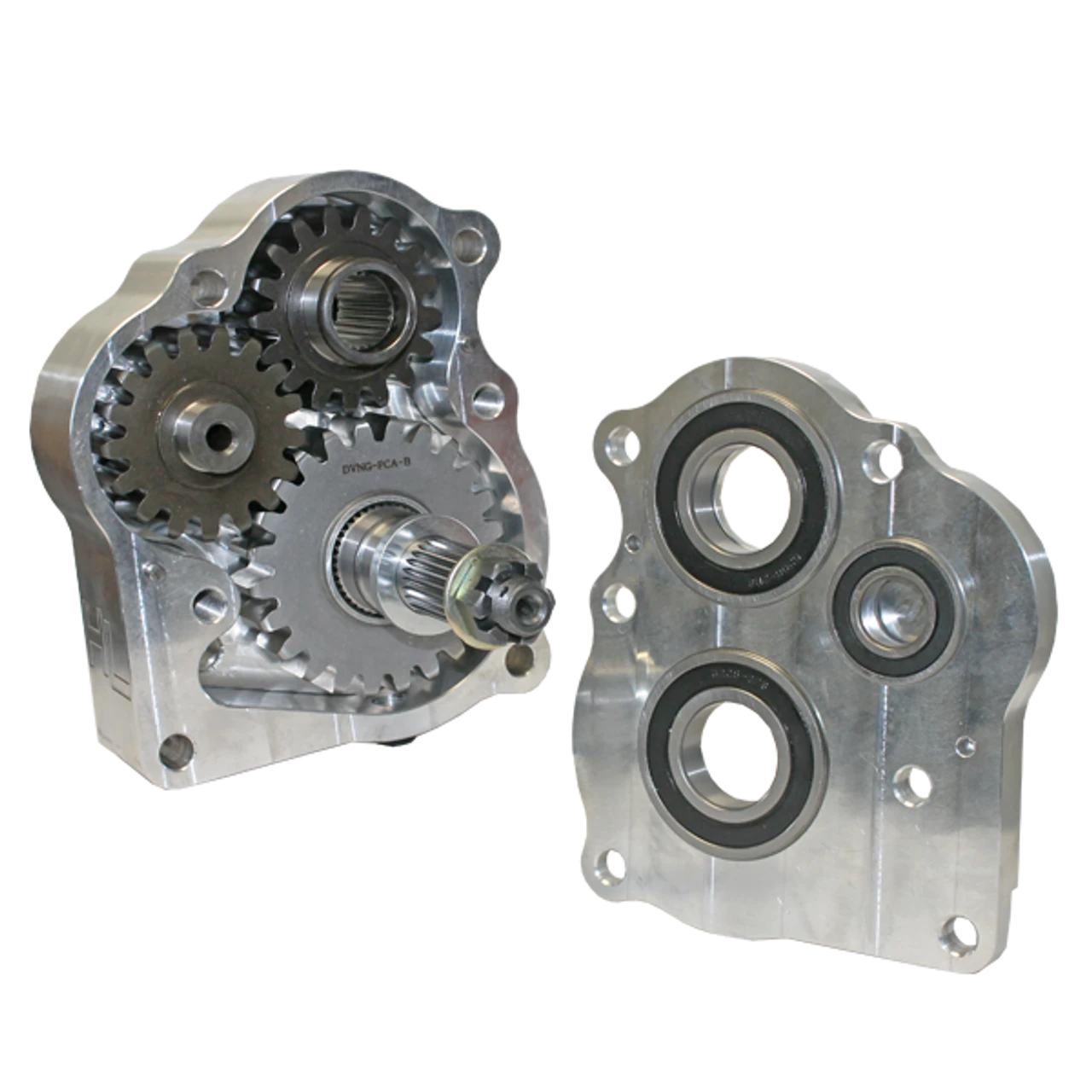

High Lifter Portal Gear Lift (Each kit includes 4 portal boxes)

4” Portals & 6” Big Lift Features:-

• 30% Gear Reduction – Gives you greater low-end torque for the trail
• Power on Tap – More power to the ground with less engine wind up
• Lift It Up – Gain additional 4” lift plus improved track width
• Built Tough – Built with 6061 Aluminum and designed for the toughest terrain you can throw at them
• Great Ride – Get all the benefits of added torque and better clearance without compromising factory ride or suspension angles
• Camber adjusting shims – Adding or removing shims can adjust camber by -1.25° to a +2°
• Perfect Machining – We stand behind the quality of our product 100%. The kits have been specially designed and machined to fit your ride perfectly
• Slotted Brake Rotors – Slots carved into the flat metal surface move gas, heat and water away from the surface of these rotors to improve braking performance

Wheel Requirements:

• 14″ or larger
• 14″ factory wheels must run 2″ spacer
• 14″ & 15″ can not exceed 4-1/2″ backspacing
• 16″ & larger can not exceed 5″ backspacing

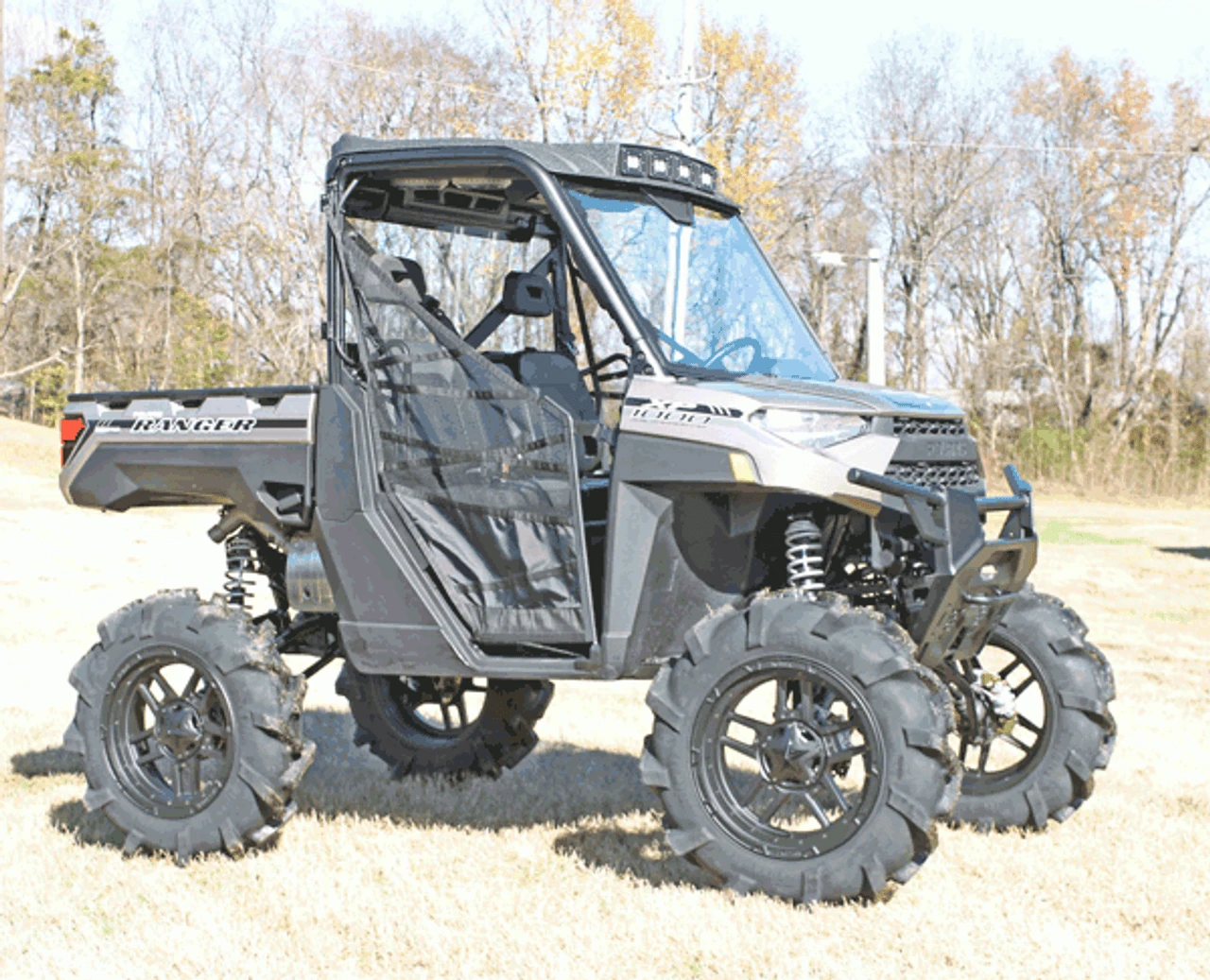

Polaris Ranger 1000 6″ Big Lift

• Bigger. Badder. BOLDER. Take your SXS to the edge with High Lifter’s 6″ Big Lift Kit. Increase your ground clearance and make room for larger tires to dig deep and ride hard in most any terrain. Our engineers and staff have spent over 20 years perfecting the ultimate ATV lift kit. The product? The Big Lift Kit is even easier to install with a bolt-on application that consistently measures truer over competitor products.
• One of the first areas our team tackled was the steering. Large lifts are known for being difficult to steer. Our solution was superior engineering of steering components and hub location geometry that that provides excellent steering and maneuverability on the trails.

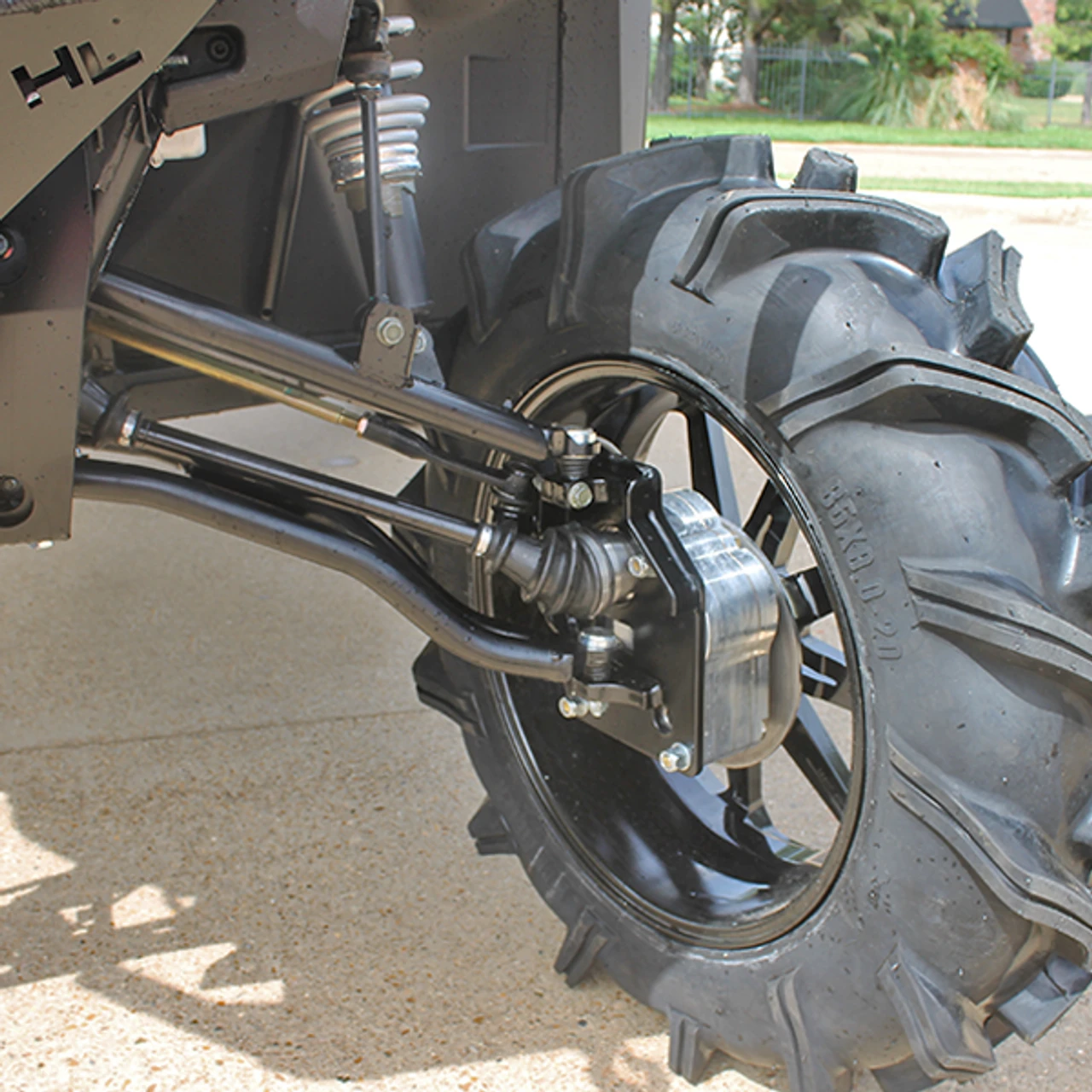

• The kit provides a true 6″+ of lift with the front Max Clearance Control Arms featuring a 2″ forward sweep for increased tire clearance and wheelbase. The rear Max Clearance Control Arms feature a 3″ rearward rake for increased tire clearance and wheelbase. Depending on your shock preload adjustment, additional lift can be gained.
• Each lift kit comes with four Outlaw DHT XL Axles that are custom tuned for use with the 6” High Lifter Lift Kit.

Outlaw DHT XL Axle:

• Dual heat treatments on the housings to improve toughness against shock loads without compromising bearing surfaces and long term life
• Oversized CV joint housings to increase strength
• Housings and bars made from 4340 Chromoly steel
• Puncture-resistant boots which are durable in high and low temperature climates
• Molybdenum disulfide, anti-oxidation, rustproof, and high-performance

This 6″ lift kit package includes the following components:

• Heavy duty laser cut front and rear upper lift/shock relocation brackets
• Eight custom heavy duty Max Clearance Control Arms crafted from 1 1/4″x.120 wall DOM tubing, heavy duty support gussets, and shock mounts
• Four Outlaw DHT XL Axles
• Custom tie rods with heim-style rod ends
• Custom rear brake line kit
• All required hardware
• Detailed instructions with step-by-step photos
